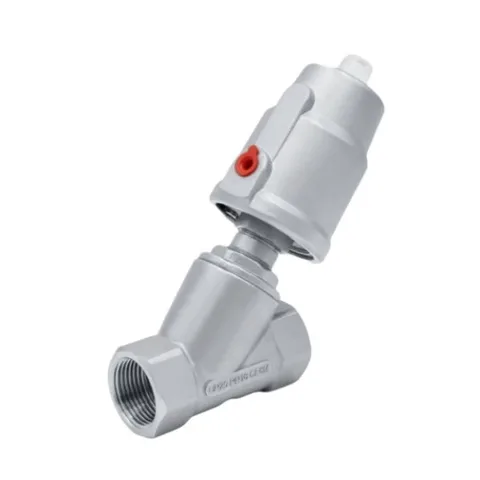

Pneumatic Female-Thread Angle Seat Valve, Stainless Steel Actuator
The stainless steel actuator on this female-threaded pneumatic angle-seat valve is inclined on a Y-shaped body, with female-threaded pipe connections at both ends.
Model | JOV-ASPS-33N |
|---|---|
Material | SS304, SS316 |
Connection | Female |
Actuation | Pneumatic |
Product overview
Product structure
The actuator housing is identified as stainless steel. The identified threaded ports use internal threads. A pneumatic actuator forms the operating assembly.
Selection checks
- Flow direction and operating principle
- Control mode and pneumatic interface
- Seat, seals and end connections
Prepare your enquiry
End connections · Size range · Material · Seal or gasket · Service fluid · Operating conditions · Quantity
Technical specifications
Materials & seals
- Material Options
- SS304, SS316
- Body Material Options
- 304, 316, 316L.
- Spool Material Options
- 304, 316, 316L.
Construction & finish
- Actuation
- Pneumatic
Product series
- Control modes
- normally close, normally open, double acting. (Product series)
- Actuator housing options
- stainless steel, polyamide. (Series actuator)
- Pneumatic accessory options
- limit switch, positioner, solenoid valve, filter relief-pressure valve, manual operating device. (Series accessory options)
- Seal configurations and media temperature
- PTFE:-30~+180 F46:-30~+220 °C (Seal materials and configurations)
- Ambient temperature
- -30~+80 °C (Product series)
- Nominal pressure
- 1.0~1.6 MPa (Product series)
- Spool material
- 304, 316, 316L. (Series spool)
- Seal material
- PTFE,F46. (Seal materials and configurations)
- Series nominal sizes
- DN15–DN100 (Angle seat valve series)
