Pneumatic Female-Thread Angle Seat Valve, Plastic Actuator

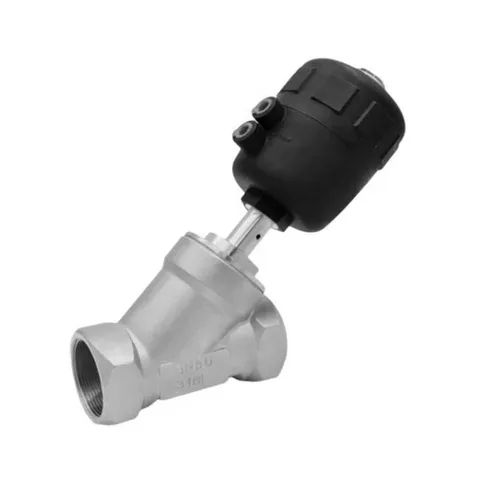

The plastic-actuator female-threaded pneumatic angle-seat valve has an inclined plastic actuator and female threads at both ends of its Y-shaped body.
Model | JOV-ASPP-33N |
|---|---|
Material | SS304, SS316 |
Connection | Female |
Actuation | Pneumatic |
Product overview
Product structure
The actuator housing is identified as plastic. The identified threaded ports use internal threads. A pneumatic actuator forms the operating assembly.
Selection checks
- Flow direction and operating principle
- Control mode and pneumatic interface
- Seat, seals and end connections
Prepare your enquiry
End connections · Size range · Material · Seal or gasket · Service fluid · Operating conditions · Quantity
Technical specifications
Materials & seals
- Material Options
- SS304, SS316
- Body Material Options
- 304, 316, 316l.
- Spool Material Options
- 304, 316, 316l.
Construction & finish
- Actuation
- Pneumatic
Product series
- Ambient temperature
- -30~+80 °C (Product series)
- Nominal pressure
- 1.0~1.6 MPa (Product series)
- Spool material
- 304, 316, 316l. (Series spool)
- Seal material
- PTFE, F46. (Seal materials and configurations)
- Series nominal sizes
- DN15–DN100 (Angle seat valve series)
