T-Type Inline Flanged Pneumatic Valve

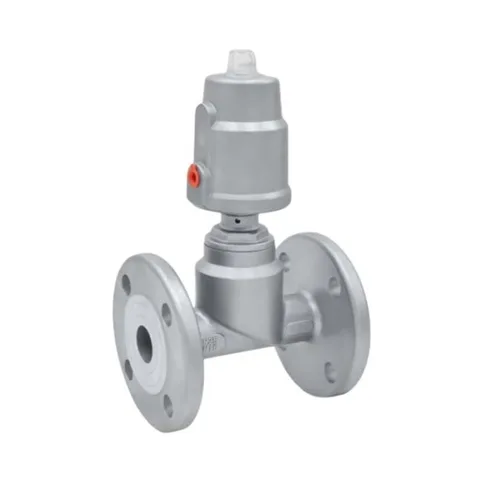

The T-type straight flanged pneumatic valve combines an upright actuator with a horizontal straight body and flanged interfaces at both ends.
Material | SS304, SS316 |
|---|---|
Connection | Flange |
Actuation | Pneumatic |
Product overview
Product structure
The T-type body carries the fluid connections beneath the pneumatic operating assembly. The flange interfaces are distinct from the actuator mounting.
T-Type Inline Flanged Pneumatic Valve. An angle seat valve has an inclined valve body and an operating assembly. Match the stated operating principle and control interface to the installation.
Selection checks
- Flow direction and operating principle
- Control mode and pneumatic interface
- Seat, seals and end connections
Prepare your enquiry
End connections · Size range · Material · Seal or gasket · Service fluid · Operating conditions · Quantity
Technical specifications
Materials & seals
- Material Options
- SS304, SS316
- Body Material Options
- 304, 316, 316L.
- Spool Material Options
- 304, 316, 316L.
- Cylinder Material Options
- stainless steel, polyamide.
Connections & dimensions
- Connection
- Flange
Construction & finish
- Actuation
- Pneumatic
Product series
- Control modes
- normally close, normally open, double acting. (Product series)
- Actuator housing options
- stainless steel, polyamide. (Series actuator)
- Pneumatic accessory options
- limit switch, positioner, solenoid valve, filter relief-pressure valve, manual operating device. (Series accessory options)
- Seal configurations and media temperature
- PTFE:-30~+180 F46:-30~+220 °C (Seal materials and configurations)
- Ambient temperature
- -30~+80 °C (Product series)
- Nominal pressure
- 1.0~1.6 MPa (Product series)
- Spool material
- 304, 316, 316L. (Series spool)
- Seal material
- PTFE,F46. (Seal materials and configurations)
- Series nominal sizes
- DN15–DN100 (Angle seat valve series)
