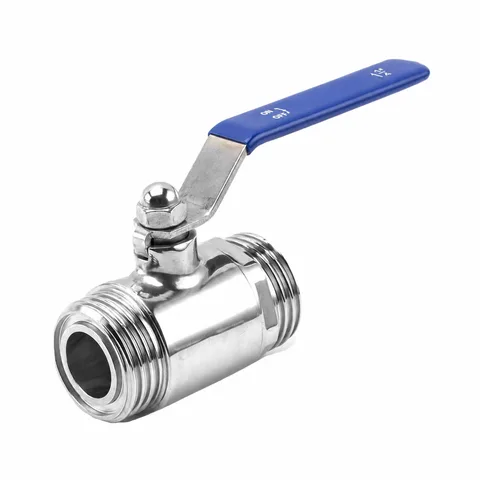

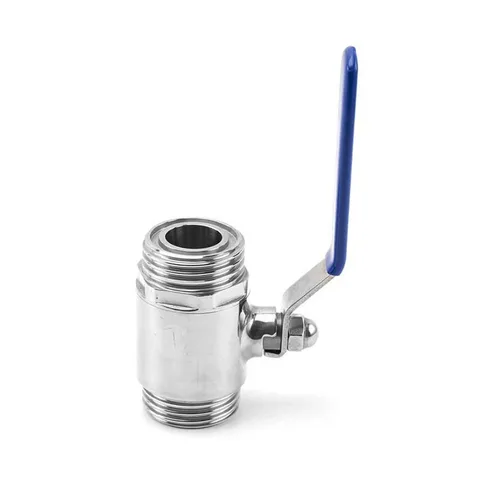

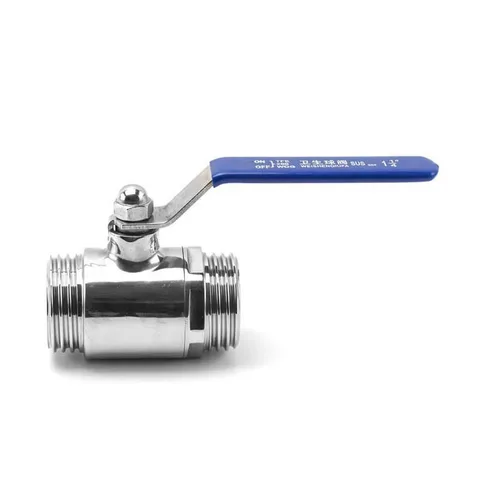

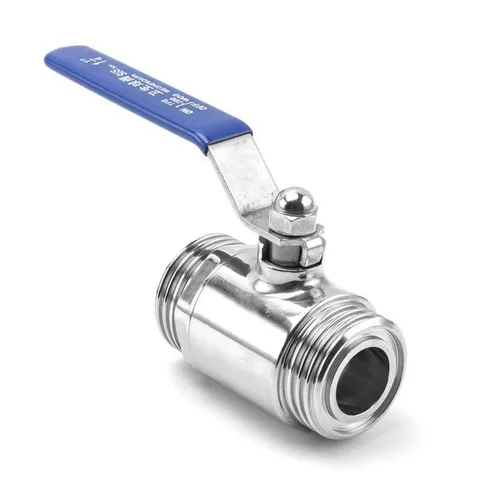

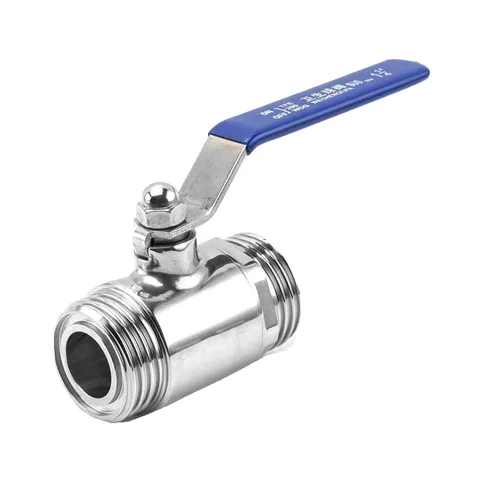

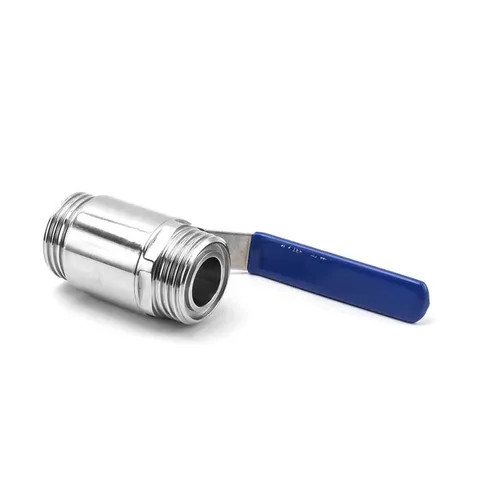

Sanitary Stainless Steel Male-Threaded Ball Valve
Sanitary Stainless Steel Male-Threaded Ball Valve controls a flow path using a rotating ball.
Material | SS304/SS316L |
|---|---|
Connection | Thread |
Specification | 3/4"-4" |
Product overview
Product structure
The identified threaded ports use external threads.
Selection checks
- Port arrangement and flow path
- End connections and bore dimensions
- Seat, seal and actuator requirements
Prepare your enquiry
End connections · Size range · Material · Seal or gasket · Service fluid · Operating conditions · Quantity
Technical specifications
Materials & seals
- Material Options
- AISI304, AISI316L
Dimension data and symbol key
Dimension series table

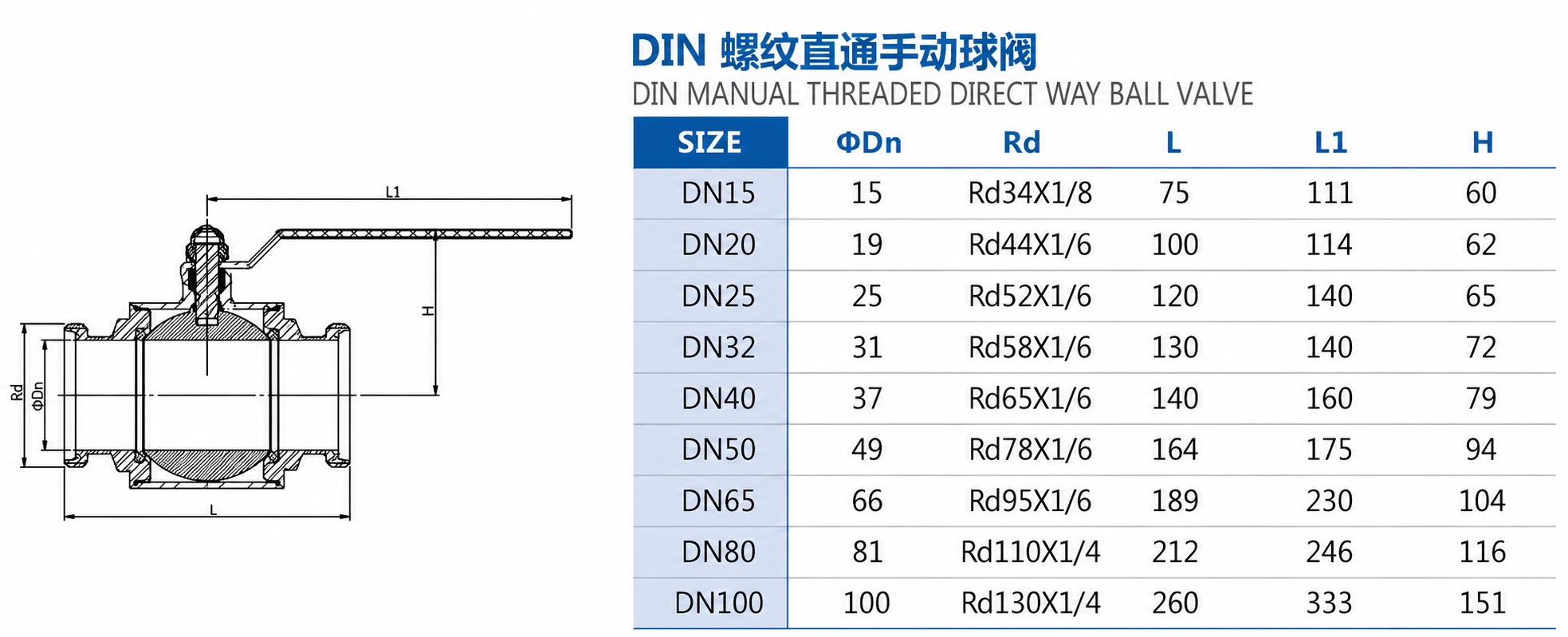

For the structure series and interfaces listed in this table; dimension symbols follow the corresponding diagram.
The table does not label a common unit. Values are retained as printed; compare them with the accompanying drawing.
SIZE | ΦDn | Rd | L | L1 | H |
|---|---|---|---|---|---|
DN15 | 15 | Rd34X1/8 | 75 | 111 | 60 |
DN20 | 19 | Rd44X1/6 | 100 | 114 | 62 |
DN25 | 25 | Rd52X1/6 | 120 | 140 | 65 |
DN32 | 31 | Rd58X1/6 | 130 | 140 | 72 |
DN40 | 37 | Rd65X1/6 | 140 | 160 | 79 |
DN50 | 49 | Rd78X1/6 | 164 | 175 | 94 |
DN65 | 66 | Rd95X1/6 | 189 | 230 | 104 |
DN80 | 81 | Rd110X1/4 | 212 | 246 | 116 |
DN100 | 100 | Rd130X1/4 | 260 | 333 | 151 |
