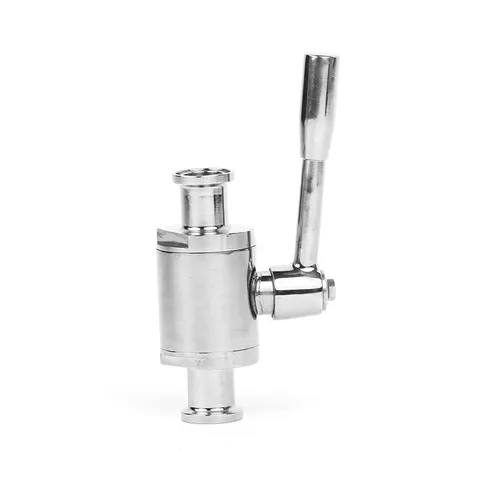

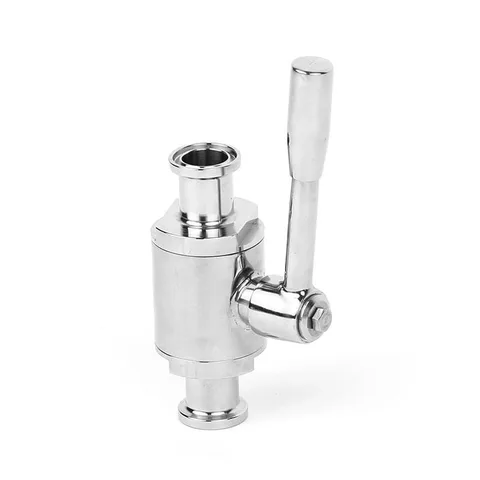

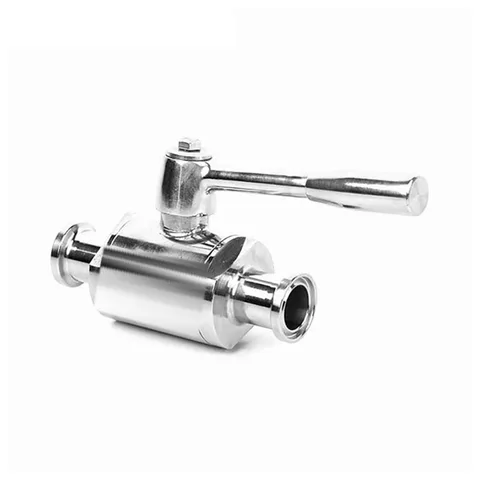

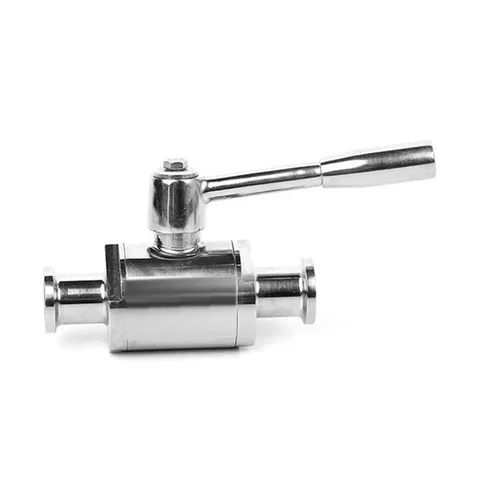

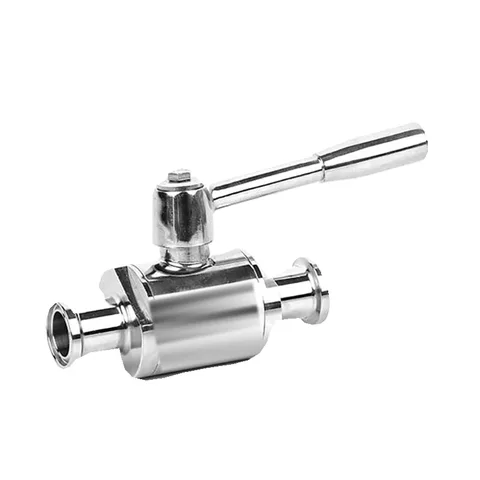

Sanitary Tri-Clamp Ball Valve
The clamp ball valve combines a long top operating rod and clamp interfaces for mating piping.
Material | SS304/SS316L |
|---|---|
Connection | Clamped |
Specification | 3/4"-4" |
Product overview
Product structure
A compact two-piece valve body with a manual lever and Tri-Clamp ferrule connections. Match the ferrule profile and specify the valve and seal requirements for the application.
Selection checks
- Port arrangement and flow path
- End connections and bore dimensions
- Seat, seal and actuator requirements
Prepare your enquiry
End connections · Size range · Material · Seal or gasket · Service fluid · Operating conditions · Quantity

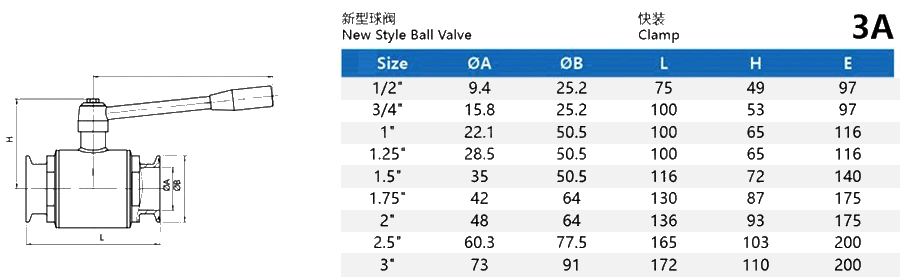

Technical specifications
Materials & seals
- Material Options
- AISI304, AISI316L
- Material Options
- SS304 / SS316L
Need a different size, connection or document?
Discuss your requirements
