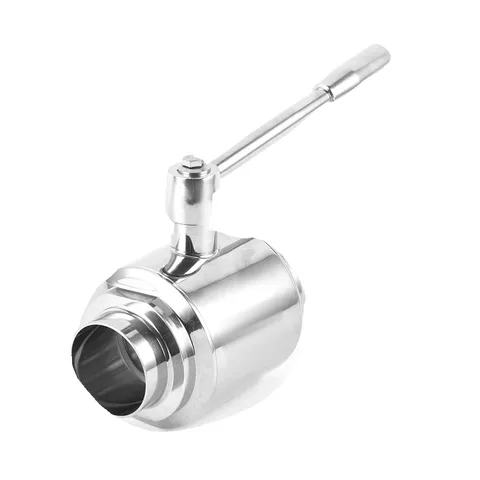

Compact 2-Piece Butt-Weld Ball Valve
The compact two-piece weld-end ball valve uses a long operating rod to control the ball between welding pipe ends.
Material | SS304/SS316L |
|---|---|
Connection | Welding |
Specification | 1"-6" |
Product overview
Product structure
A compact two-piece ball valve with butt-weld ends. Confirm the tube dimensions, end preparation and handle clearance before defining the pipe assembly.
Selection checks
- Port arrangement and flow path
- End connections and bore dimensions
- Seat, seal and actuator requirements
Prepare your enquiry
End connections · Size range · Material · Seal or gasket · Service fluid · Operating conditions · Quantity
Technical specifications
Materials & seals
- Material Options
- AISI304, AISI316L

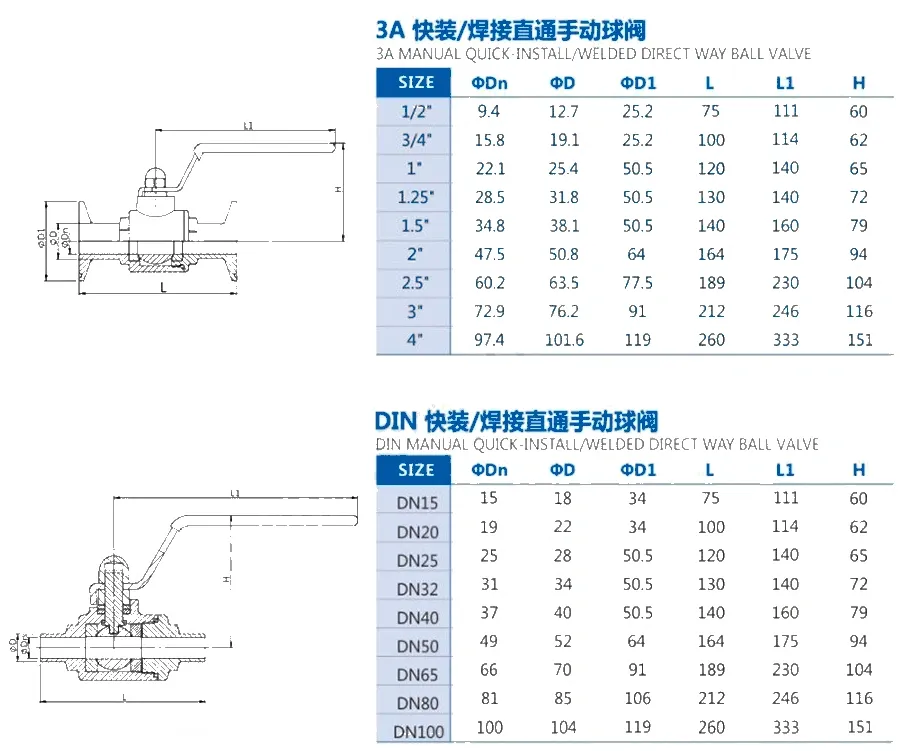

Connections & dimensions
- Connection
- Butt Welding
- Connection
- Weld
Need a different size, connection or document?
Discuss your requirements
