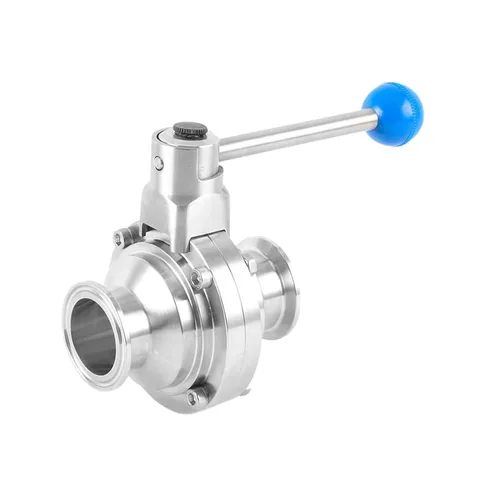

Tri-Clamp Butterfly Ball Valve Hybrid
The butterfly-type ball valve combines a short main body and a top operating rod with clamp pipe interfaces.
Material | SS304/SS316L |
|---|---|
Connection | Welding/Thread/Clamped |
Type | Butterfly Type |
Specification | 1/2"-4" |
Product overview
Product structure
Sanitary Tri-Clamp butterfly ball valve manufactured in 304/316L stainless steel with thin-profile valve body and clamping ends for flow control and positive shutoff in hygienic process piping systems. Combines compact face-to-face dimensions with full-flow characteristics.
Selection checks
- Port arrangement and flow path
- End connections and bore dimensions
- Seat, seal and actuator requirements
Prepare your enquiry
End connections · Size range · Material · Seal or gasket · Service fluid · Operating conditions · Quantity

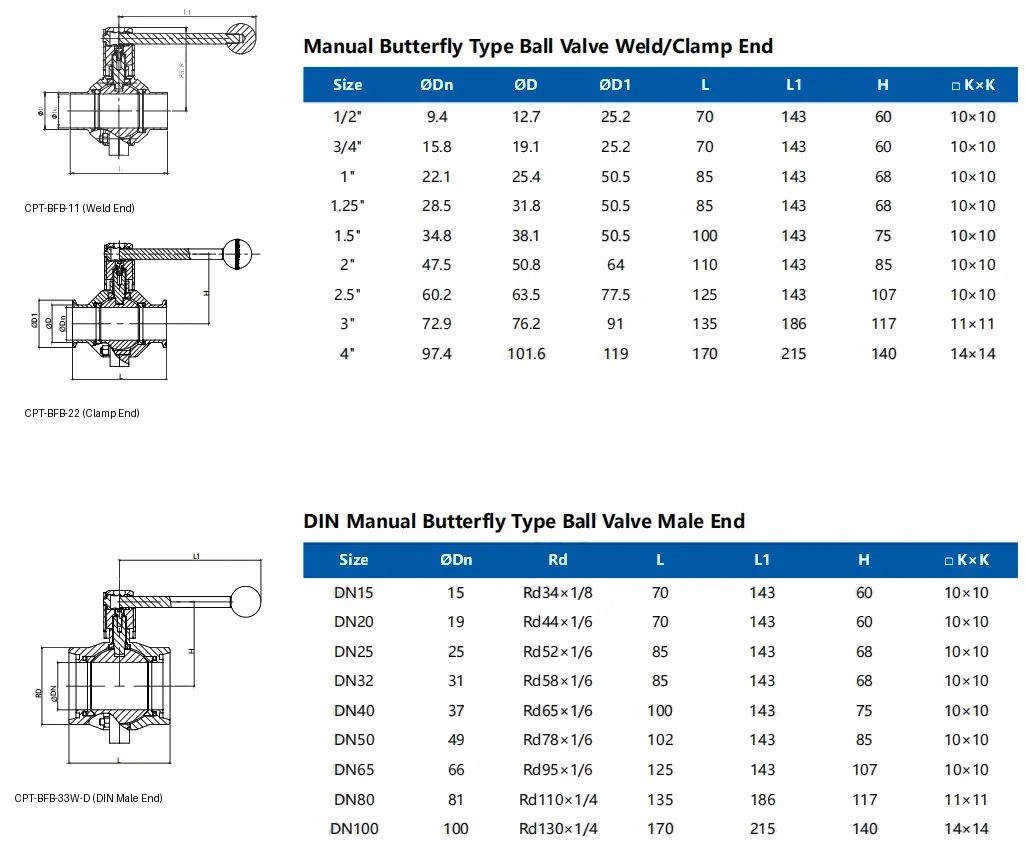

Technical specifications
Materials & seals
- Material Options
- AISI304, AISI316L
