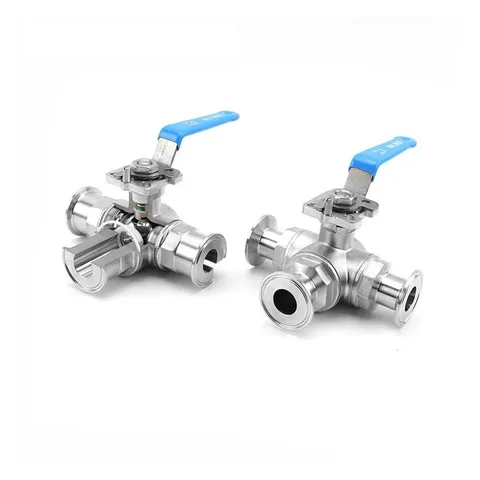

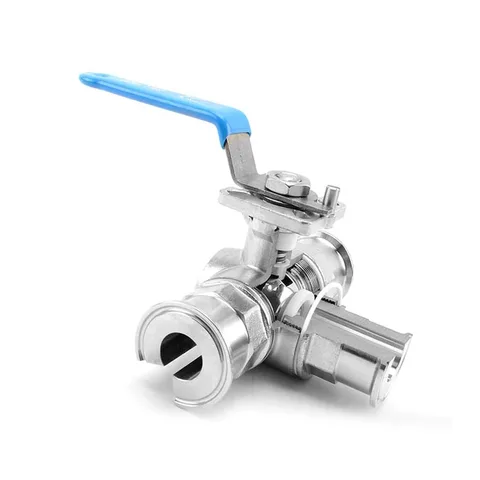

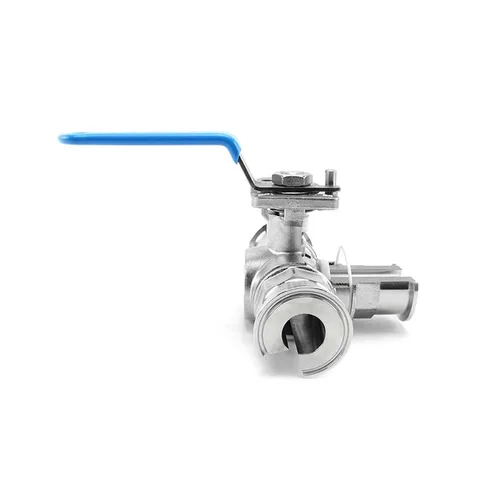

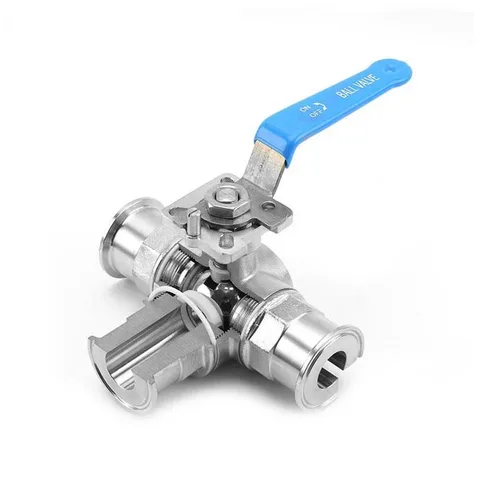

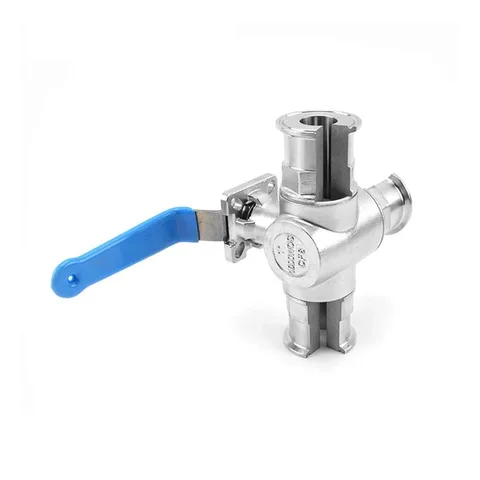

Three-Piece Manual Three-Way Tri-Clamp Ball Valve
The manual three-piece three-way clamp ball valve combines three pipe interfaces, a lever and a top mounting pad.
Material | SS304/SS316L |
|---|---|
Connection | Clamped |
Type | T Type/L Type |
Specification | 3/4"-4" |
Product overview
Product structure

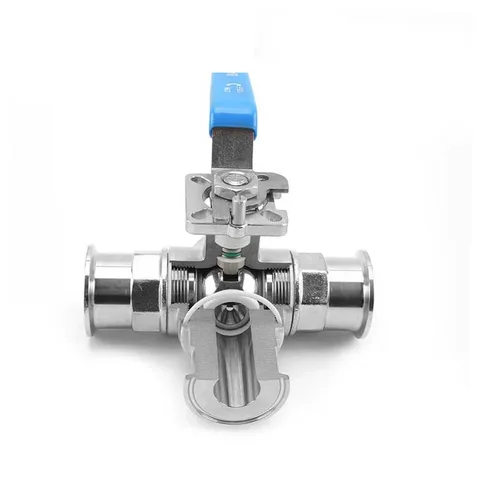

A Tri-Clamp joint connects mating ferrules with a separate clamp and gasket. The body is arranged in three pieces. Three ports form the valve flow arrangement.
Prepare your enquiry
End connections · Size range · Material · Seal or gasket · Service fluid · Operating conditions · Quantity
Technical specifications
Materials & seals
- Material Options
- AISI304, AISI316L
Connections & dimensions
- Connection
- Clamp
- Connection
- Tri-Clamp
Need a different size, connection or document?
Discuss your requirements
