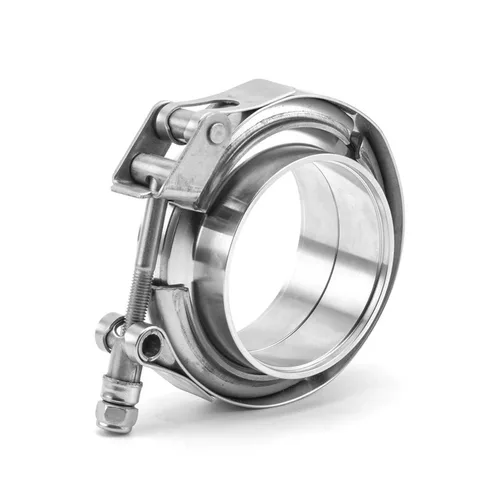

V Band Clamp and Mating Flange Assembly
A V-band joint assembly with an external clamp and a pair of mating male and female flanges.
Model | VBC-1 |
|---|---|
Material | SS304 |
Connection | Clamp |
Specification | 1.5"~6" |
Shape | Round |
Product overview
Clamp and mating flanges
The assembly combines an external V-band clamp with a pair of mating male and female flanges. The flange profiles form the joint interface; the band surrounds these profiles and is tightened with its bolt fastener.

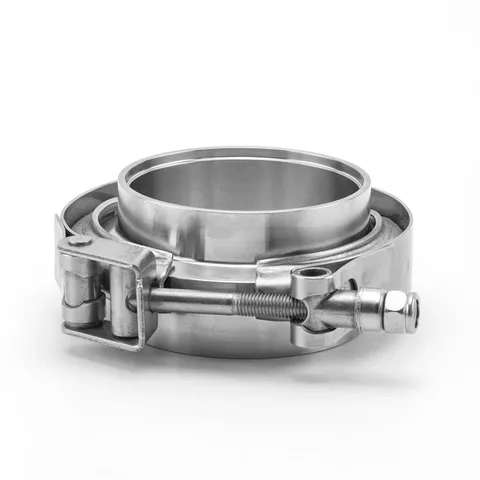

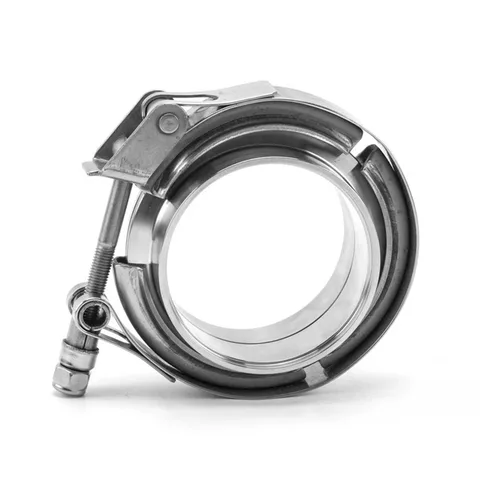

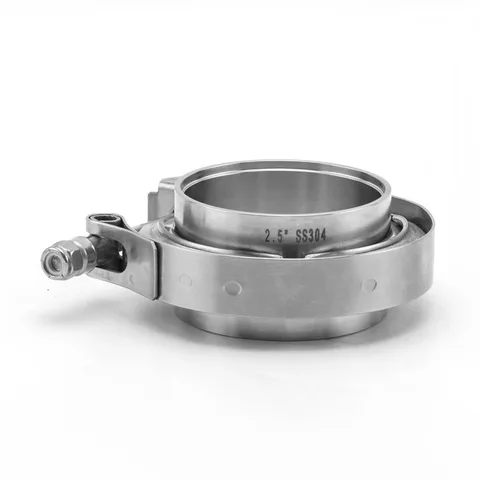

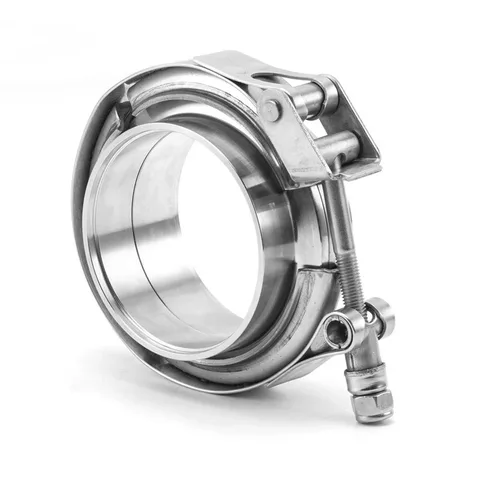

Front, reverse and side views show the flange openings, clamp band and fastener position.
Connection and access
Releasing the external clamp allows the flange joint to be separated for repeated disassembly and service access. Installation requires access to the band and fastener, with the mating flange profile and dimensions checked for the selected pair.
Selection checks
- Mating flange outside diameter and profile
- Clamp construction and available installation clearance
- Assembly installation space and tool access
Prepare your enquiry
End connections · Size range · Material · Seal or gasket · Service fluid · Operating conditions · Quantity
Technical specifications
Materials & seals
- Material Options
- SS304
Connections & dimensions
- Connection
- Clamp
Need a different size, connection or document?
Discuss your requirements
