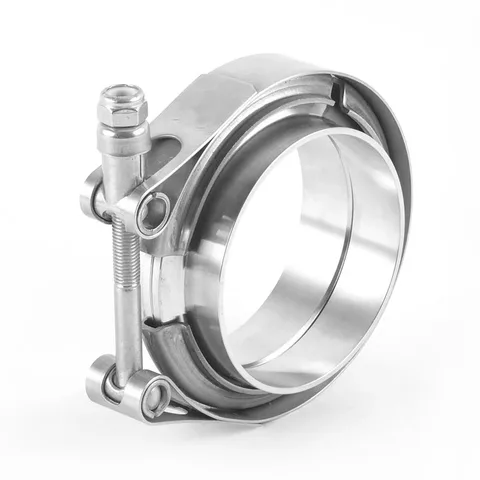

Standard V-Band Clamp & Flange Assembly — product view

Standard V-Band Clamp & Flange Assembly

The illustrated standard V-band assembly combines a threaded-closure clamp with mating flanges.

Material

SS304

Connection

Clamp

Specification

1.5"~6"

Shape

Round

Request a quote View specifications

Construction and mating components

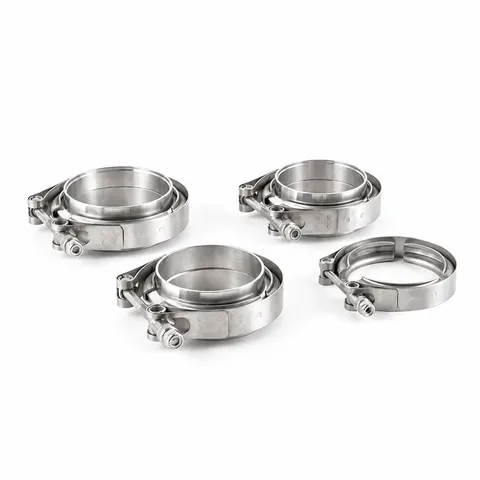

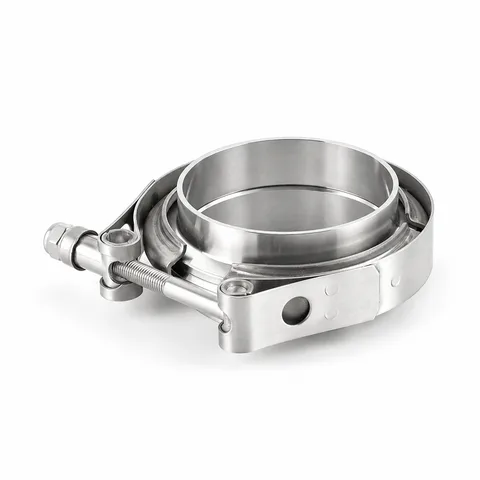

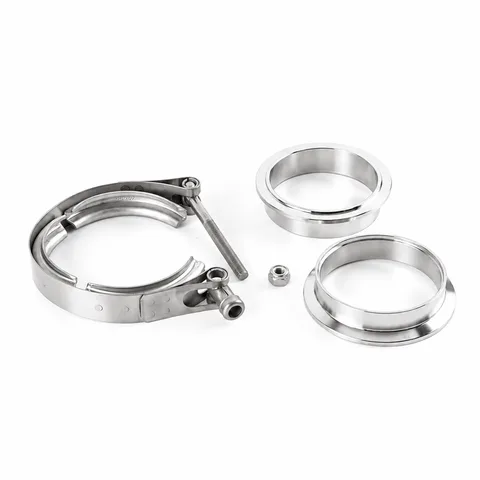

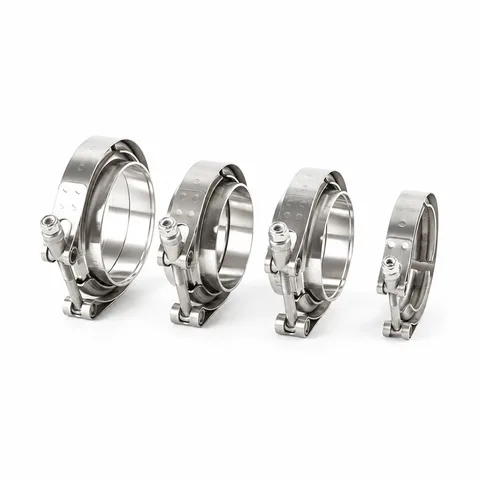

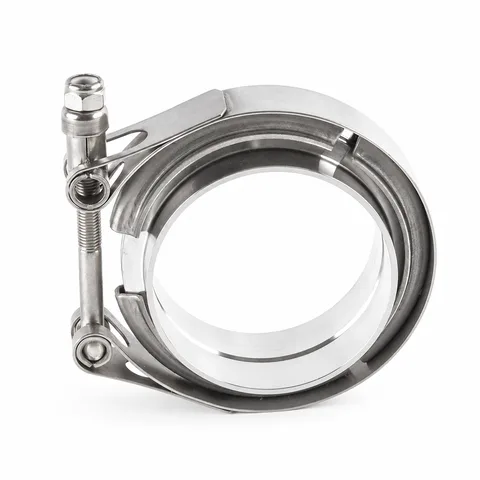

The V-band joint closes a V-profile band around the edges of mating flanges. Clamp-only hardware, flange pairs and complete clamp-and-flange assemblies are separate entries. Exploded and assembled photographs show the corresponding components; match the selected flange profile and dimensions for the joint.

Applications and servicing

V-band joints are used on pumps, engines, exhaust systems, filters and process equipment. Opening the band releases the mating flange assembly, providing access when equipment needs regular servicing. Select clamp-only hardware, flange rings or a complete assembly to match the required joint.

Need a different size, connection or document?

Discuss your requirements
LET’S TALK ABOUT YOUR PROJECT

Discuss your product requirements

Share the size, connection, quantity and delivery country. Include any specific requirements for this product.
