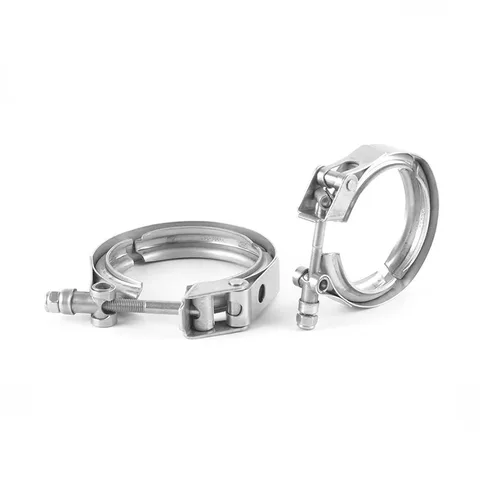

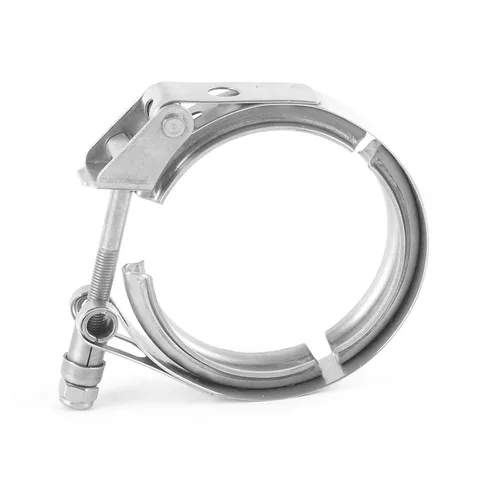

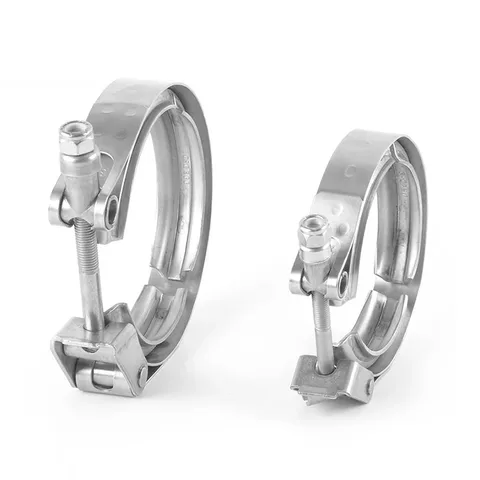

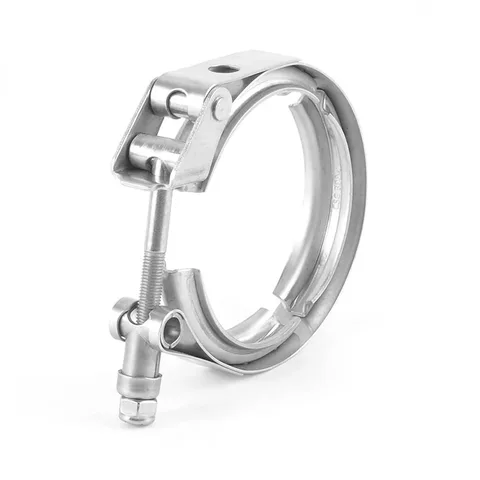

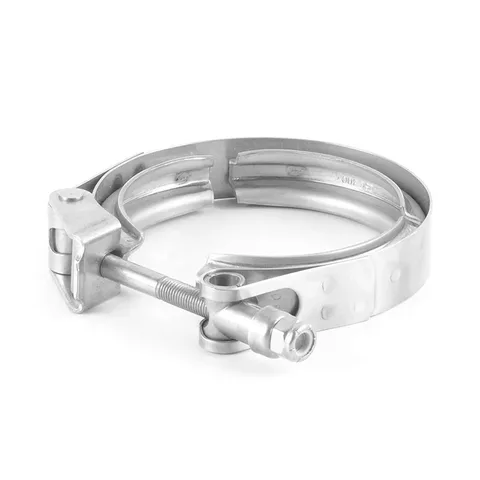

V Band Clamp
The V-band clamp surrounds mating flange profiles with an external band tightened by a bolt.
Model | JOC-VB002 |
|---|---|
Material | SS304, SS316L |
Connection | Clamp |
Specification | 1.5"~6" |
Shape | Round |
Product overview
Product structure
The V-shaped band engages the outer profiles of the mating flanges. This component is the clamp itself, rather than a complete flange-and-clamp assembly.
V Band Clamp. A clamp secures a mating joint. Select the clamp together with the flange or ferrule profile and the rest of the connection assembly.
Selection checks
- Mating flange outside diameter and profile
- Clamp construction and available installation clearance
- Separate gasket or centring components required by the joint
Prepare your enquiry
End connections · Size range · Material · Seal or gasket · Service fluid · Operating conditions · Quantity
Technical specifications
Materials & seals
- Material Options
- SS304
- Material Options
- SS304, SS316L
Connections & dimensions
- Connection
- Clamp
Dimension data and symbol key
CS52SV Series V-Band Clamp & Flange Dimension Table
For the CS52SV-150-X to CS52SV-600-X series listed in this table; English (in) and Metric (mm) columns preserve printed values and blank underlying cells from merged bolt spans. Applies to the illustrated clamp-and-flange assembly; it does not establish dimensions of the clamp alone.
The table does not label a common unit. Values are retained as printed; compare them with the accompanying drawing.
Part No. | Tube O.D. (in) | Nominal Dia. (in) | Flange O.D. (in) | Bolt Size (in col.) | Tube O.D. (mm) | Nominal Dia. (mm) | Flange O.D. (mm) | Bolt Size (mm col.) |
|---|---|---|---|---|---|---|---|---|
CS52SV-150-X | 1.5 | 2.37 | 2.24 | 1/4-28UNF-L68.5 | 38.7 | 60 | 56.9 | 1/4-28UNF-L68.5 |
CS52SV-175-X | 1.75 | 2.57 | 2.45 | 44.7 | 65.4 | 62.2 | ||
CS52SV-200-X | 2 | 2.87 | 2.74 | 50.8 | 72.8 | 69.6 | ||
CS52SV-225-X | 2.25 | 3.11 | 2.99 | 57.4 | 79.1 | 75.9 | ||
CS52SV-236-X | 2.36 | 3.22 | 3.09 | 60 | 81.7 | 78.5 | ||
CS52SV-250-X | 2.5 | 3.37 | 3.24 | 1/4-28UNF-L68.5;5/16-24UNF-88.9 | 63.5 | 85.5 | 82.3 | 1/4-28UNF-L68.5;5/16-24UNF-88.9 |
CS52SV-275-X | 2.75 | 3.61 | 3.49 | 1/4-28UNF-L68.5;5/16-24UNF- | 70.1 | 91.8 | 88.6 | 1/4-28UNF-L68.5;5/16-24UNF-88.9 |
CS52SV-300-X | 3 | 3.87 | 3.74 | 5/16-24UNF-88.9 | 76.2 | 98.2 | 95 | 5/16-24UNF-88.9 |
CS52SV-325-X | 3.25 | 4.11 | 3.99 | 82.8 | 104.2 | 101.3 | ||
CS52SV-350-X | 3.5 | 4.37 | 4.24 | 88.9 | 110.9 | 107.7 | ||
CS52SV-400-X | 4 | 4.87 | 4.74 | 101.6 | 123.5 | 120.4 | ||
CS52SV-450-X | 4.5 | 5.37 | 5.24 | 114.3 | 136.3 | 133.1 | ||
CS52SV-500-X | 5 | 5.87 | 5.74 | 127 | 149 | 145.8 | ||
CS52SV-550-X | 5.5 | 6.37 | 6.24 | 139.7 | 161.6 | 158.5 | ||
CS52SV-600-X | 6 | 6.87 | 6.74 | 152.4 | 174.4 | 171.2 |
