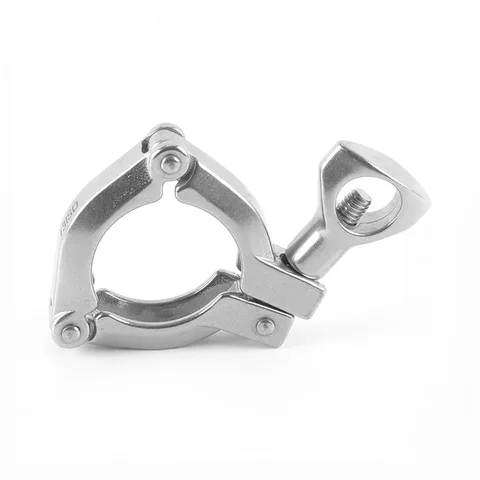

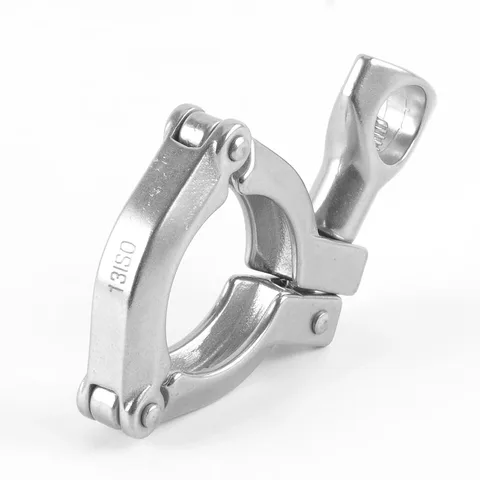

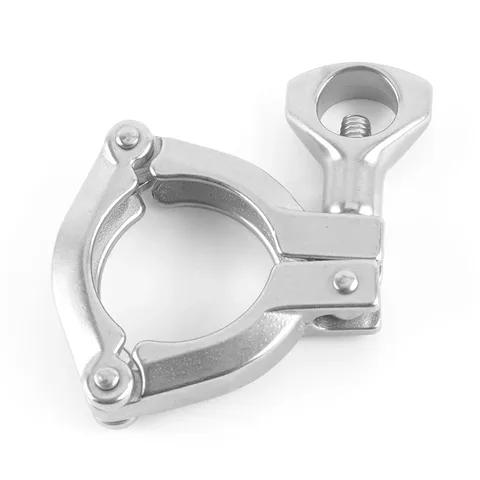

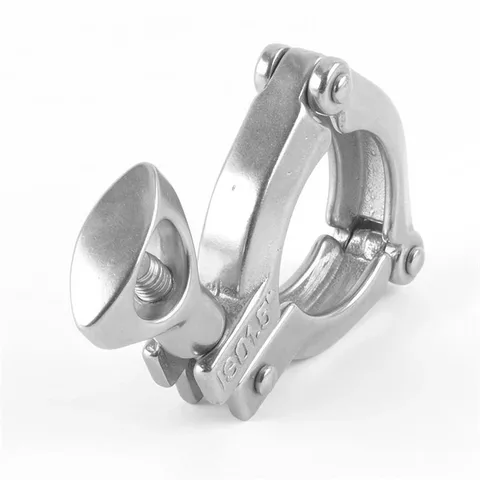

ISO-3P Three-Piece Clamp
The ISO-3P clamp uses three curved body segments with segment joints, surrounding the mating connection profiles and tightening through its closure.
Model | 13MHH-14 |
|---|---|
Material | SS304, SS316L |
Connection | Clamp |
Body construction | Three-piece |
Specification | 1"-24" |
Shape | Round |
Product overview
Product structure
The segmented clamp surrounds the joint and is closed by its fastening hardware. The clamp is distinct from the ferrules and any gasket used in the assembled connection.
A three-piece ISO-3P clamp for securing a mating ferrule connection. Match the clamp to the ferrule profile and flange diameter. The gasket and ferrules belong to the connection assembly and must be specified separately.
Selection checks
- Mating flange outside diameter and profile
- Clamp construction and available installation clearance
- Separate gasket or centring components required by the joint
Prepare your enquiry
End connections · Size range · Material · Seal or gasket · Service fluid · Operating conditions · Quantity
Technical specifications
Connections & dimensions
- Connection
- Clamp
Need a different size, connection or document?
Discuss your requirements
