I-Line Two-Bolt Clamp
The I-Line two-bolt clamp tightens through bolts on both sides and is used with the mating profiles of an I-Line joint.
Material | SS304 |
|---|---|
Connection | Tri-clamp |
Specification | 1"~8" |
Product overview
Product structure

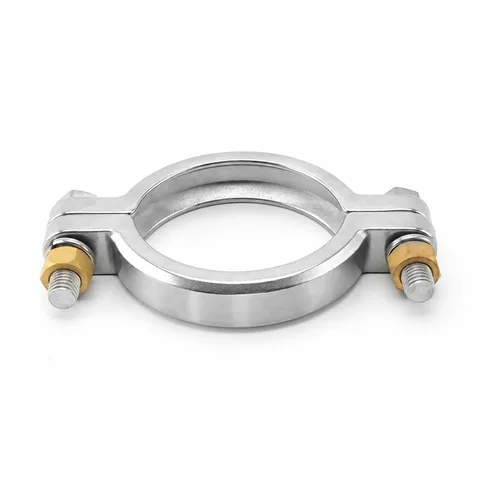

Two opposed bolts close the clamp halves around the mating connection. The clamp hardware is separate from the liner and sealing parts of an I-Line joint.

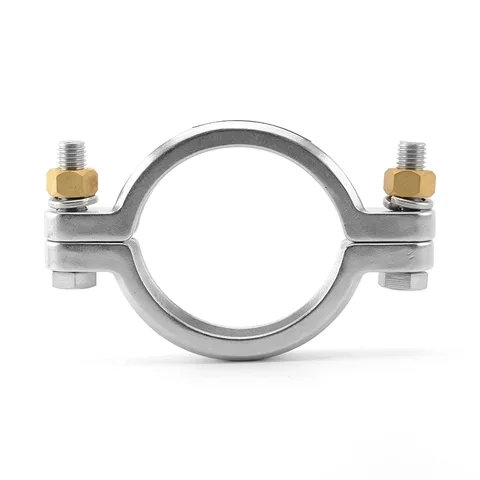

I-Line Two-Bolt Clamp (13IU / 13IS Components). A clamp secures a mating joint. Select the clamp together with the flange or ferrule profile and the rest of the connection assembly.
Selection checks
- Mating flange outside diameter and profile
- Clamp construction and available installation clearance
- Separate gasket or centring components required by the joint
Prepare your enquiry
End connections · Size range · Material · Seal or gasket · Service fluid · Operating conditions · Quantity
