13IS I-Line Clamp

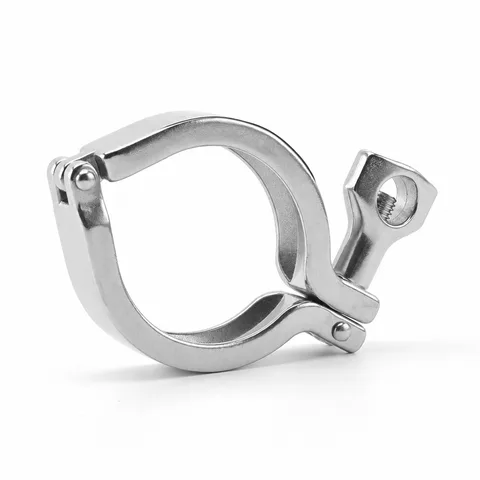

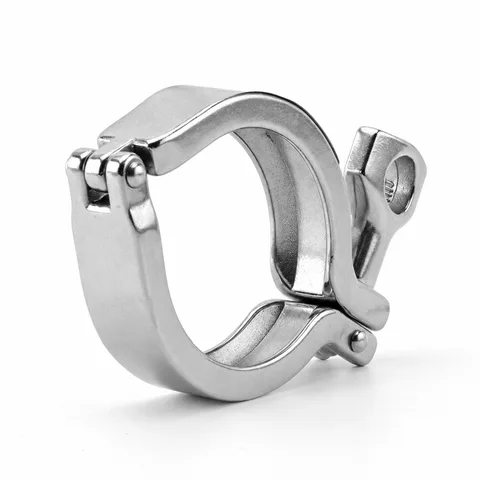

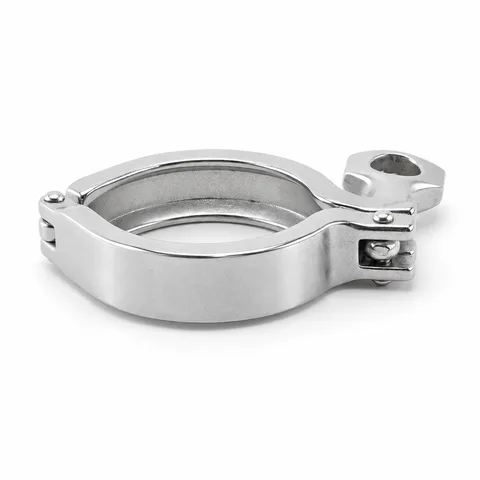

The 13IS I-Line clamp retains its illustrated hinged body and threaded closure end.
Material | SS304 |
|---|---|
Connection | Tri-clamp |
Specification | 1"~8" |
Product overview
Construction and interfaces

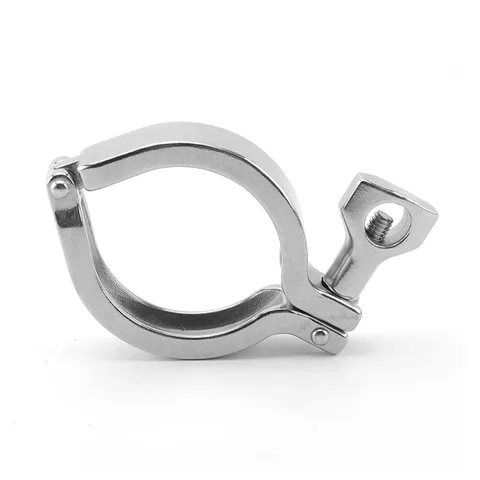

13IS I-Line Clamp: The 13IS I-Line clamp retains its illustrated hinged body and threaded closure end.
I-Line joint assembly
The I-Line joint combines interlocking flat-face ferrules, a flat gasket and an external clamp. The ferrule faces locate the gasket while the clamp closes around the joint. Select the I-Line ferrule and gasket profile together.
Technical specifications
Product series
- Clamping interface
- I-Line (Product series)
Construction & finish
- Manufacturing process
- CNC Lathe Machine (Body surface and manufacture)
- Surface roughness
- Ra≤0.8 (Body surface and manufacture)
单销卡箍13IS / Single pin clamp 13IS
Applies to the 13IS I-Line Clamp series dimensional reference (chart covers 1~1 1/2"–8", while overview highlights 1"~8"); verify specific end connection standard and mating line dimensions when ordering.
| SIZE | A | Unlabelled column 3 |
|---|---|---|
| 1~1 1/2" | 54.0 | |
| 2" | 71.4 | |
| 2 1/2" | 88.9 | |
| 3" | 103.2 | |
| 4" | 127.0 | |
| 6" | 195.3 | |
| 8" | 246.0 |
