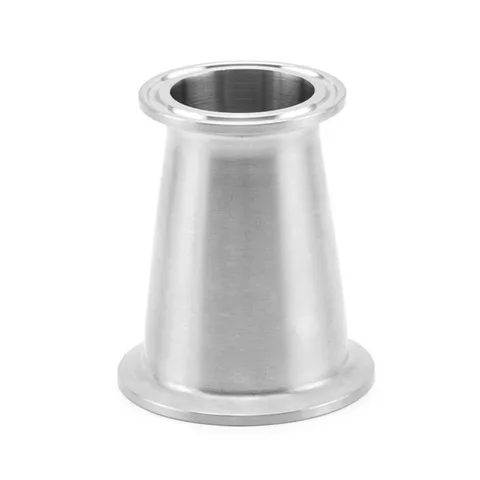

Tri-Clamp Concentric Reducer
The concentric clamp reducer joins different diameters through a coaxial tapered section with ferrule ends.
Material | SS304, SS316L |
|---|---|
Connection | Tri-clamp End |
Specification | 1"/1.5"-3"/4" |
Shape | Reducer |
Standard or Nonstandard | 3A |
Product overview
Product structure

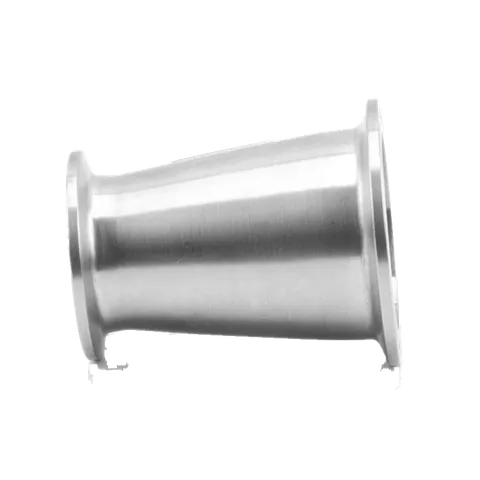

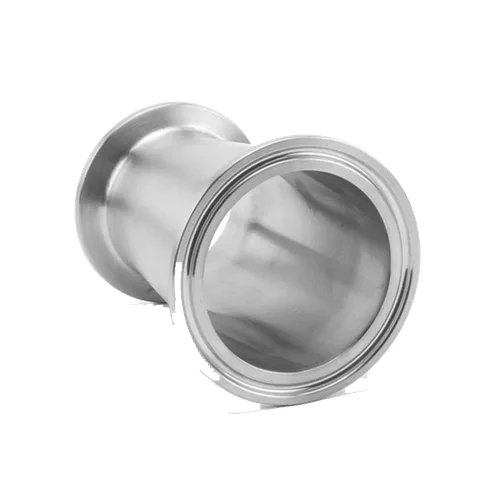

The two ends share a common centerline. A Tri-Clamp joint connects mating ferrules with a separate clamp and gasket.
Selection checks
- Large and small end dimensions
- Concentric or eccentric geometry
- Transition length, wall thickness and end preparation
Prepare your enquiry
End connections · Size range · Material · Seal or gasket · Service fluid · Operating conditions · Quantity
Technical specifications
Materials & seals
- Material Options
- AISI304, AISI316L
- Material Options
- SS304, SS316L
Connections & dimensions
- Connection
- Tri-clamp End
Need a different size, connection or document?
Discuss your requirements
