Heavy-Profile Single-Pin Tri-Clamp
Heavy-Profile Single-Pin Tri-Clamp fastens the mating parts of a clamp connection.
Material | SS304, SS316L |
|---|---|
Connection | Tri-clamp End |
Specification | 1/2"-12", DN10-DN300 |
Shape | Round |
Product overview
Product structure

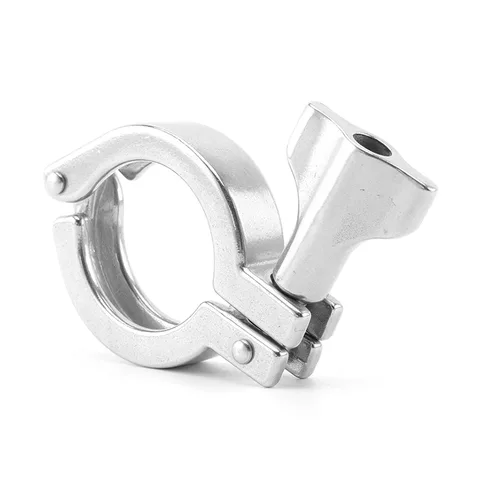

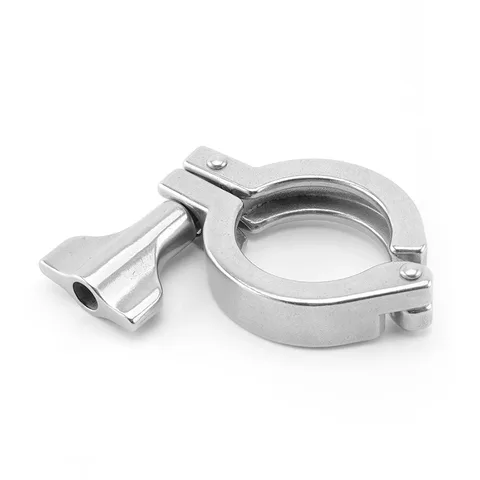

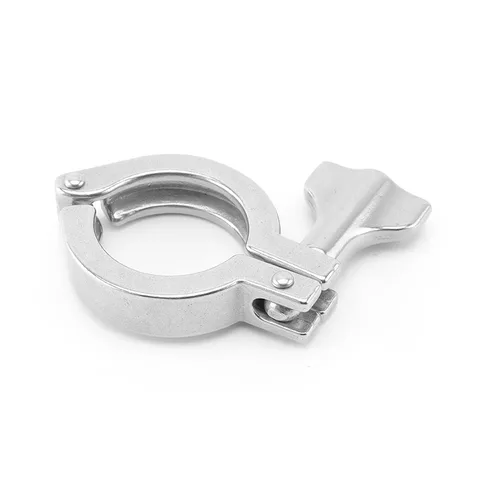

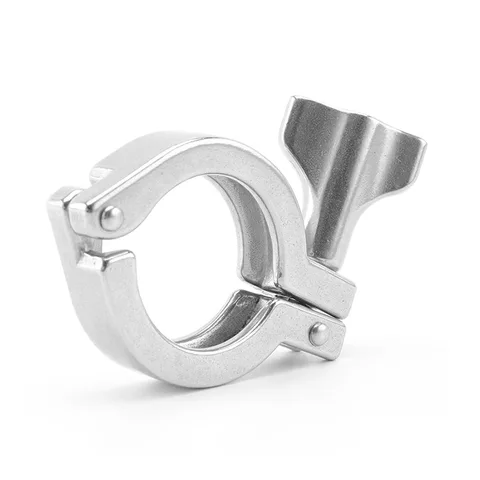

Heavy-Profile Single-Pin Tri-Clamp with tri-clamp connection. Images retain the exact source series. Confirm size, supplied alloy, surface finish and gasket against the ordered model. Source family options do not establish pressure rating or certification.
Selection checks
- Mating flange outside diameter and profile
- Clamp construction and available installation clearance
- Separate gasket or centring components required by the joint
Prepare your enquiry
End connections · Size range · Material · Seal or gasket · Service fluid · Operating conditions · Quantity
Technical specifications
Materials & seals
- Material Options
- 304SS; 316(L)SS
Connections & dimensions
- Connection
- Tri Clamp
Need a different size, connection or document?
Discuss your requirements
