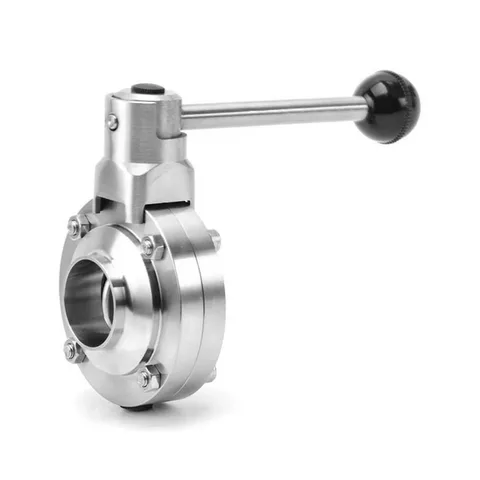

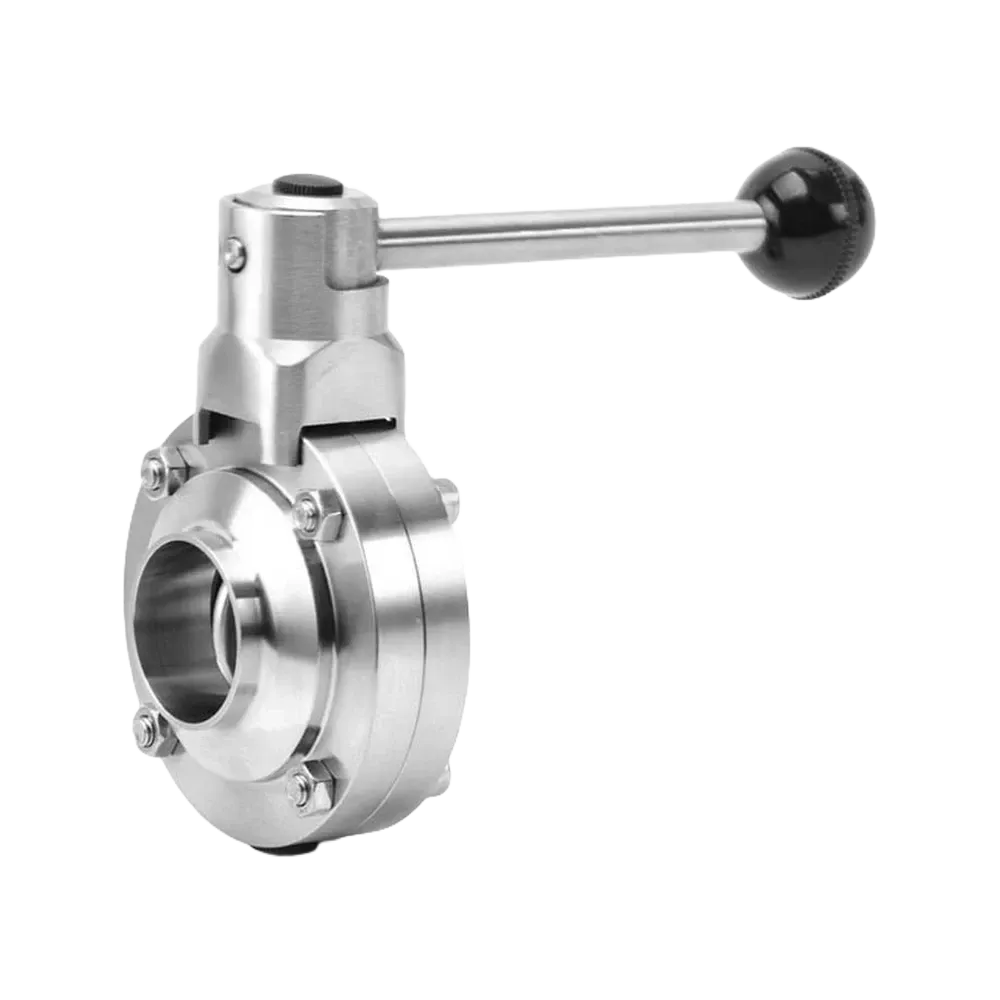

Weld-End Butterfly Valve
Weld-End Butterfly Valve controls a flow path using a rotating disc.
Material Options | 1.4404 (316L); 1.4301 (304) |
|---|---|
Connection | Butt-weld |
Product overview
Product structure
The weld ends form the pipe-side joints.
Connections and assembly

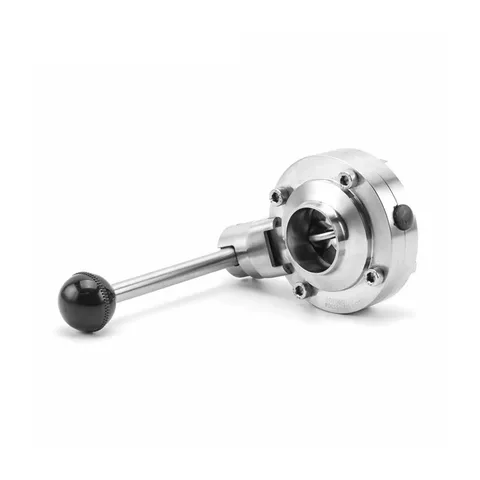

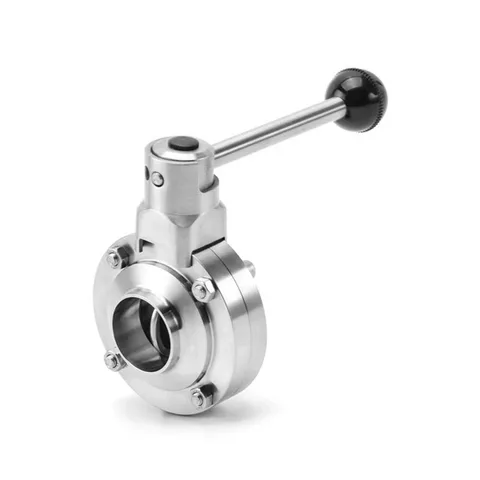

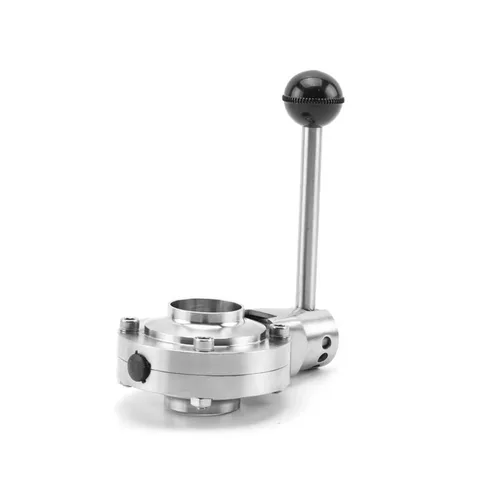

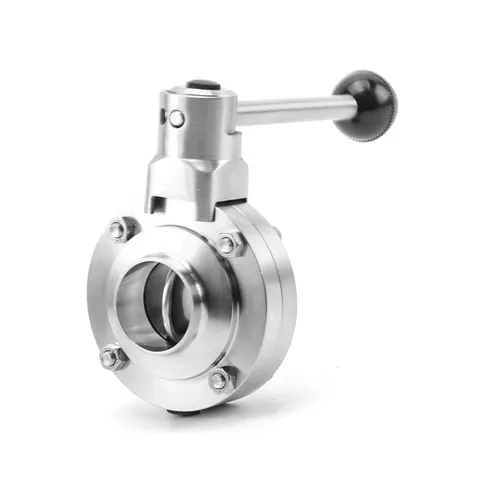

The tube ends join mating pipe sections, with a top pull-style handle operating the disc. Compare tube diameter, wall thickness and installed length, leaving room for welding and handle travel.
Prepare your enquiry
End connections · Size range · Material · Seal or gasket · Service fluid · Operating conditions · Quantity
Technical specifications
Connections & dimensions
- Connection
- Butt-weld
Materials & seals
- Material Options
- 1.4404 (316L); 1.4301 (304)
Need a different size, connection or document?
Discuss your requirements
