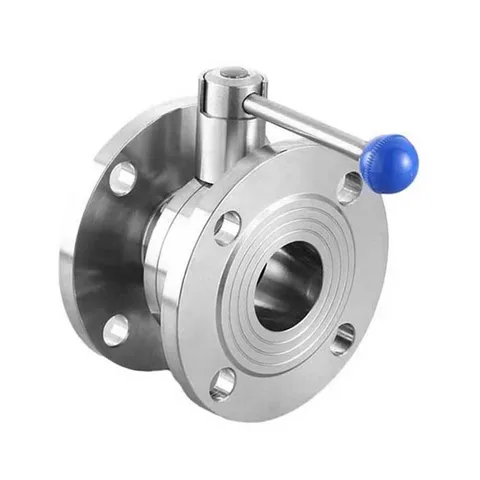

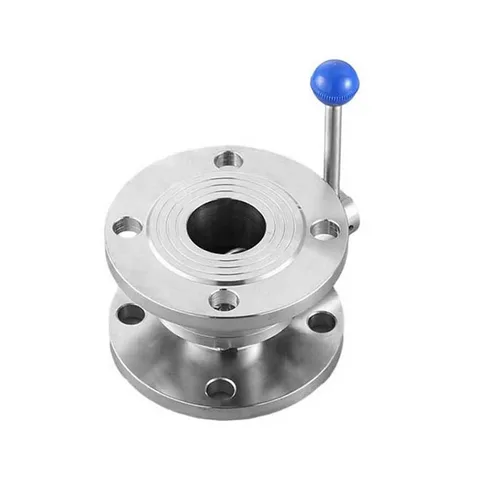

Flanged Butterfly Valve
Flanged Butterfly Valve controls a flow path using a rotating disc.
Material Options | 1.4404 (316L); 1.4301 (304) |
|---|---|
Connection | Flange |
Product overview
Product structure
Flanged ends form the mating pipe connections.
Prepare your enquiry
End connections · Size range · Material · Seal or gasket · Service fluid · Operating conditions · Quantity

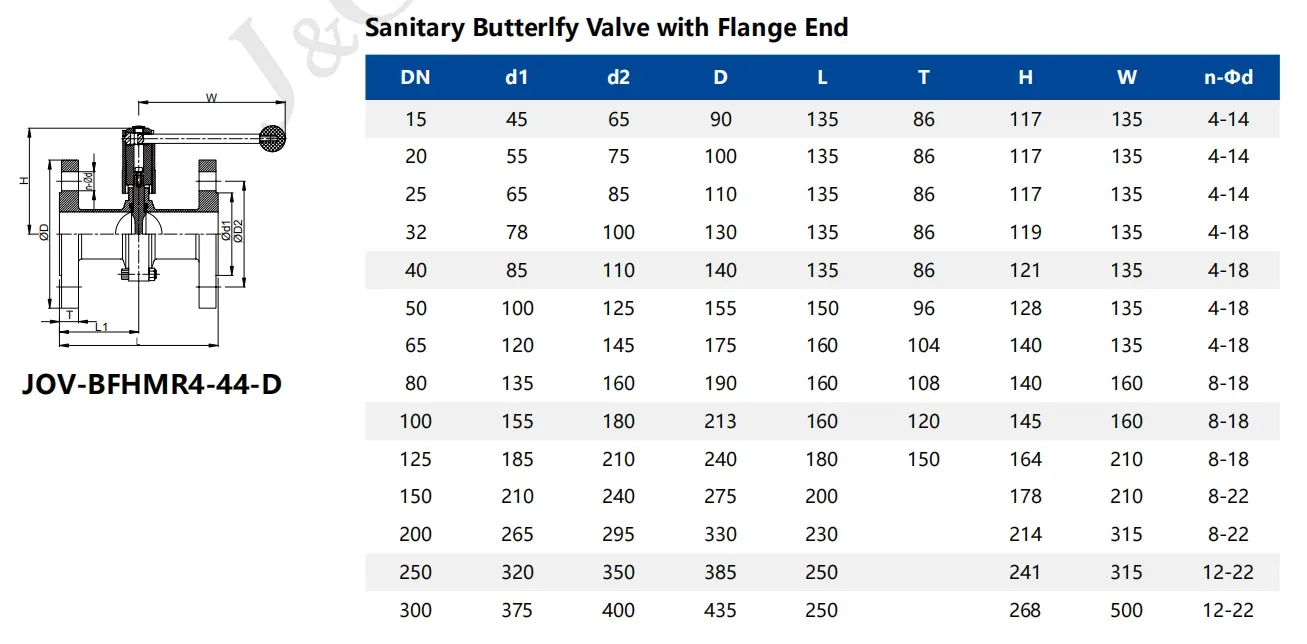

Technical specifications
Connections & dimensions
- Connection
- Flange
Materials & seals
- Material Options
- 1.4404 (316L); 1.4301 (304)
Need a different size, connection or document?
Discuss your requirements
