Sanitary Shell-and-Tube Heat Exchanger

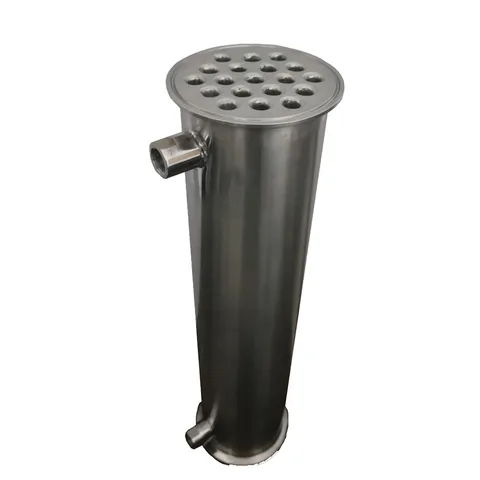

A cylindrical shell-and-tube exchanger with separate tube-side and shell-side passages.
Product overview
Product structure

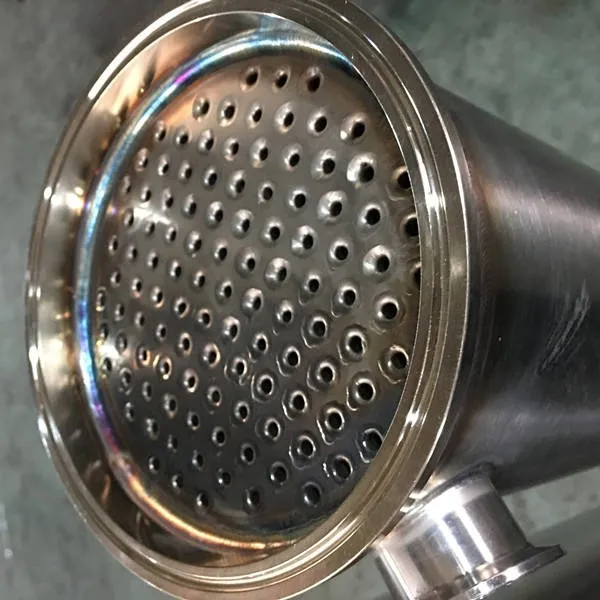

The cylindrical shell surrounds a tube bundle held by a tube sheet. Tube-side and shell-side passages provide separate flow paths for heat exchange. Connections on the shell wall connect the surrounding passage to the pipework.
Connections and assembly

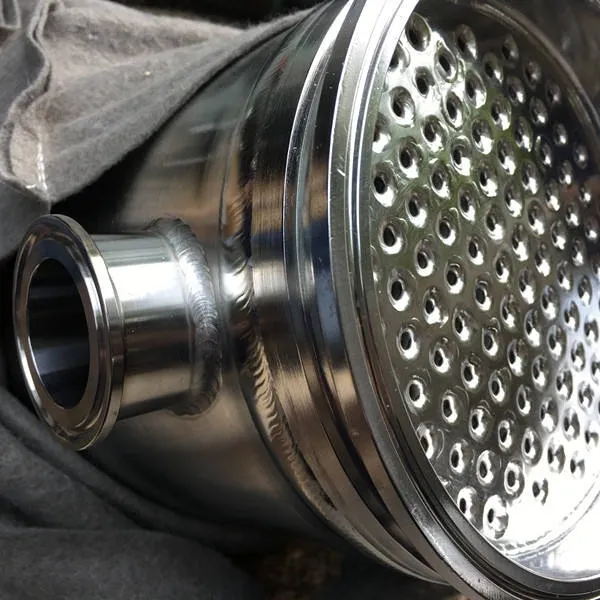

The tube bundle sits within the cylindrical shell, with the tube sheet separating the two flow paths. Compare shell-side and tube-side connections, installation direction and service clearance, leaving access around adjoining pipes and the ends.
Prepare your enquiry
End connections · Size range · Material · Seal or gasket · Service fluid · Operating conditions · Quantity
Need a different size, connection or document?
Discuss your requirements
