Condensing Coil Vessel for Extraction Equipment
A cylindrical vessel containing a coiled heat-transfer tube for extraction equipment.
Product overview
Product structure

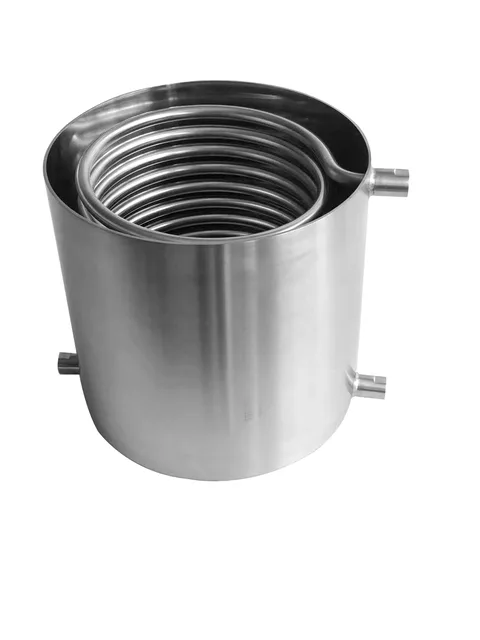

Several turns of coiled tubing are arranged inside the cylindrical vessel. Connections project from the side of the outer wall. The coil provides the heat-transfer surface within the surrounding vessel.
Connections and assembly
The coil and outer vessel form separately arranged structures, with external connections on the vessel side. Compare coil connections, vessel port directions and assembly space, arranging the pipe runs for each side separately.
Prepare your enquiry
End connections · Size range · Material · Seal or gasket · Service fluid · Operating conditions · Quantity
Need a different size, connection or document?
Discuss your requirements
