Two-Shell Bolted Hose Clamp
Two half-shells tighten through bolts on both sides.
Material | SS304, SS316 |
|---|---|
Specification | 1/2"-4", DN15-DN100 |
Product overview
Construction and connections

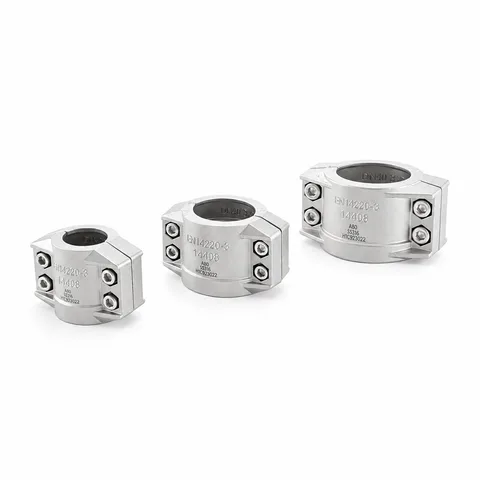

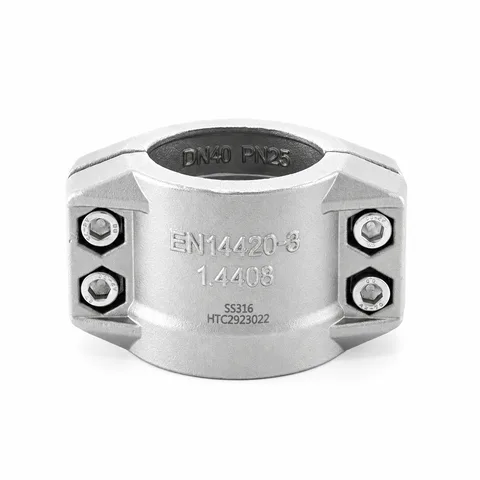

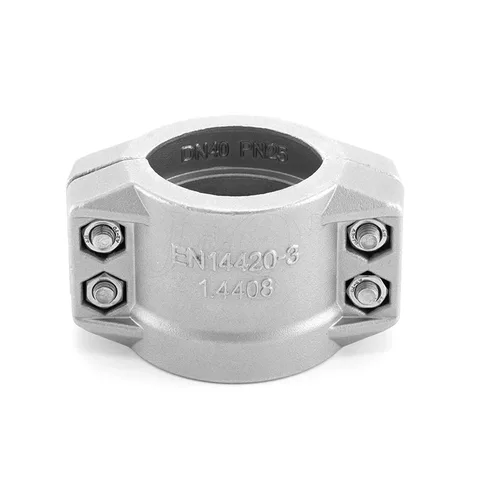

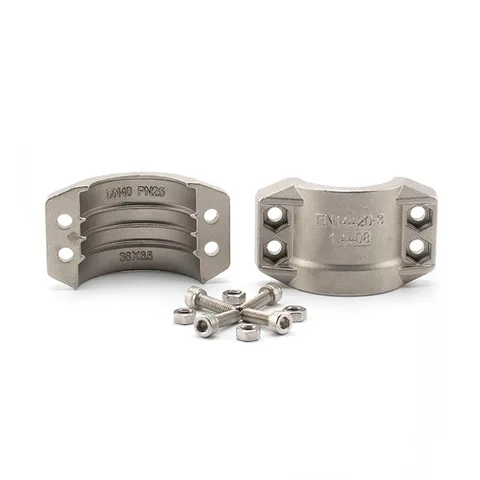

The split safety hose clamp closes around the hose with opposing bolts. Its internal profile engages the hose and the coupling shoulder to retain the assembly. Choose the clamp bore, hose outside diameter and matching hose-tail/shoulder geometry together; it is separate from a ferrule-flange Tri-Clamp ring.
Technical specifications
Safety Clamp Table
Applies to the Two-Shell Bolted Hose Clamp series dimensional reference (chart covers Safety Clamp, while overview highlights 1/2"-4", DN15-DN100); verify specific end connection standard and mating line dimensions when ordering.
DN — nominal diameter size
Item | INCH | DN | Size_mm | Hose_OD_scope_mm | Height_mm | Width_mm | Bolts_nos | Socket_Head_Screw_and_Nut |
|---|---|---|---|---|---|---|---|---|
Safety Clamp | 1/2" | 15 | 13X5 | 22-24 | 50 | 51 | 4 | M6X20 |
3/4" | 20 | 19X6 | 30-33 | 50 | 53 | 4 | M6X20 | |
1 | 25 | 25X6 | 36-39 | 50 | 69 | 4 | M6X20 | |
1-1/4" | 32 | 32X6 | 43-46 | 50 | 76 | 4 | M6X20 | |
1-1/2" | 40 | 38X6.5 | 50-52 | 50 | 83 | 4 | M6X20 | |
2" | 50 | 50X8 | 64-67 | 56 | 102 | 4 | M8X25 | |
2-1/2" | 65 | 63X8 | 78-82 | 74 | 120 | 4 | M8X25 | |
3" | 80 | 75X8 | 88-93 | 76 | 133 | 4 | M8X25 | |
4" | 100 | 100X8 | 114-119 | 120 | 166 | 4 | M10X40 |
