PTFE Screen Gasket

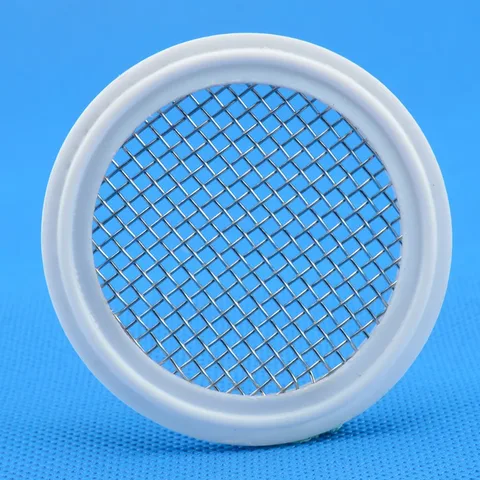

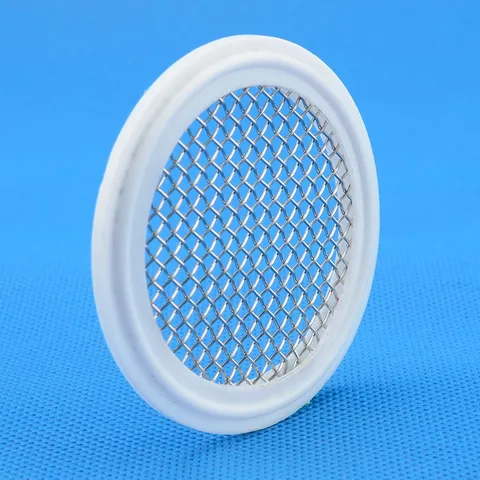

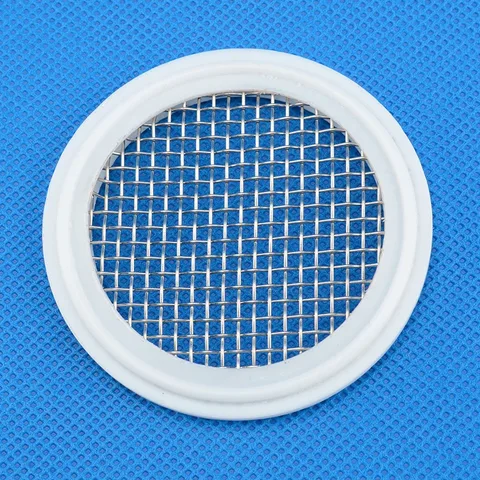

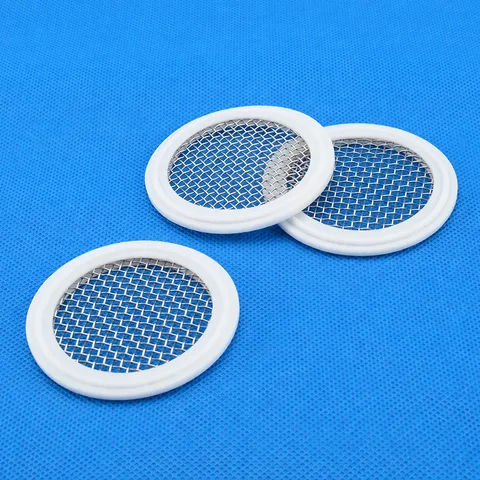

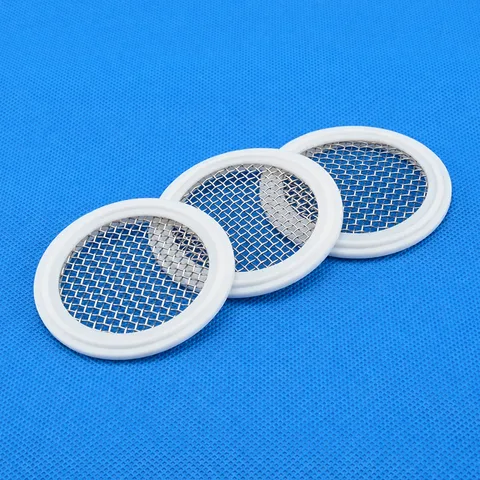

A PTFE sealing ring retains a stainless steel screen across its central opening.
Product overview
Construction and mating components
The gasket sits between mating ferrule sealing faces and is compressed by the clamp joint. Select the seal profile, inside/outside diameters and material separately. Screen gaskets include a mesh element and are distinct from plain seals. The body specification lists DN20~100; the dimension chart has its own size rows. Read each range as marked rather than treating inch designations and DN values as interchangeable.
Technical specifications
Product series
- Material options
- PTFE (Material options in the body specification; select the ordered grade. 316 and 316L are distinct.)
- Series size range
- DN20~100 (Nominal range in the body specification; read the dimension-chart size rows separately.)
Tri-Clamp Seal Gasket Series Dimensional Reference (JO20644079)
Applies to the JO20644079 sanitary Tri-Clamp gasket series (chart lists 1/2"–8.0", while overview options span up to 12" / DN15–DN300); confirm elastomer/PTFE material, screen/lip profile, and mating ferrule OD (A) when ordering.
| Size | A | B |
|---|---|---|
| 1/2" | 21.8 | 9.9 |
| 3/4" | 21.8 | 16.3 |
| 1.0" | 50.0 | 22.7 |
| 1.5" | 50.0 | 35.9 |
| 2.0" | 63.5 | 48.6 |
| 2.5" | 76.2 | 61.3 |
| 3.0" | 88.9 | 74.0 |
| 4.0" | 118 | 98.6 |
| 6.0" | 165 | 147.8 |
| 8.0" | 216 | 196.6 |
Dimension symbols
- A
- gasket outside diameter (matching clamp ferrule face OD)
