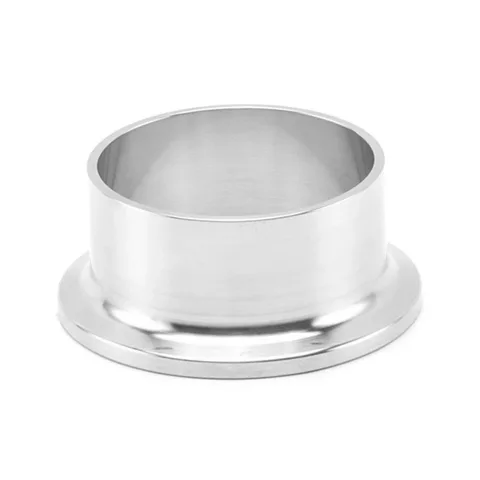

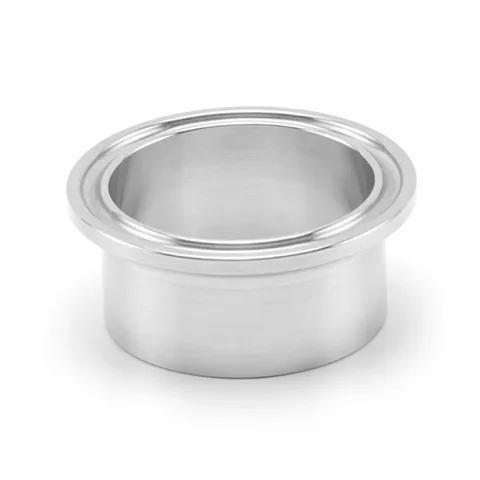

Stainless Steel Weld Ferrule — DC Series
The weld clamp ferrule combines a welding pipe end with a ferrule flange for a detachable joint.
Material | SS304, SS316L |
|---|---|
Connection | Union |
Specification | 1/2"~12" |
Shape | Round |
Standard or Nonstandard | 3A |
Product overview
Product structure
Stainless Steel Weld Ferrule — DC Series for a tri-clamp connection. Confirm weld-end length, dimensional standard and supplied material against the ordered model. Source family options do not establish universal interchangeability.
Selection checks
- Tube outside diameter and wall thickness
- Ferrule flange diameter and profile
- Weld length and mating clamp/gasket
Prepare your enquiry
End connections · Size range · Material · Seal or gasket · Service fluid · Operating conditions · Quantity
Technical specifications
Materials & seals
- Material Options
- SS304 or SS316L
