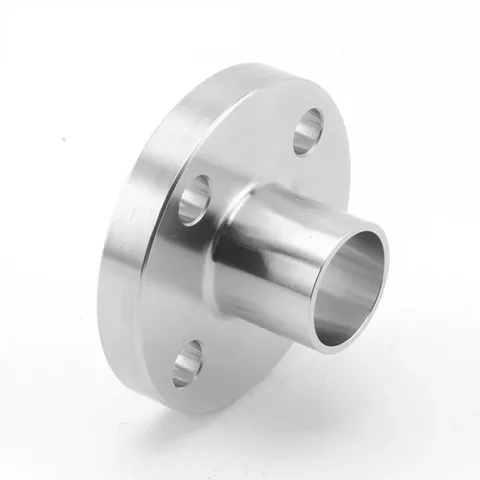

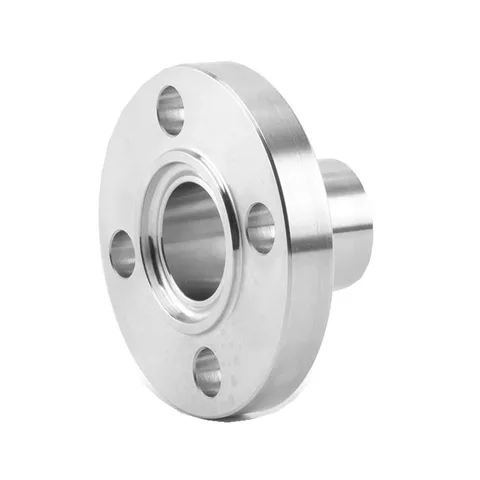

DIN 11864-2 Aseptic Nut Flange Component
The DIN 11864-2 nut flange is one side of a mating flange joint and pairs with a liner flange.
Material | SS316L |
|---|---|
Specification | DN10-DN100 |
Standard or Nonstandard | Standard |
Product overview
Product structure

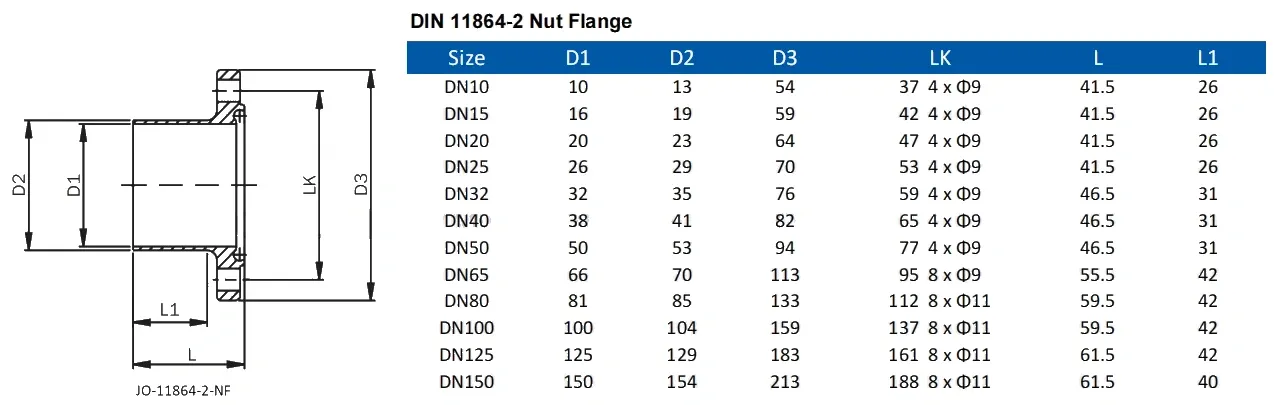

A nut flange component for a DIN 11864-2 connection assembly. Confirm the mating liner component and interface dimensions from the connection drawing.
Selection checks
- Facing and mating flange standard
- Bolt circle, hole count and dimensions
- Bore and sealing components
Prepare your enquiry
End connections · Size range · Material · Seal or gasket · Service fluid · Operating conditions · Quantity
Technical specifications
Materials & seals
- Material Options
- SS316L
Need a different size, connection or document?
Discuss your requirements
