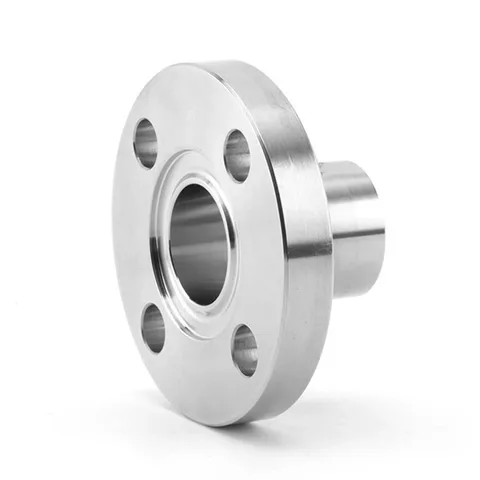

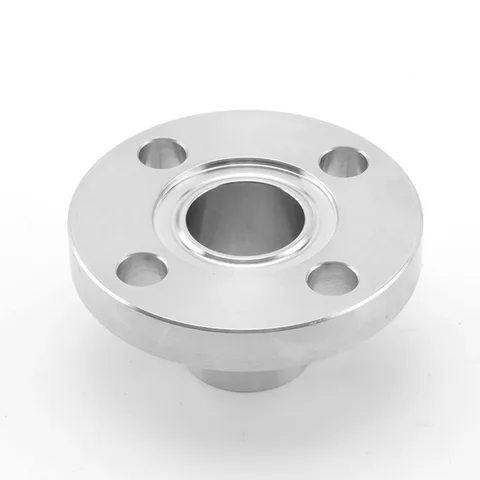

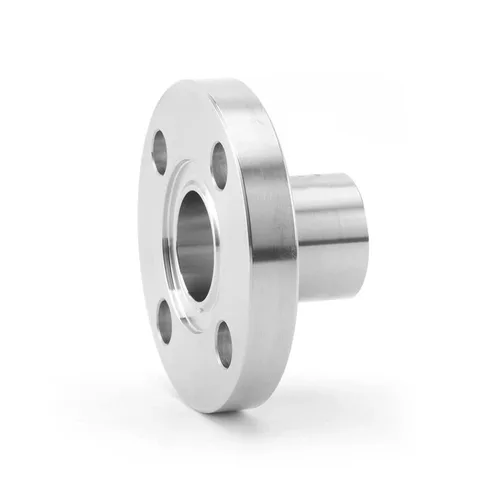

DIN 11864-2 Aseptic Liner Flange Component
The DIN 11864-2 liner flange is one side of a mating flange joint, with a pipe end and joint face.
Material | SS316L |
|---|---|
Specification | DN10-DN100 |
Standard or Nonstandard | Standard |
Product overview
Product structure
A liner flange component for a DIN 11864-2 connection assembly. Confirm the mating nut flange, sealing arrangement and interface dimensions.
Selection checks
- Facing and mating flange standard

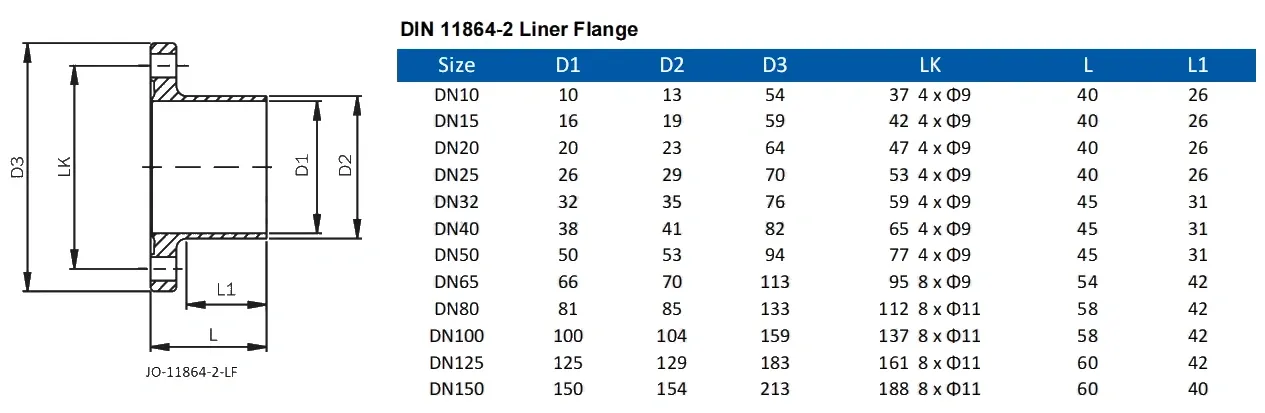

- Bolt circle, hole count and dimensions
- Bore and sealing components
Prepare your enquiry
End connections · Size range · Material · Seal or gasket · Service fluid · Operating conditions · Quantity
Technical specifications
Materials & seals
- Material Options
- SS316L
Need a different size, connection or document?
Discuss your requirements
