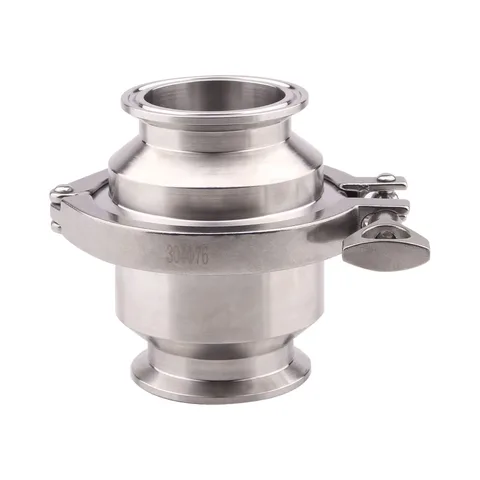

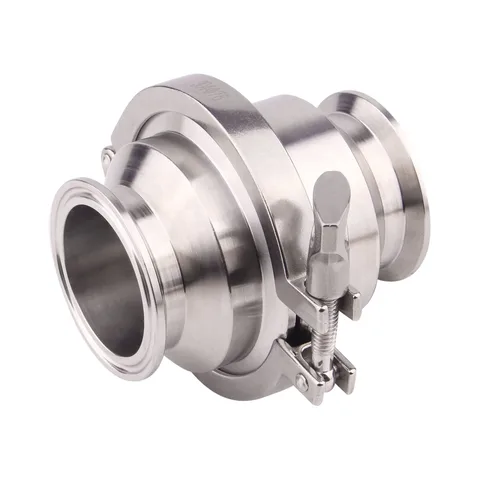

Inline Tri-Clamp Check Valve
An inline clamp-end check valve using spring return for one-way flow control.
Connection | Tri-Clamp |
|---|
Select an option to include it in your enquiry.
Product overview
Product structure

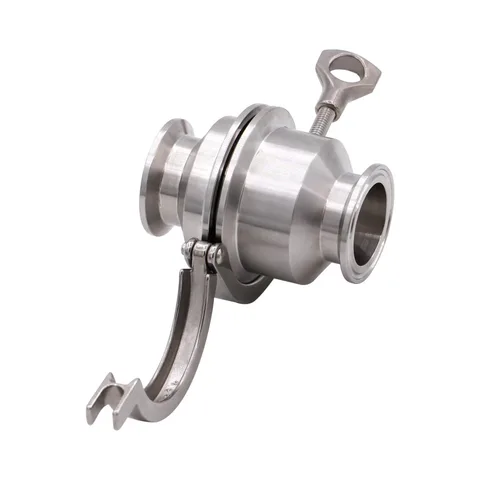

Adjustable pressure via spring replacement (1 spring included)- Quickly comes apart for easy cleaning.
This one-way check valve allows flow in only one direction.
When flow stops the valve automatically closes to stop materials from back-flowing.
Prepare your enquiry
End connections · Size range · Material · Seal or gasket · Service fluid · Operating conditions · Quantity
Technical specifications
Connections & dimensions
- Connection
- Tri-Clamp
Dimension data and symbol key
Dimensional reference
Tube OD | Ferrule Size |
|---|---|
1.5 Inch | 50.5MM, Fits 1.5 Inch Tri-clamp |
2 Inch | 64MM, Fits 2 Inch Tri-clamp |
