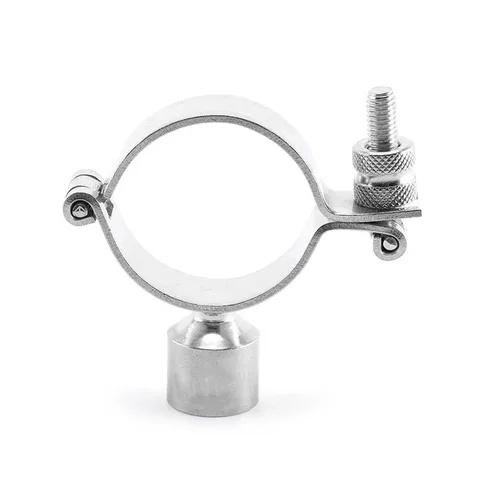

Hinged Pipe Hanger

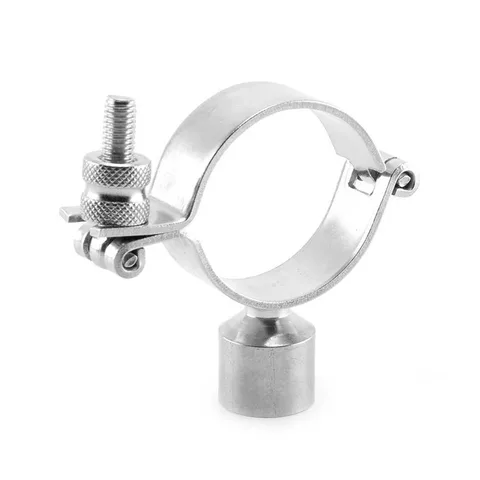

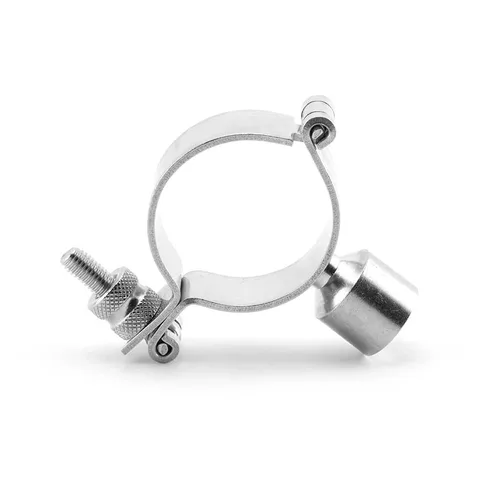

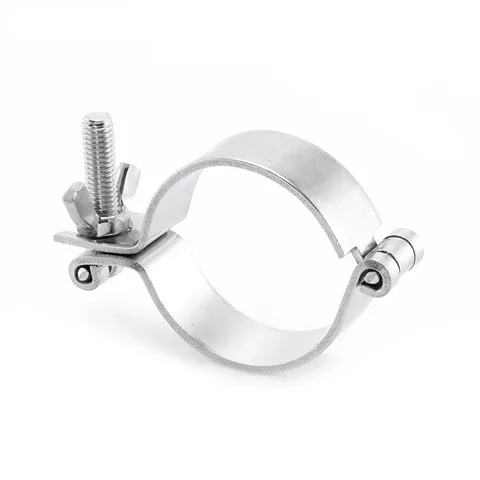

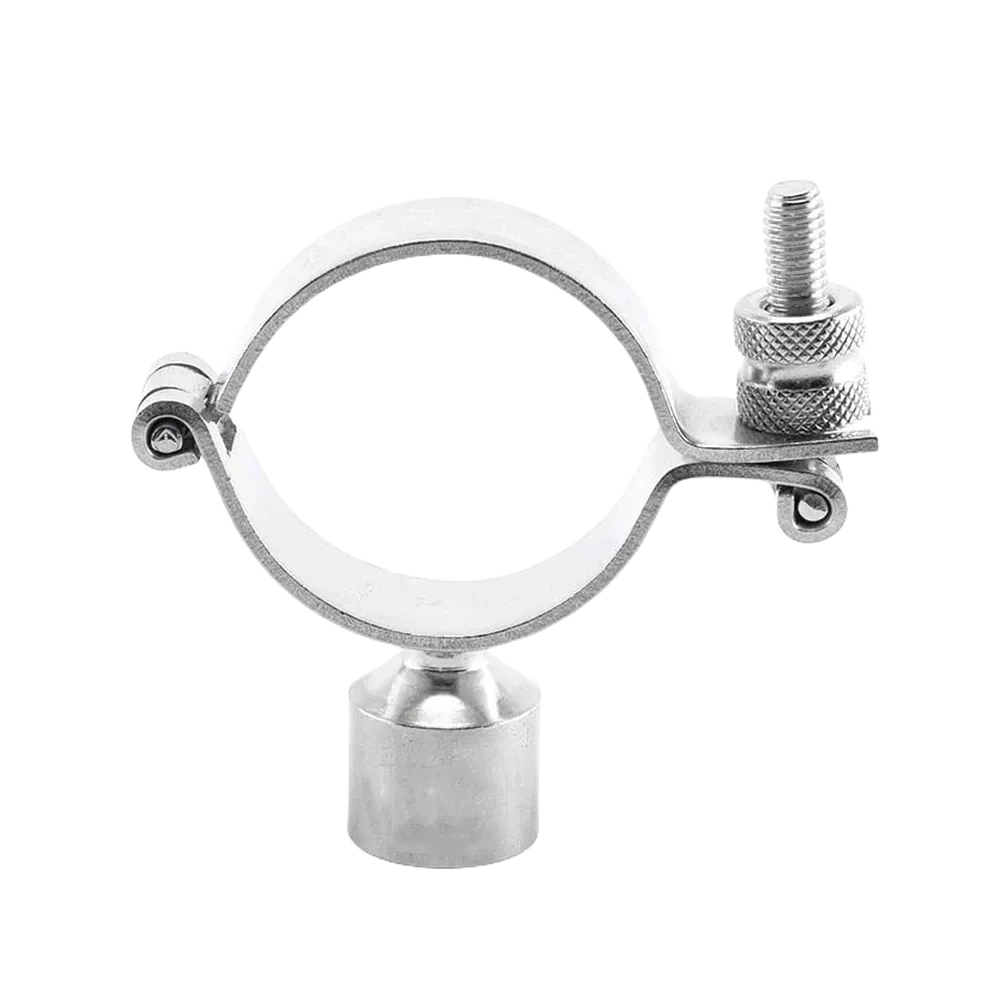

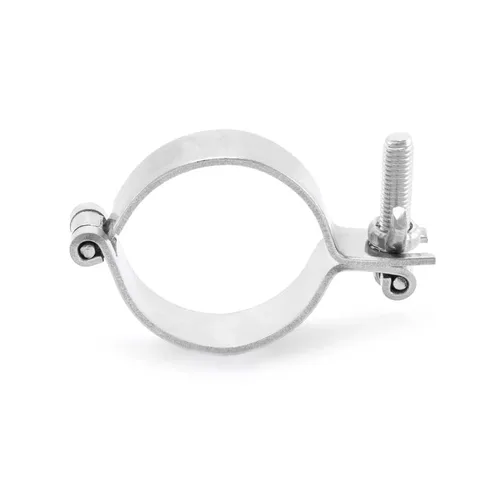

The hinged pipe hanger surrounds tubing with a metal band, combining a hinged side with a projecting closure bolt.
Material | SS304 |
|---|
Product overview
Product structure

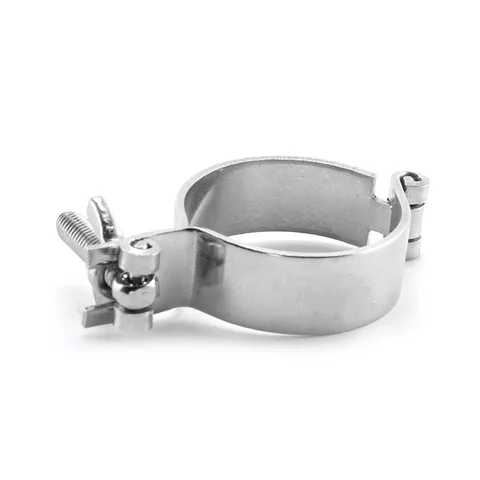

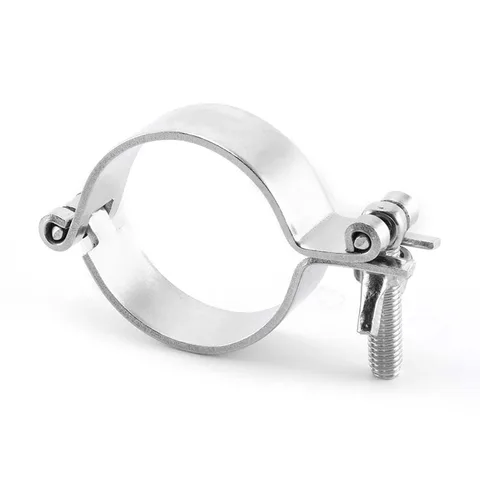

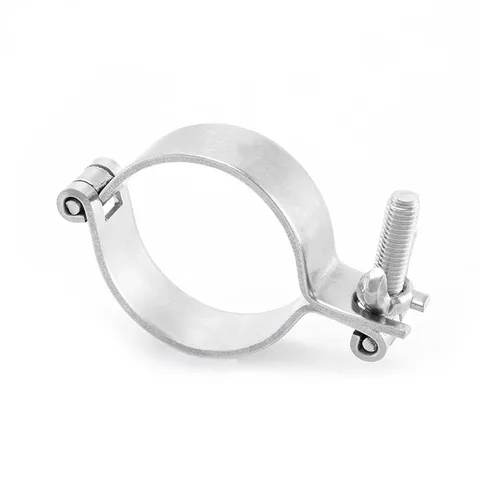

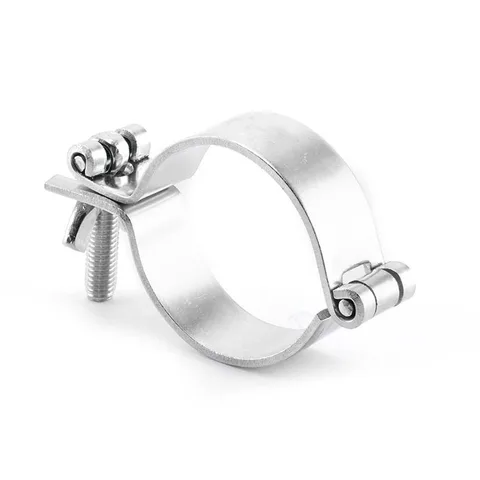

The hinged body opens around the pipe.
Pipe support and retention

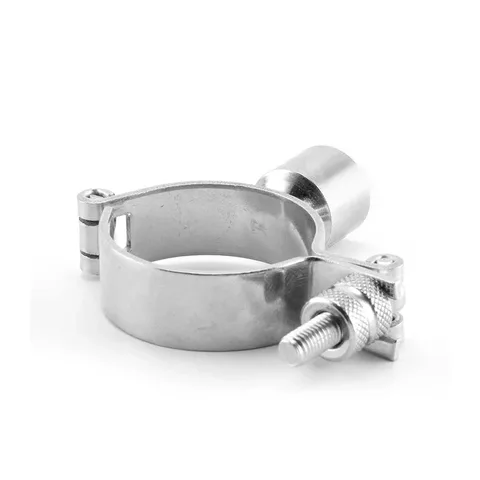

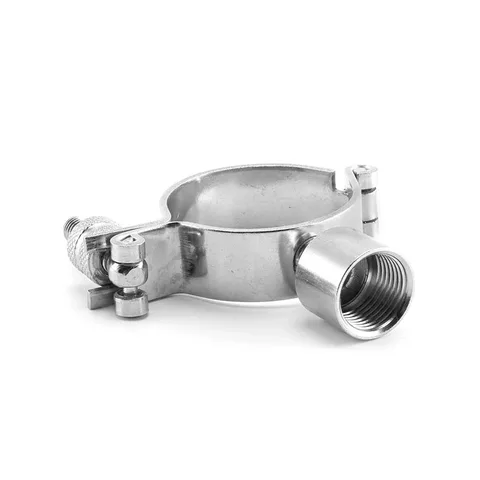

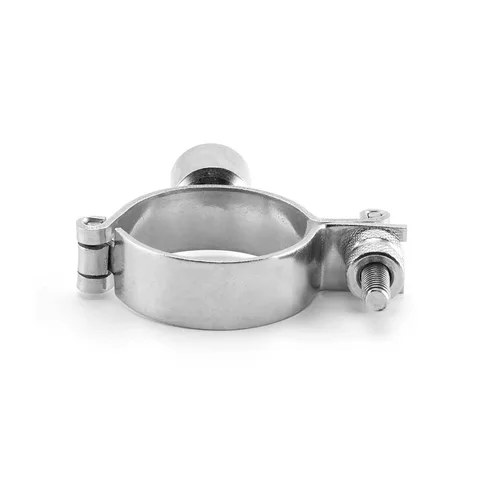

The hinged ring opens around the pipe and closes with the side fastener. The mounting boss attaches the pipe to its support; compare the pipe diameter and mounting height for the installation.
Applications
Used to support stainless steel piping, including data-center cooling water, liquid cooling and energy-storage cooling circuits, as well as food and beverage equipment piping.
Assembly & Selection Notes
Compare tube outside diameter, closure-bolt direction and support positions, allowing room to open the band, place the tube and operate fasteners. Match the clamp bore to the tube outside diameter.
Prepare your enquiry
End connections · Size range · Material · Seal or gasket · Service fluid · Operating conditions · Quantity
Technical specifications
Materials & seals
- Material Options
- 304
Dimension data and symbol key

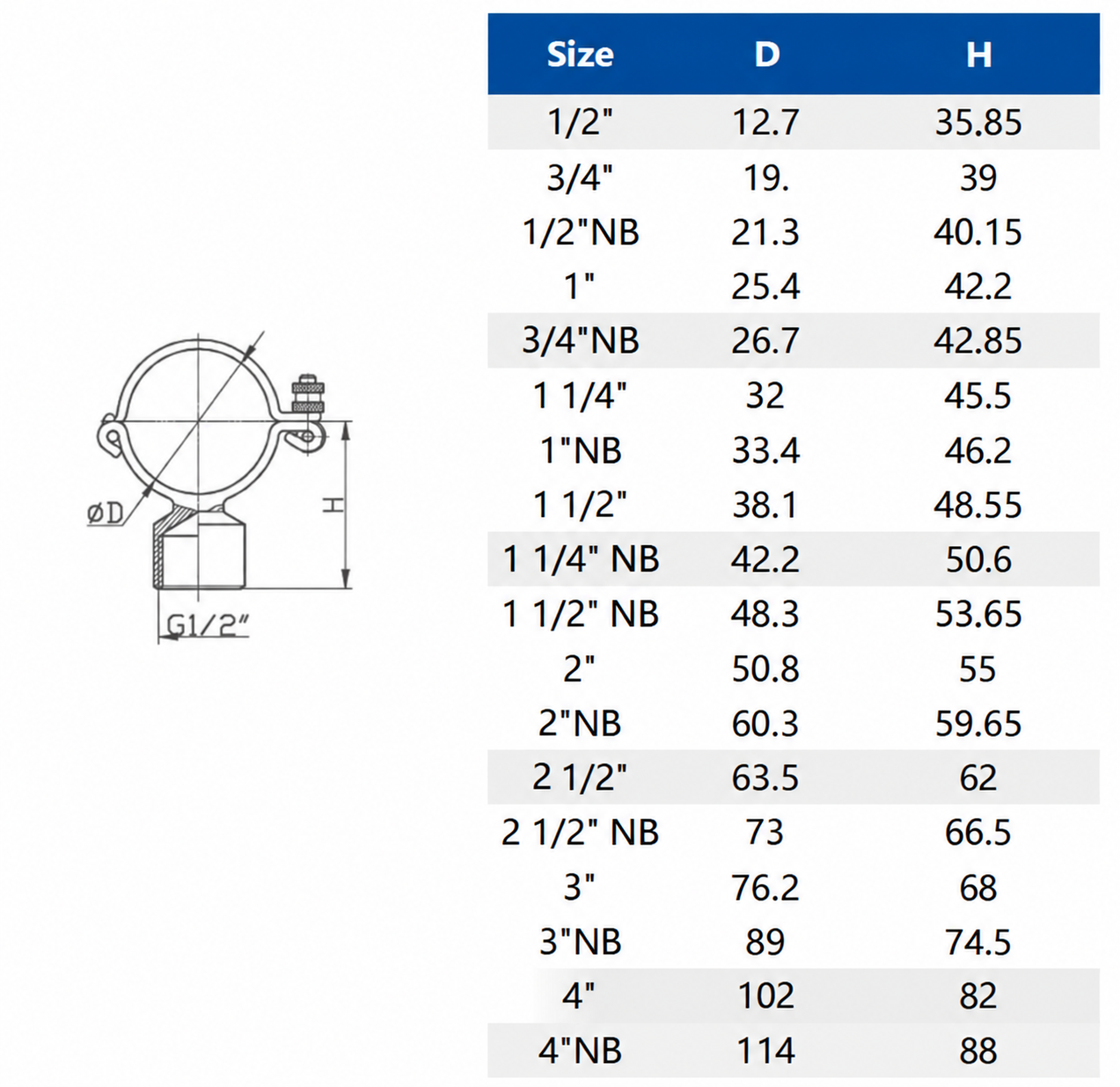

Hinged pipe hanger dimensions
Dimension comparison from the product page.
The table does not label a common unit. Values are retained as printed; compare them with the accompanying drawing.
D — Clamped pipe diameter
H — Pipe centreline to mounting base
Size | D | H |
|---|---|---|
1/2" | 12.7 | 35.85 |
3/4" | 19. | 39 |
1/2"NB | 21.3 | 40.15 |
1" | 25.4 | 42.2 |
3/4"NB | 26.7 | 42.85 |
1 1/4" | 32 | 45.5 |
1"NB | 33.4 | 46.2 |
1 1/2" | 38.1 | 48.55 |
1 1/4" NB | 42.2 | 50.6 |
1 1/2" NB | 48.3 | 53.65 |
2" | 50.8 | 55 |
2"NB | 60.3 | 59.65 |
2 1/2" | 63.5 | 62 |
2 1/2" NB | 73 | 66.5 |
3" | 76.2 | 68 |
3"NB | 89 | 74.5 |
4" | 102 | 82 |
4" NB | 114 | 88 |
