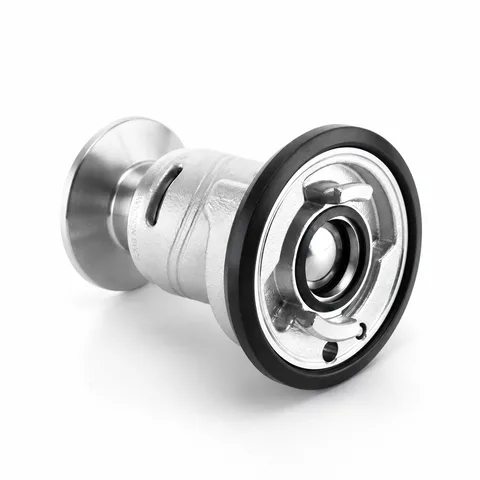

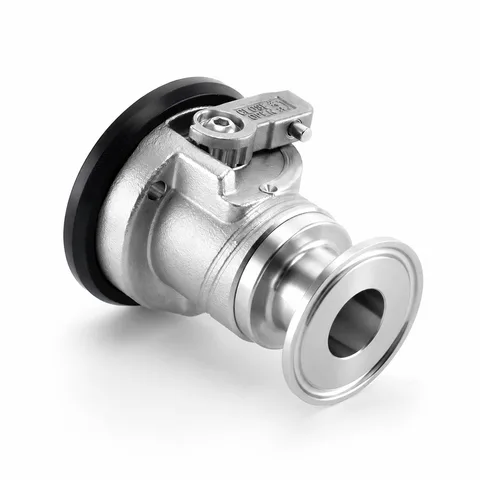

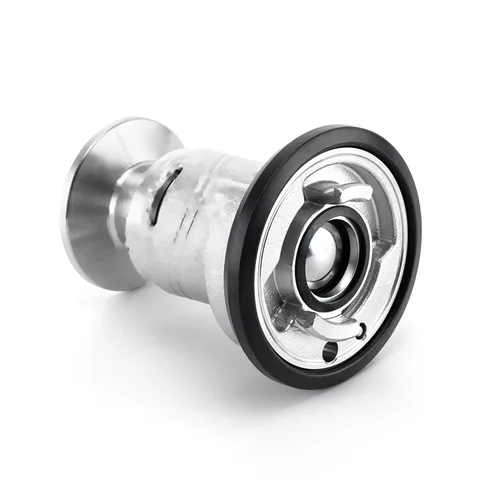

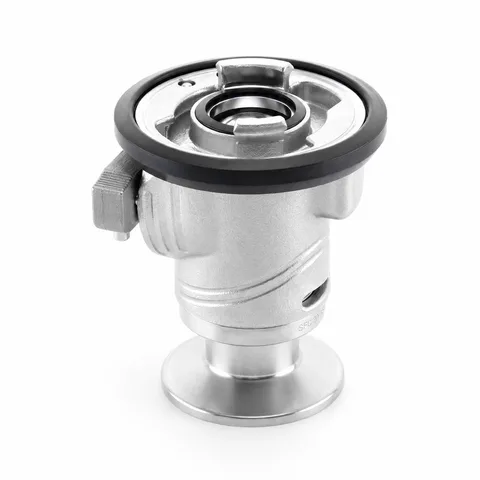

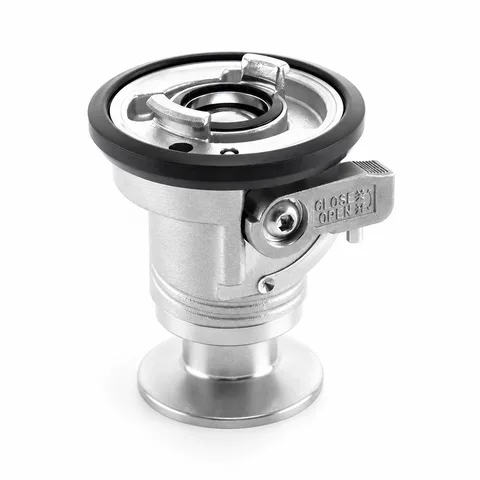

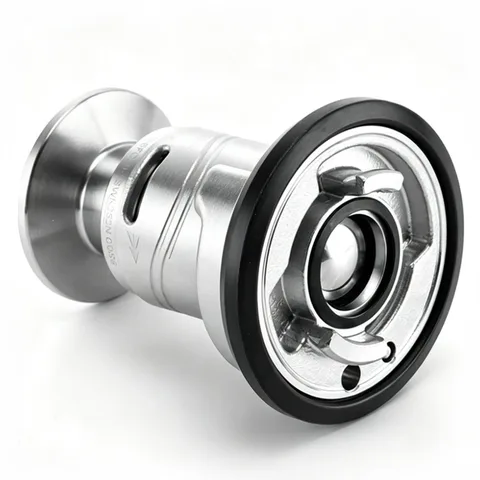

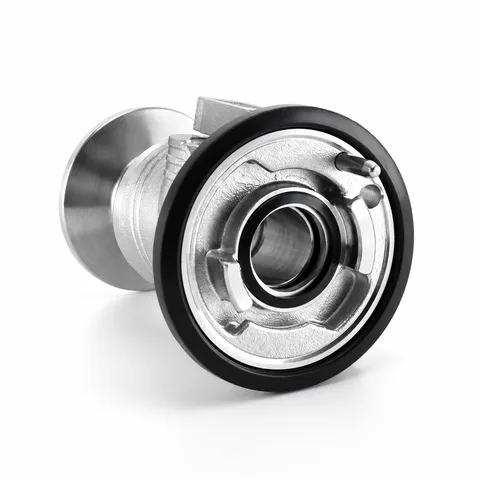

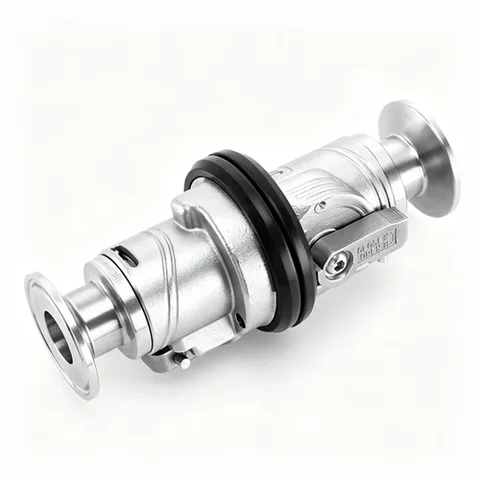

FD83-Type Interlock Quick Disconnect Coupling
The FD83-type interlock quick-disconnect coupling combines an annular mating face, locking handle and pipe-side connection in one component.
Material | SS304, SS316 |
|---|---|
Connection | Tri-Clamp, Femal, Male, Barb hose |
Specification | 1"-4" |
Product overview
Product structure
The coupling parts mate through their identified locking arrangement.
Selection checks
- Mating coupling series and interchangeability
- Locking mechanism and connection sizes
- Seal material and connection/disconnection conditions
Prepare your enquiry
End connections · Size range · Material · Seal or gasket · Service fluid · Operating conditions · Quantity

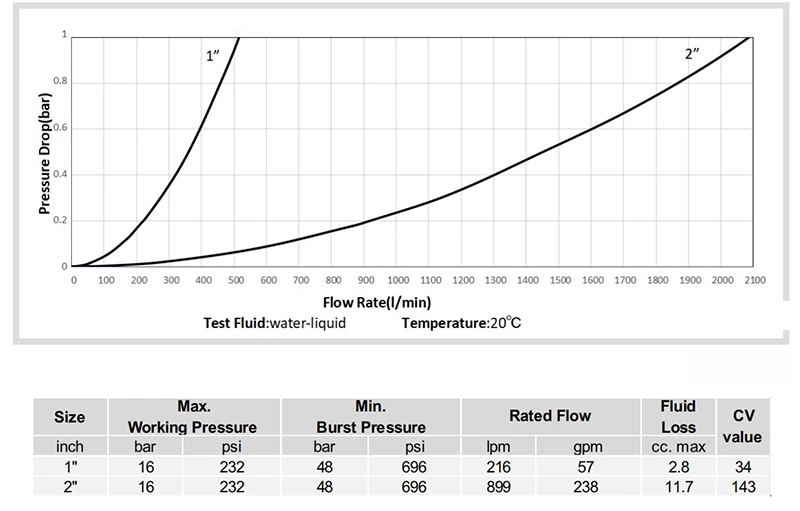

Technical specifications
Materials & seals
- Material Options
- SS304, SS316
Product series
- Media / applications
- Water (Product series)
- Pressure range
- 16 bar (Product series)
- Temperature range
- -40 to +120 °C (Product series)
Need a different size, connection or document?
Discuss your requirements
