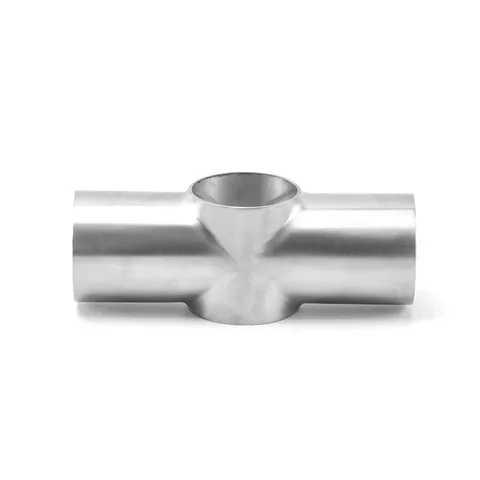

Weld-End Short Cross
The short weld cross joins mating pipes in four directions through intersecting passages.
Material | AISI304, AISI316L |
|---|---|
Connection | weld |
Specification | 25MM-104MM |
Product overview
Product structure

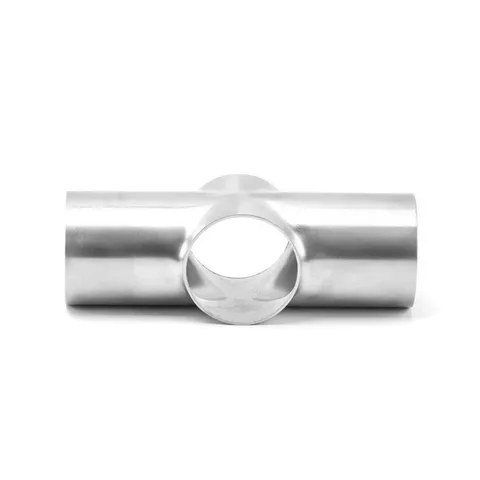

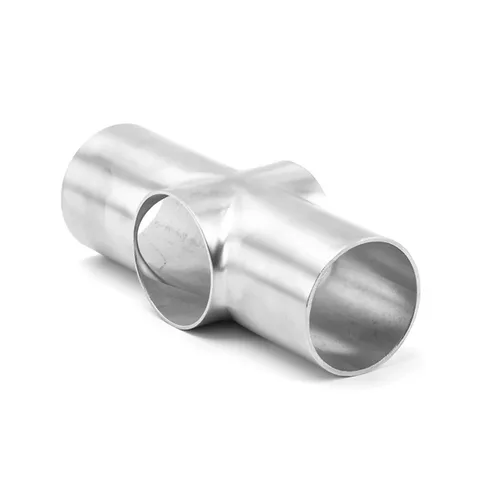

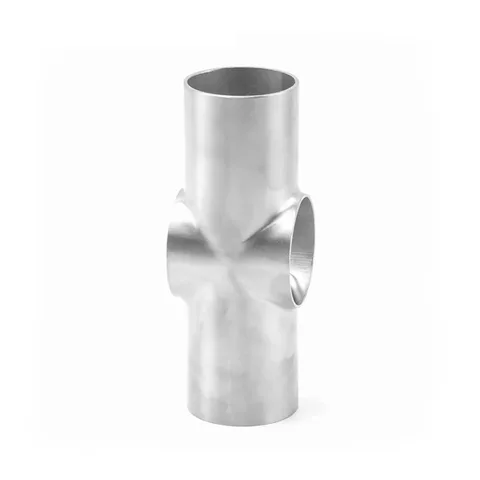

Four branches meet at the common body. The weld ends form the pipe-side joints.
Prepare your enquiry
End connections · Size range · Material · Seal or gasket · Service fluid · Operating conditions · Quantity
Technical specifications
Materials & seals
- Material Options
- AISI304, AISI316L
Connections & dimensions
- Connection
- weld ends
Need a different size, connection or document?
Discuss your requirements
