Tri-Clamp to Hose Barb 90° Adapter

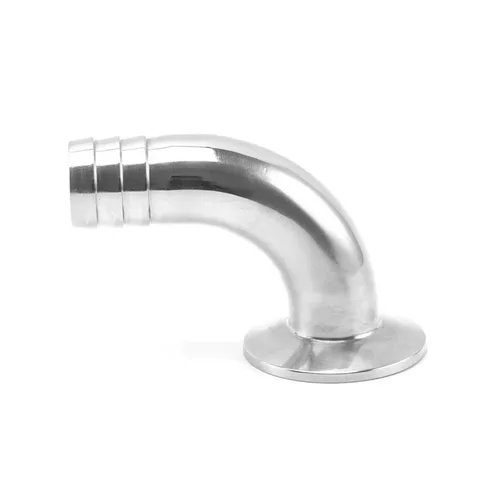

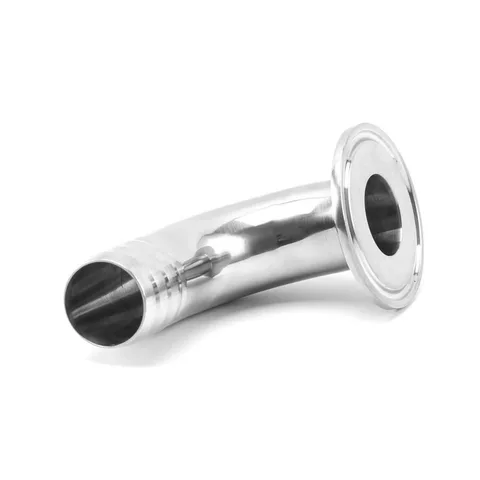

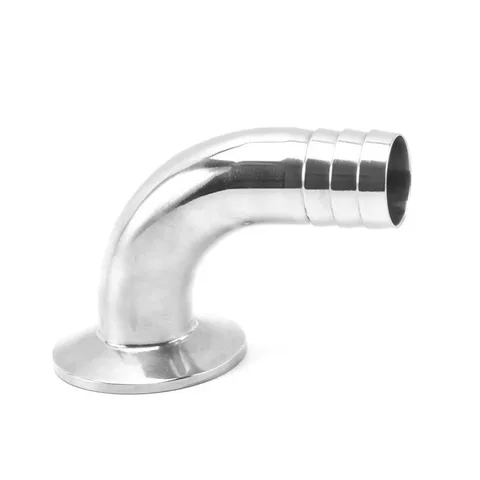

The 90-degree clamp hose-barb adapter combines a ferrule end and a barbed hose end on a curved tube.
Material | SS304, SS316L |
|---|---|
Connection | Clamped |
Shape | 90 Degree |
Product overview
Product structure
A Tri-Clamp joint connects mating ferrules with a separate clamp and gasket. The barbed end engages the interior of a hose.
Prepare your enquiry
End connections · Size range · Material · Seal or gasket · Service fluid · Operating conditions · Quantity
Technical specifications
Materials & seals
- Material Options
- SS304 or SS316L
Connections & dimensions
- Connection
- Clamp
- Connection
- Tri-Clamp
Need a different size, connection or document?
Discuss your requirements
