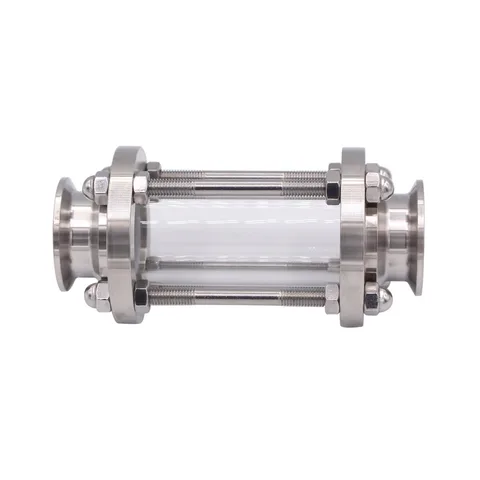

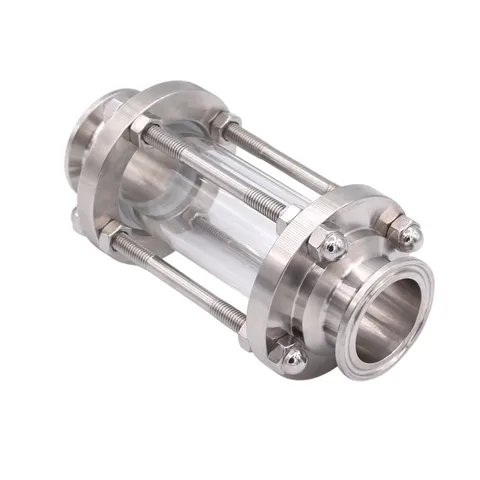

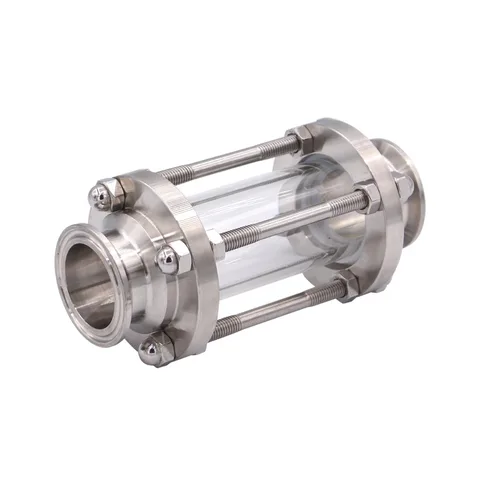

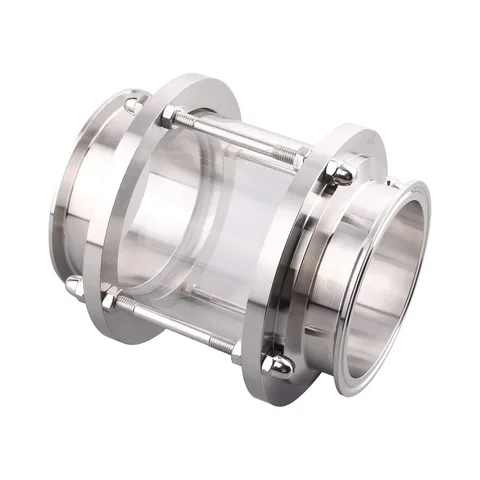

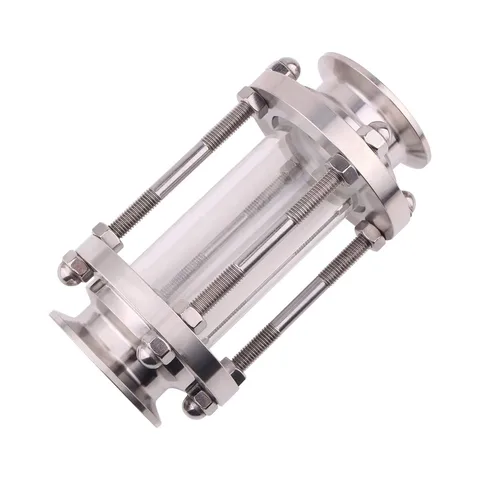

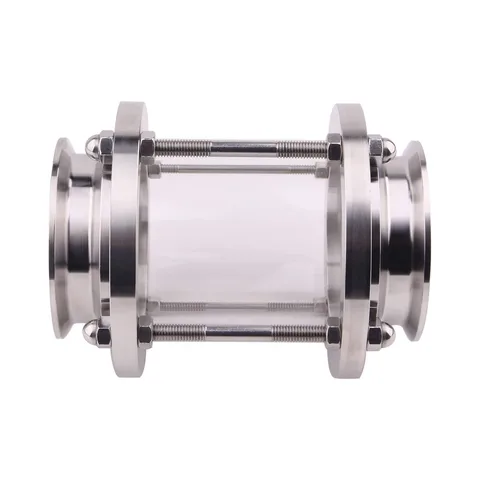

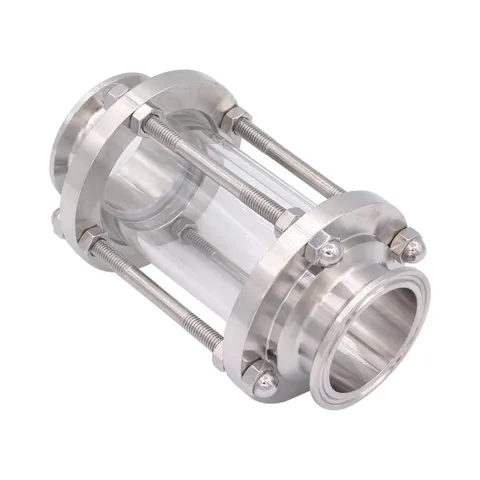

Tri-Clamp Inline Sight Glass
An inline clamp-end sight glass for observing fluid through a transparent section, with vertical or horizontal installation.
Connection | Tri-Clamp |
|---|
Select an option to include it in your enquiry.
Product overview
Product structure
A Tri-Clamp joint connects mating ferrules with a separate clamp and gasket.
These In-line Sight Glasses are easier to clean.
Material and construction
In-line Sight Glass with Clamp End, SUS316 body material.
Application

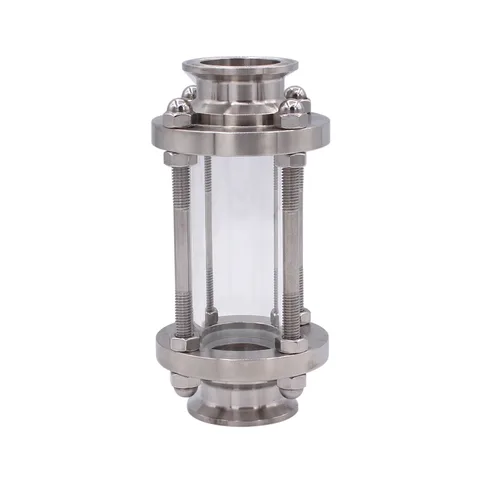

Can be used in vertical or horizontal position.
The Sanitary Sight Glasses are designed for sanitary applications used in the food, dairy, and pharmaceutical industries.
The Sanitary In-line Sight Glasses are used widely in the food, dairy and beverage sanitary processes to view products and fluids.
Prepare your enquiry
End connections · Size range · Material · Seal or gasket · Service fluid · Operating conditions · Quantity
Technical specifications
Connections & dimensions
- Connection
- Tri-Clamp
Dimension data and symbol key
Dimensional reference
Pipe OD | Ferrule OD | Fits Tri-clamp |
|---|---|---|
38MM | 50.5MM | 1.5" |
51MM | 64MM | 2" |
76MM | 89MM | 3" |
102MM | 119MM | 4" |
