Tri-Clamp Sanitary Funnel
A tapered funnel body with a Tri-Clamp outlet ferrule.
Product overview
Product structure

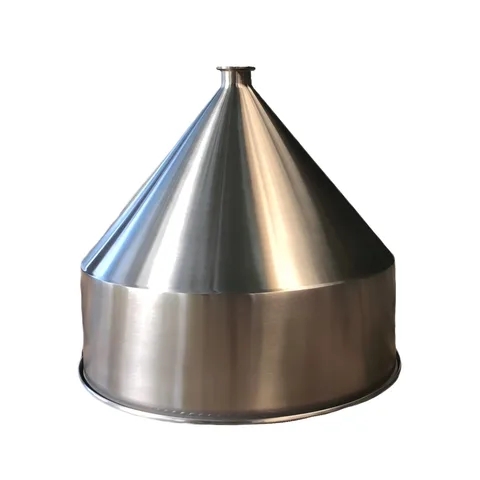

The broad funnel opening narrows through a conical section toward the outlet. The cylindrical rim forms the mouth of the funnel. A Tri-Clamp ferrule at the narrow end provides the outlet connection.
Connections and assembly
The wide inlet narrows through the tapered body to the outlet, whose ferrule mates with the downstream pipe. Compare inlet space, outlet bore and ferrule profile, allowing room for funnel support and clamp operation.
Prepare your enquiry
End connections · Size range · Material · Seal or gasket · Service fluid · Operating conditions · Quantity
Need a different size, connection or document?
Discuss your requirements
