Instrument Weld-End Tee
The instrument weld tee adds a branch to a straight passage for instrument tubing on three sides.
Material | SS316L |
|---|---|
Connection | Welded |
Specification | 1/4''-1'' |
Shape | Round |
Standard or Nonstandard | 3A,SMS,DIN,ISO,IDF |
Product overview
Product structure

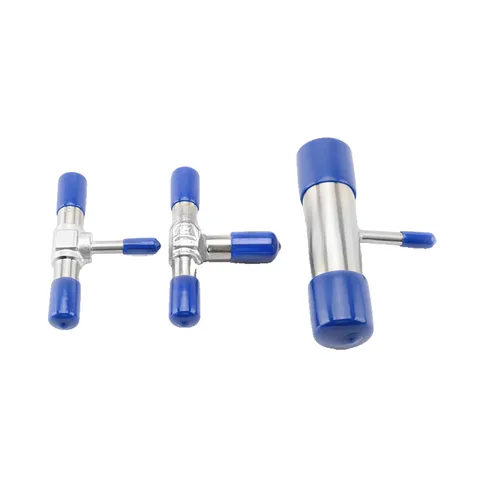

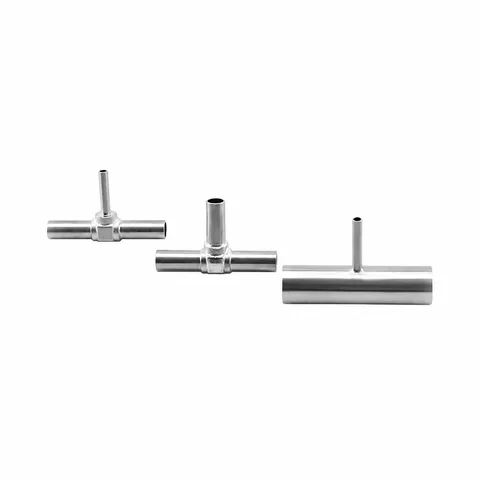

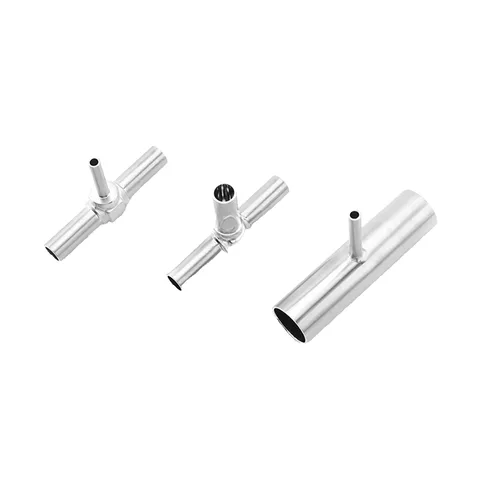

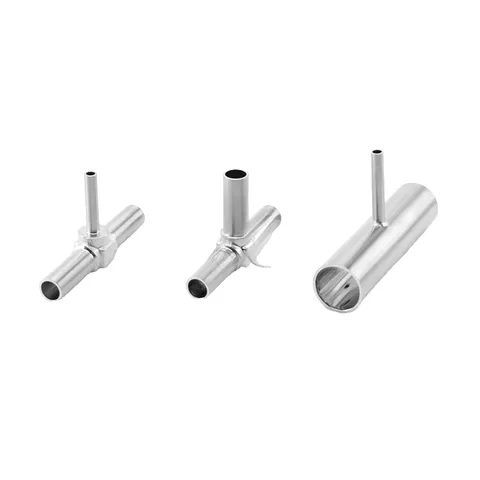

Instrument weld-end tee with a machined body and three tubing ends. Transport caps and size alternatives are shown in the source series.
Selection checks
- Branch layout and angle
- Each end’s diameter and connection
- Installation dimensions and wall thickness
Prepare your enquiry
End connections · Size range · Material · Seal or gasket · Service fluid · Operating conditions · Quantity
Technical specifications
Materials & seals
- Material Options
- SS316L
Connections & dimensions
- Connection
- Welded
Product series
- Media / applications
- Water, Oil (Product series)
Dimension data and symbol key
Dimension series table
For the structure series and interfaces listed in this table; dimension symbols follow the corresponding diagram.
The table does not label a common unit. Values are retained as printed; compare them with the accompanying drawing.
Size | T | E | A | B | L | F |
|---|---|---|---|---|---|---|
1/4" | 6.35 | 4.35 | 50.00 | 20.00 | 25.00 | 10.00 |
3/8" | 9.53 | 7.53 | 52.00 | 20.00 | 26.00 | 12.00 |
1/2" | 12.70 | 10.22 | 56.00 | 20.00 | 28.00 | 16.00 |
3/4" | 19.05 | 15.75 | 68.00 | 23.00 | 34.00 | 22.00 |
1" | 25.40 | 22.10 | 75.00 | 23.50 | 37.50 | 28.00 |
6M | 6.00 | 4.00 | 50.00 | 20.00 | 25.00 | 10.00 |
8M | 8.00 | 6.00 | 52.00 | 20.00 | 26.00 | 12.00 |
10M | 10.00 | 8.00 | 56.00 | 20.00 | 28.00 | 16.00 |
12M | 12.00 | 10.00 | 56.00 | 20.00 | 28.00 | 16.00 |
18M | 18.00 | 15.00 | 68.00 | 23.00 | 34.00 | 22.00 |
Need a different size, connection or document?
Discuss your requirements
