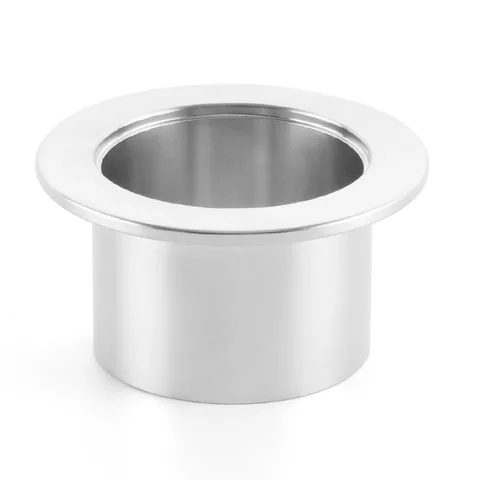

KF/NW Weld Stub
The KF weld stub combines a flange end and a short tube end to connect a vacuum flange joint to piping.
Model | CEF-22-A |
|---|---|
Material | SS304, SS316L |
Shape | Round |
Product overview
Product structure

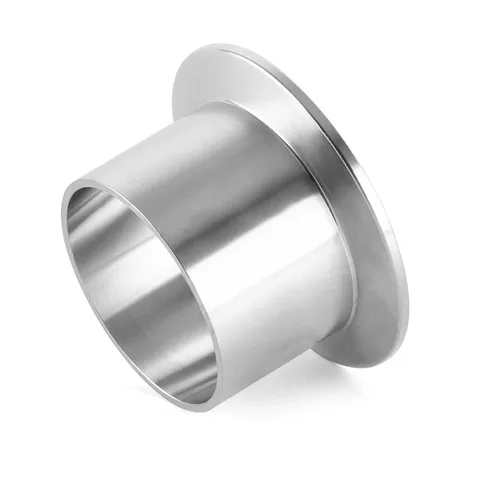

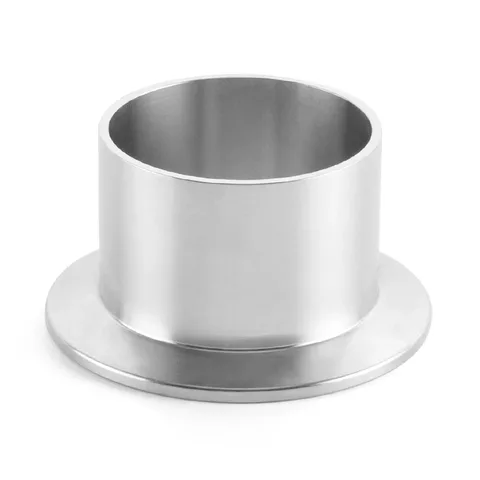

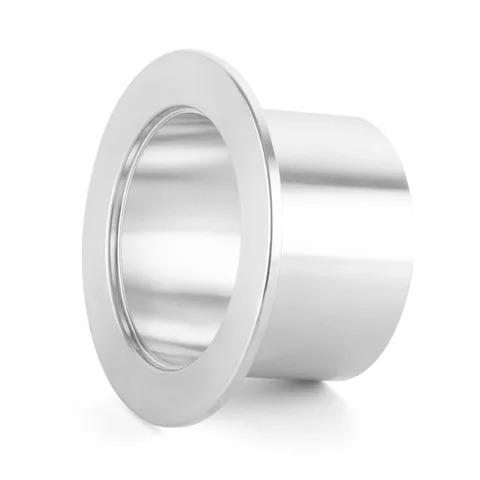

The flange end forms the detachable vacuum interface; the tubular end forms the weld section. It is a flange stub rather than a complete clamp-and-seal joint.
Prepare your enquiry
End connections · Size range · Material · Seal or gasket · Service fluid · Operating conditions · Quantity
Technical specifications
Materials & seals
- Material Options
- SS304, SS316L
Need a different size, connection or document?
Discuss your requirements
