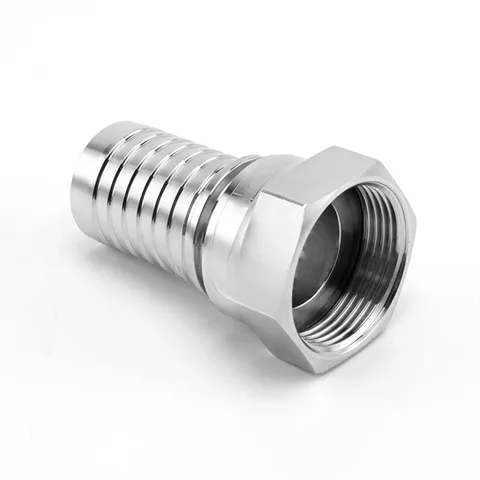

Female-JIC Hydraulic Hose Fitting
The female JIC hose adapter combines a nut-style connection end with a barbed hose end.
Material | SS304, SS316L |
|---|---|
Specification | 1"-6" |
Product overview
Product structure

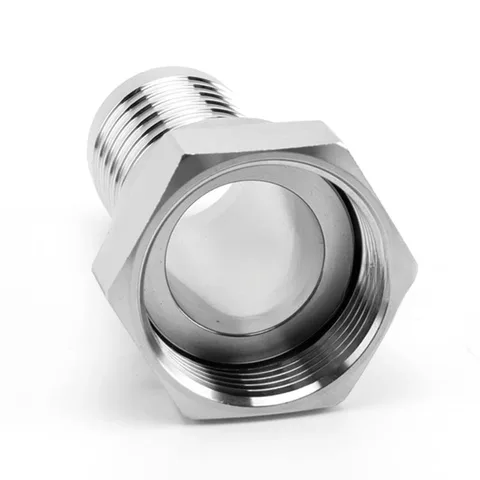

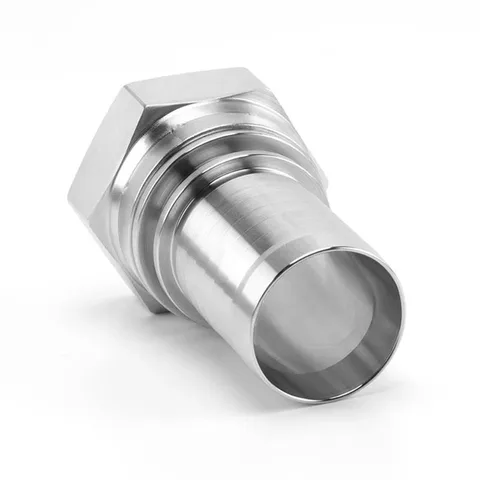

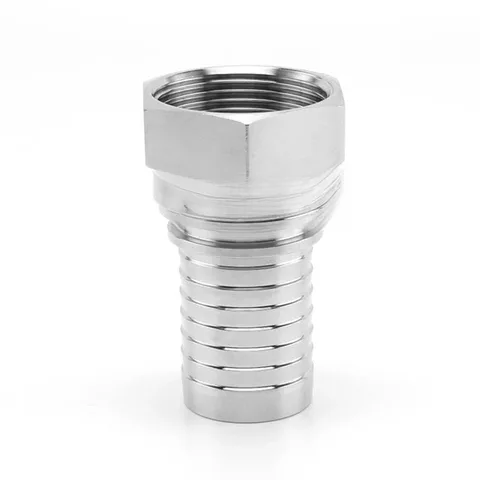

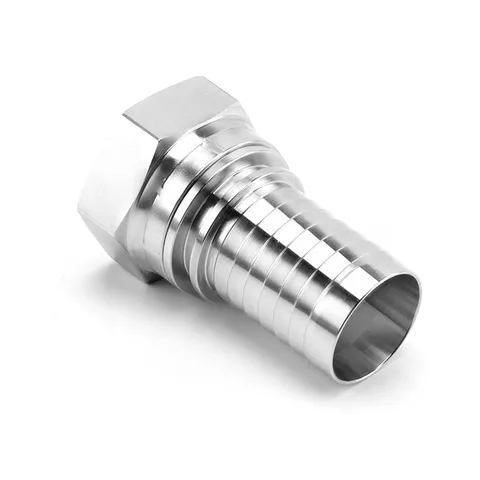

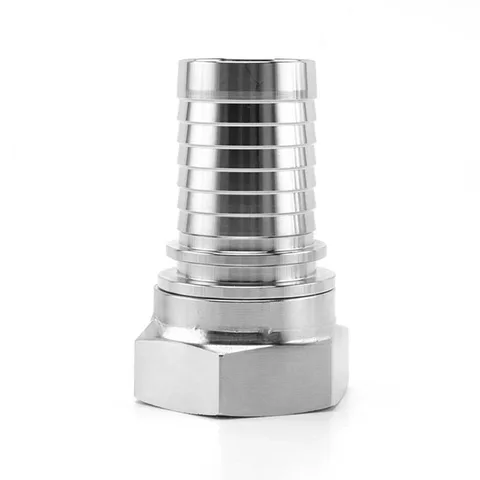

A female JIC hydraulic hose fitting with a hex nut and hose tail. Confirm the mating JIC interface, thread dimensions and hose assembly requirements.
Selection checks
- Connection form at each end
- Diameter, thread or ferrule dimensions
- Sealing method and assembly clearance
Prepare your enquiry
End connections · Size range · Material · Seal or gasket · Service fluid · Operating conditions · Quantity
Technical specifications
Materials & seals
- Material Options
- SS304, SS316L
Product series
- Pressure range
- 16 bar (Product series)
Need a different size, connection or document?
Discuss your requirements
