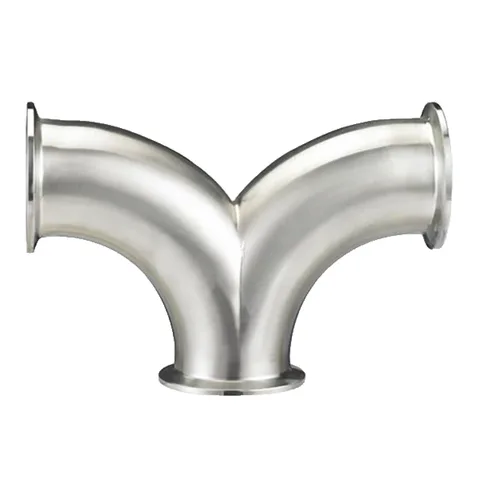

Tri-Clamp Double Bend
The clamp double elbow combines two curved branches and a common port with three ferrule connections.
Material | SS304 SS316L |
|---|---|
Connection | Clamp |
Specification | 1''-4'' |
Shape | Round |
Standard or Nonstandard | 3A |
Product overview
Product structure
A three-port double bend with clamp connections. Specify the port orientation, tube dimensions and ferrule profile for each connection.
Selection checks
- Branch layout and angle
- Each end’s diameter and connection

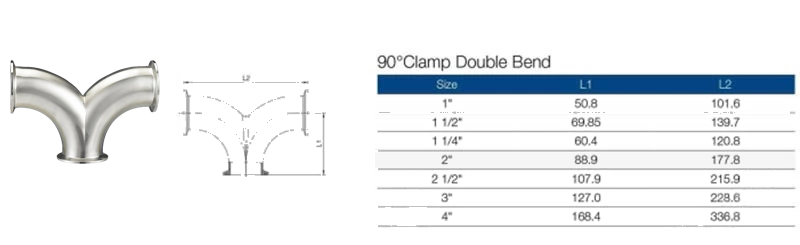

- Installation dimensions and wall thickness
Prepare your enquiry
End connections · Size range · Material · Seal or gasket · Service fluid · Operating conditions · Quantity
Technical specifications
Materials & seals
- Material Options
- SS304 SS316L
- Material Options
- SS304/SS316L
Connections & dimensions
- Connection
- Clamp
Product series
- Media / applications
- Water, Oil (Product series)
- Surface finish options
- mirror polish,matte polish (Product series)
- Interface standard options
- 3A/SMS/DIN/ISO/IDF (Product series)
Need a different size, connection or document?
Discuss your requirements
