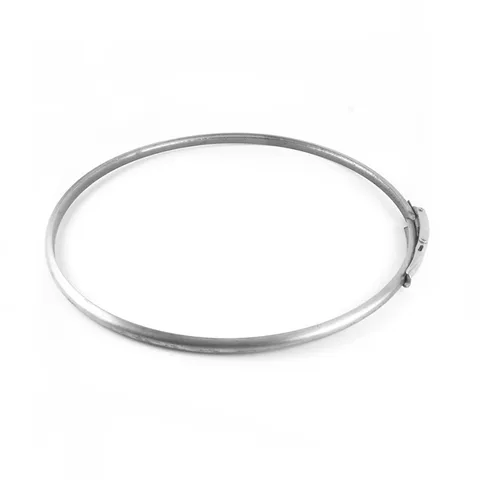

Round Pipe Clamp

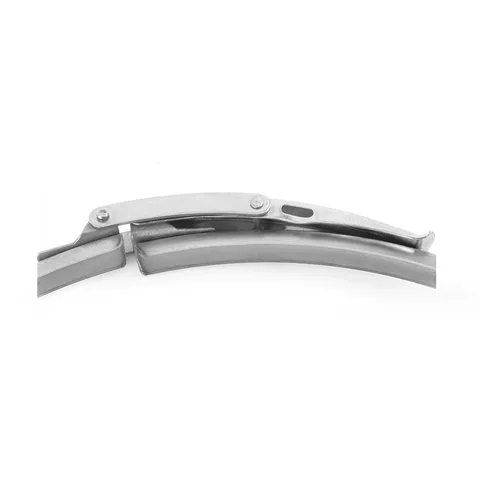

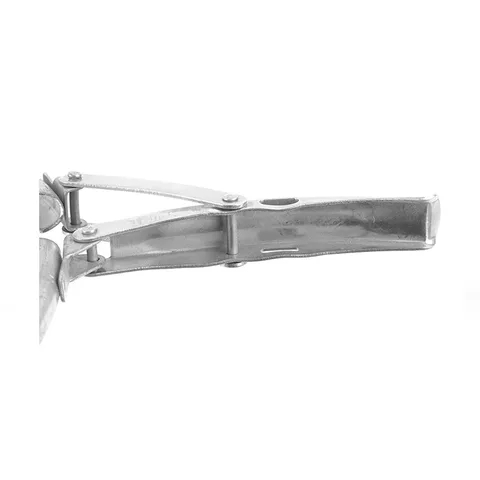

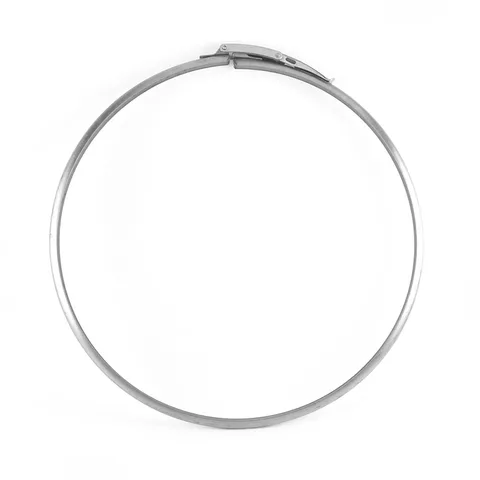

The round pipe clamp has a narrow circular body that surrounds the outside of a pipe and closes through fastening components at its opening.
Model | CP-13MHH |
|---|---|
Material | SS304, SS316L |
Connection | Clamp |
Specification | 1/2"-12", DN10-DN300 |
Shape | Round |
Standard or Nonstandard | 3A, DIN, SMS |
Product overview
Product structure
The circular band fits around the pipe exterior. Its role is pipe retention, rather than forming a fluid-wetted ferrule connection.
Round Pipe Clamp. A clamp secures a mating joint. Select the clamp together with the flange or ferrule profile and the rest of the connection assembly.
Selection checks
- Mating flange outside diameter and profile
- Clamp construction and available installation clearance
- Separate gasket or centring components required by the joint
Prepare your enquiry
End connections · Size range · Material · Seal or gasket · Service fluid · Operating conditions · Quantity
Technical specifications
Connections & dimensions
- Connection
- Clamp
Need a different size, connection or document?
Discuss your requirements
