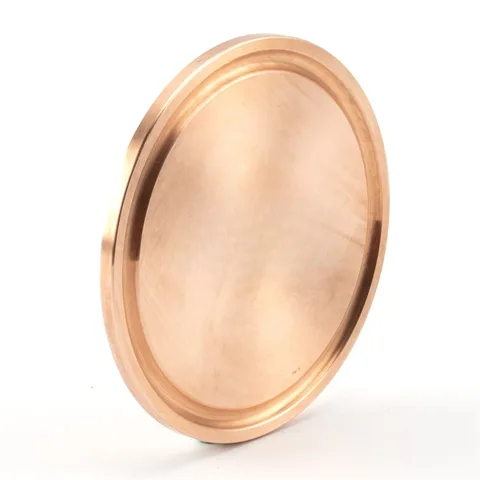

Brass Tri-Clamp Blind Cap
The brass clamp blind cap covers a mating ferrule opening with a closed face.
Connection | Clamped |
|---|
Product overview
Product structure
A brass clamp blind cap for closing a matching ferrule connection. Confirm the mating flange diameter and the separate clamp and gasket requirements.
Selection checks
- Mating connection and diameter
- Closure geometry and available space
- Separate clamp, fasteners or seal requirements
Prepare your enquiry
End connections · Size range · Material · Seal or gasket · Service fluid · Operating conditions · Quantity
Technical specifications
Materials & seals
- Material Options
- Brass
Product series
- Interface standard options
- 3A,DIN,SMS,ISO (Product series)

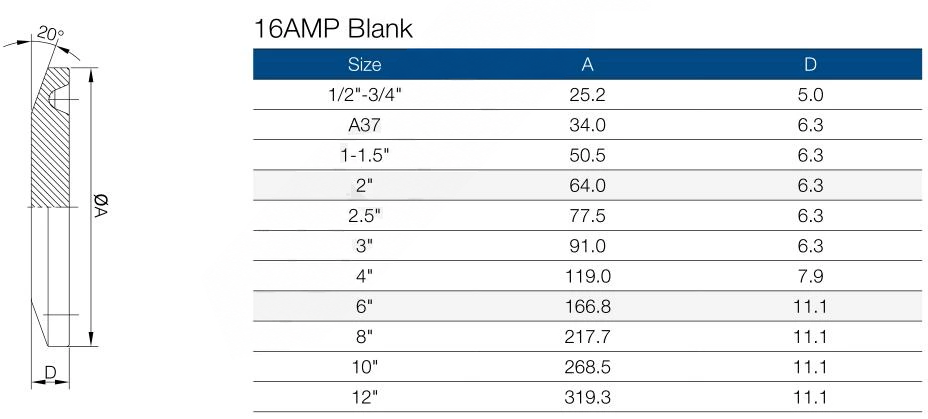

Dimension data and symbol key
Dimension series table
For the structure series and interfaces listed in this table; dimension symbols follow the corresponding diagram.
The table does not label a common unit. Values are retained as printed; compare them with the accompanying drawing.
Size | A | D |
|---|---|---|
1/2"-3/4" | 25.2 | 5.0 |
A37 | 34.0 | 6.3 |
1-1.5" | 50.5 | 6.3 |
2" | 64.0 | 6.3 |
2.5" | 77.5 | 6.3 |
3" | 91.0 | 6.3 |
4" | 119.0 | 7.9 |
6" | 166.8 | 11.1 |
8" | 217.7 | 11.1 |
10" | 268.5 | 11.1 |
12" | 319.3 | 11.1 |
