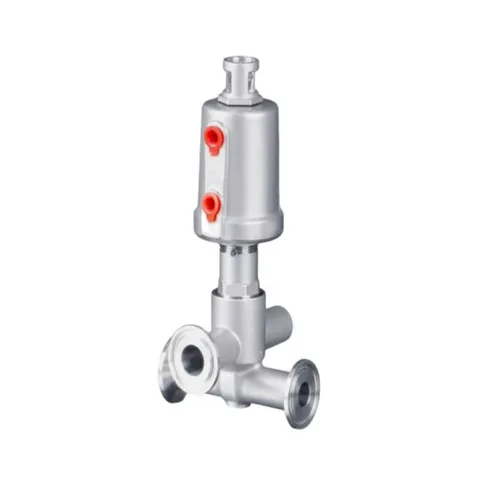

Modular Pneumatic Valve Assembly
The pneumatic modular valve system combines valve units with pipe interfaces in multiple directions to build different fluid-line layouts.
Material | SS304, SS316 |
|---|---|
Connection | Clamp |
Actuation | Pneumatic |
Shape | Three Way |
Product overview
Product structure
The modular arrangement combines valve units in one assembly. Module interfaces and external pipe connections serve different roles in the layout.
Modular Pneumatic Valve Assembly. An angle seat valve has an inclined valve body and an operating assembly. Match the stated operating principle and control interface to the installation.
Selection checks
- Flow direction and operating principle
- Control mode and pneumatic interface
- Seat, seals and end connections
Prepare your enquiry
End connections · Size range · Material · Seal or gasket · Service fluid · Operating conditions · Quantity
Technical specifications
Materials & seals
- Material Options
- SS304, SS316
- Body Material Options
- 304, 316, 316L.
- Spool Material Options
- 304, 316, 316L.
- Cylinder Material Options
- stainless steel, polyamide.
Construction & finish
- Actuation
- Pneumatic
Product series
- Control modes
- normally close, normally open, double acting. (Product series)
- Actuator housing options
- stainless steel, polyamide. (Series actuator)
- Pneumatic accessory options
- limit switch, positioner, solenoid valve, filter relief-pressure valve, manual operating device. (Series accessory options)
- Seal configurations and media temperature
- PTFE:-30~+180 F46:-30~+220 °C (Seal materials and configurations)
- Ambient temperature
- -30~+80 °C (Product series)
- Nominal pressure
- 1.0~1.6 MPa (Product series)
- Spool material
- 304, 316, 316L. (Series spool)
- Seal material
- PTFE,F46. (Seal materials and configurations)
