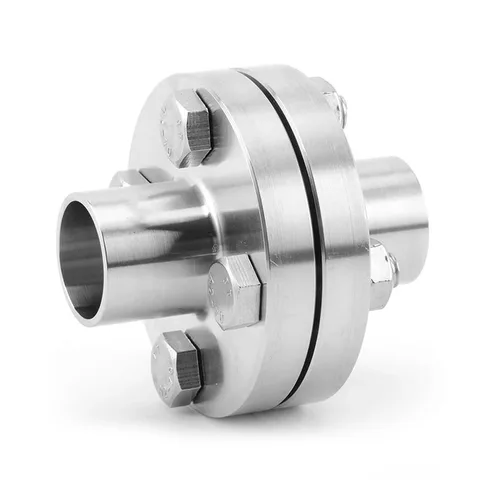

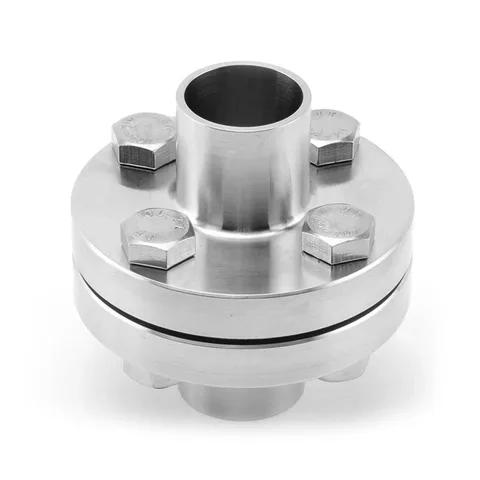

DIN 11864-2 Aseptic Flange Connection Assembly

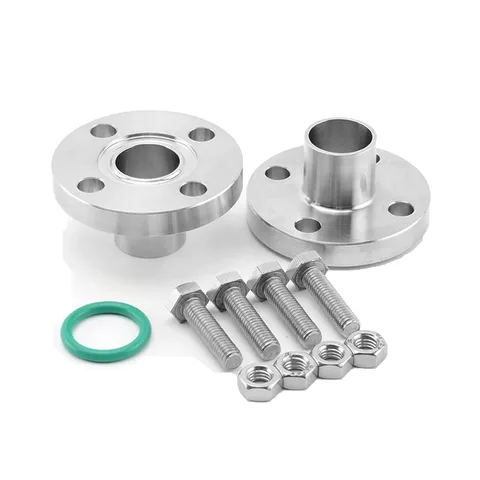

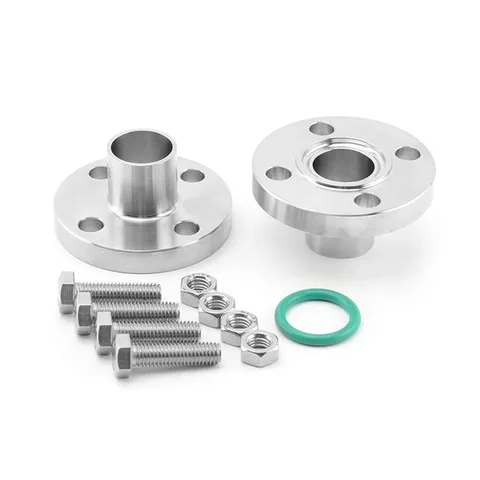

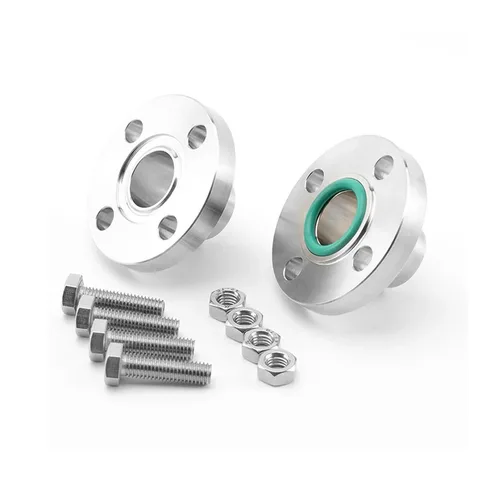

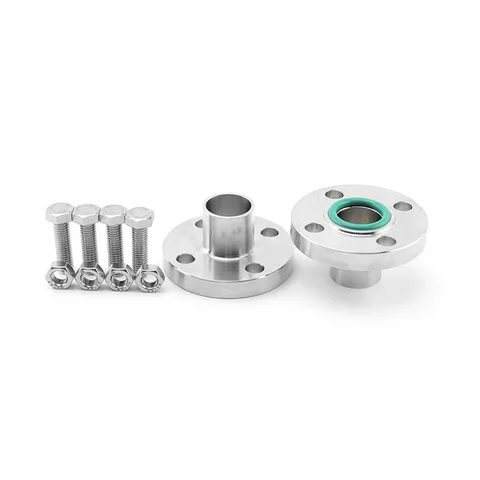

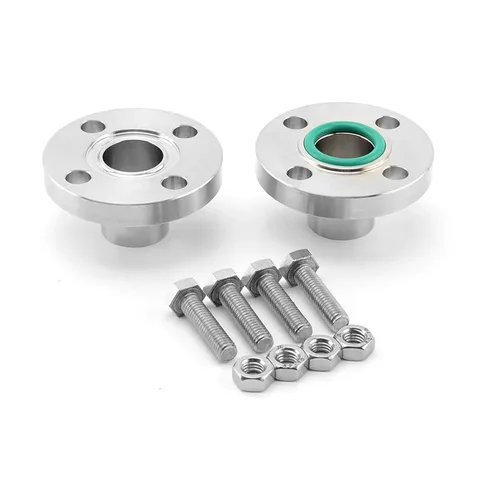

The DIN 11864-2 flange connection assembly combines mating flanges, a sealing ring and connecting fasteners.
Material | SS316L |
|---|---|
Specification | DN10-DN100 |
Standard or Nonstandard | Standard |
Product overview
Product structure
A DIN 11864-2 flange connection assembly with mating connection components. Specify the complete joint, sealing arrangement and tube dimensions from the assembly drawing.
Selection checks
- Mating union standard and end sizes
- Nut and sealing components
- Assembly and maintenance clearance
Prepare your enquiry
End connections · Size range · Material · Seal or gasket · Service fluid · Operating conditions · Quantity
Technical specifications
Materials & seals
- Material Options
- SS316L
Need a different size, connection or document?
Discuss your requirements
