Valve Actuator Bracket

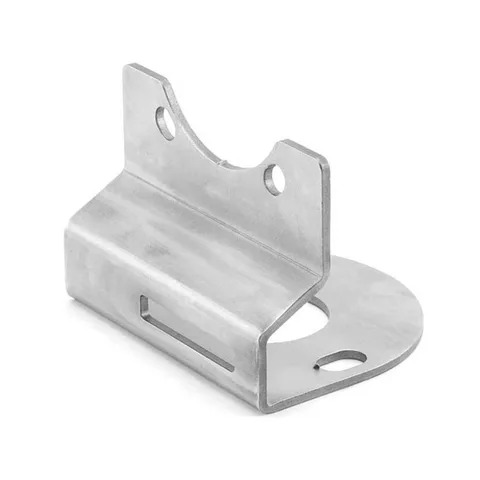

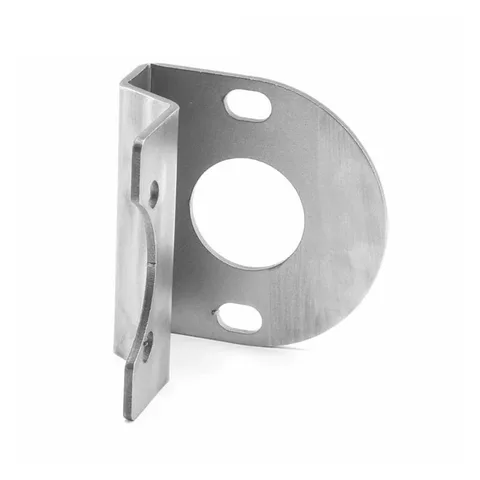

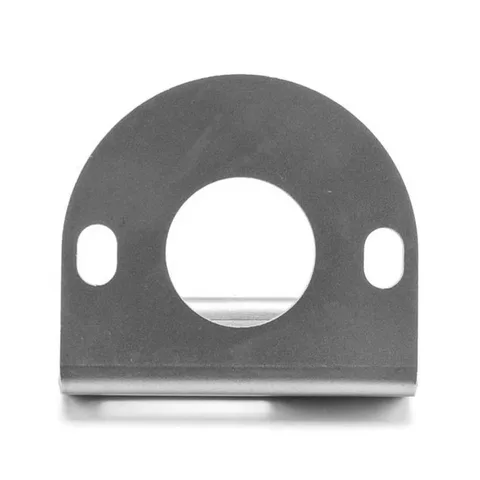

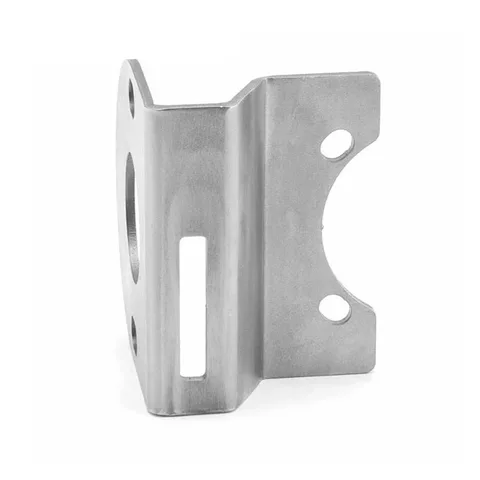

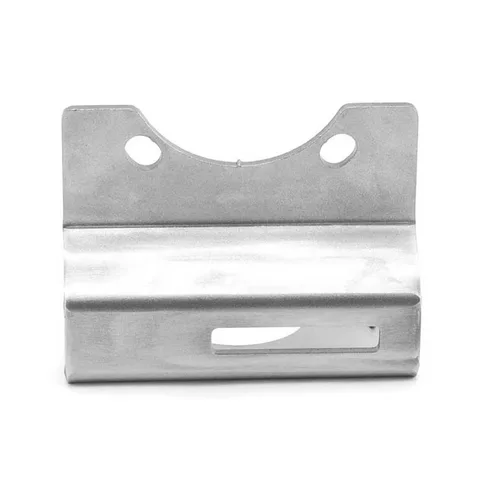

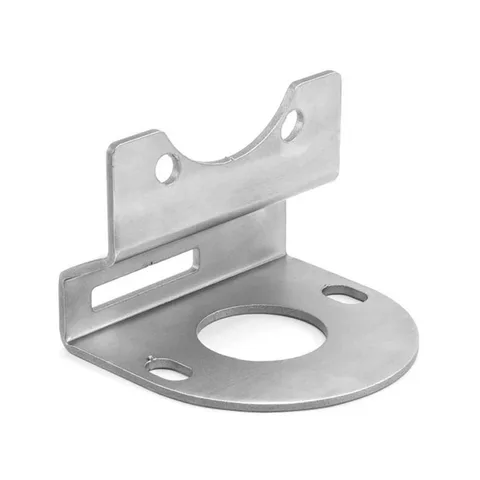

The valve actuator bracket uses a bent metal structure with two mounting faces for a mating actuator and valve mounting position.
Material | SS304/SS316L |
|---|---|
Specification | DN25-DN250, 1"-10" |
Product overview
Product structure
The bracket locates the actuator above the valve operating interface. Mounting-hole geometry and shaft clearance determine the mechanical fit.
A valve actuator bracket listed for data-center cooling, liquid cooling and energy-storage cooling.
Selection checks
- Mating valve model and interface
- Mounting dimensions and operating function
- Required connections and installation space
Prepare your enquiry
End connections · Size range · Material · Seal or gasket · Service fluid · Operating conditions · Quantity
Technical specifications
Materials & seals
- Material Options
- SS304/SS316L
Need a different size, connection or document?
Discuss your requirements
