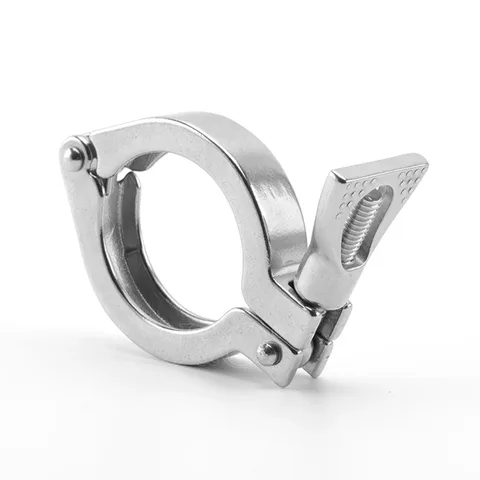

Stainless Steel KF Single-Pin Clamp

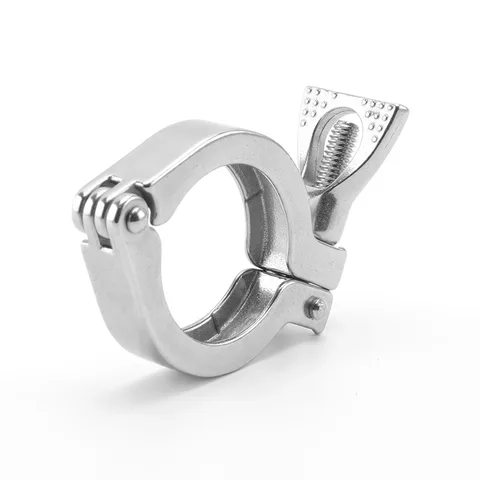

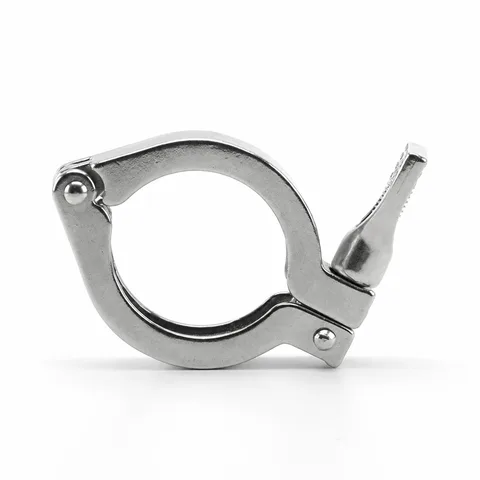

A single pin joins the two circular body halves of this stainless steel KF clamp, with a wing nut closing the opposite end.
Material | SS304 |
|---|
Product overview
Product structure
This KF clamp uses hinged clamp sections around the mating vacuum flanges. The clamp hardware is distinct from the flanges and centering or sealing components of the joint.
Prepare your enquiry
End connections · Size range · Material · Seal or gasket · Service fluid · Operating conditions · Quantity
Technical specifications
Dimension data and symbol key
Dimension series table
For the structure series and interfaces listed in this table; dimension symbols follow the corresponding diagram.
The table does not label a common unit. Values are retained as printed; compare them with the accompanying drawing.
Size | A | B | C |
|---|---|---|---|
KF-16 | 43 | 64 | 16 |
KF-25 | 54 | 75 | 16 |
KF-40 | 70 | 95 | 16 |
KF-50 | 90 | 123 | 19 |
