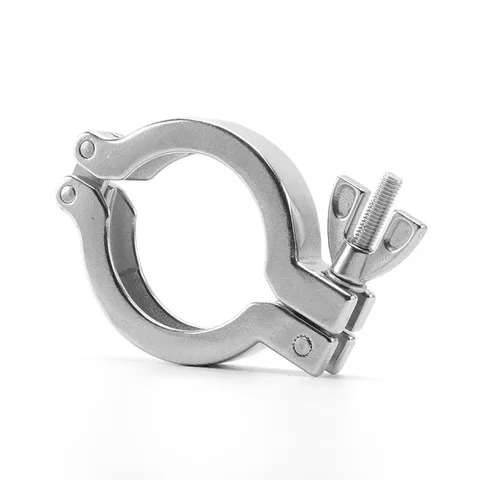

Stainless Steel KF Double-Pin Clamp

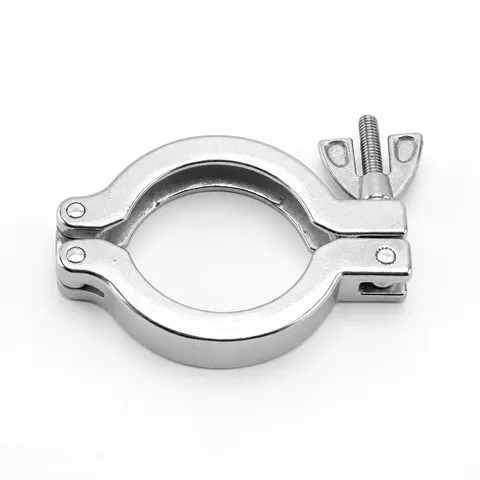

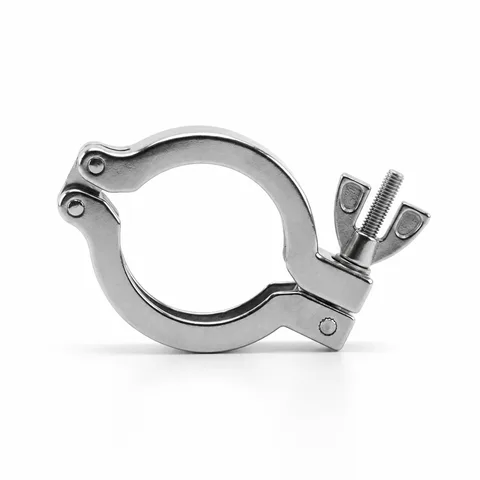

The stainless steel double-pin KF clamp has a two-pin hinge and wing-nut closure, with its two halves surrounding the mating flange profiles.
Material | SS304 |
|---|
Product overview
Product structure
This KF clamp uses hinged clamp sections around the mating vacuum flanges. The clamp hardware is distinct from the flanges and centering or sealing components of the joint.
Prepare your enquiry
End connections · Size range · Material · Seal or gasket · Service fluid · Operating conditions · Quantity
Technical specifications
Dimension data and symbol key
Dimension series table
For the structure series and interfaces listed in this table; dimension symbols follow the corresponding diagram.
The table does not label a common unit. Values are retained as printed; compare them with the accompanying drawing.
Size | A | B | C |
|---|---|---|---|
KF-10 | 57 | 62 | 21 |
KF-16 | 43 | 64 | 16 |
KF-25 | 53 | 76.7 | 16 |
KF-40 | 69 | 94.3 | 16 |
KF-50 | 90 | 121 | 19 |
