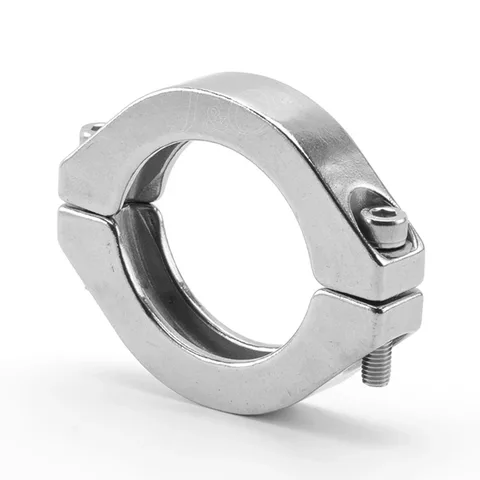

KF Two-Piece Bolted Vacuum Clamp

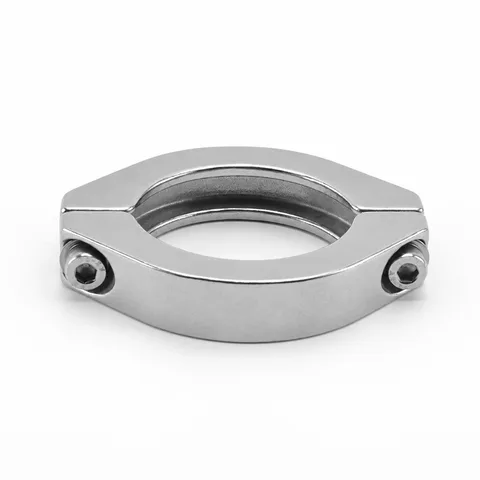

The two-piece KF clamp connects its split circular body through bolts on both sides, surrounding the mating flange profiles.
Material | SS304 |
|---|
Product overview
Product structure
This KF clamp uses a bolted closure around the mating vacuum flanges. The clamp hardware is distinct from the flanges and centering or sealing components of the joint.
Prepare your enquiry
End connections · Size range · Material · Seal or gasket · Service fluid · Operating conditions · Quantity
Technical specifications
Dimension data and symbol key
Dimension series table
For the structure series and interfaces listed in this table; dimension symbols follow the corresponding diagram.
The table does not label a common unit. Values are retained as printed; compare them with the accompanying drawing.
Size | A | B | C |
|---|---|---|---|
KF16 | 56 | 44 | 18 |
KF25 | 67 | 54 | 18 |
KF40 | 85 | 68 | 18 |
KF50 | 113 | 91 | 21 |
