Aluminum KF Clamp

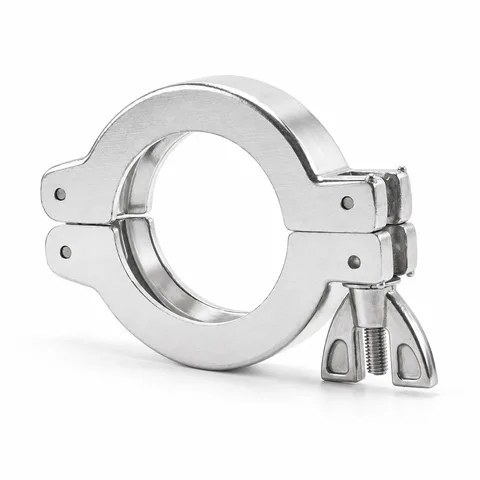

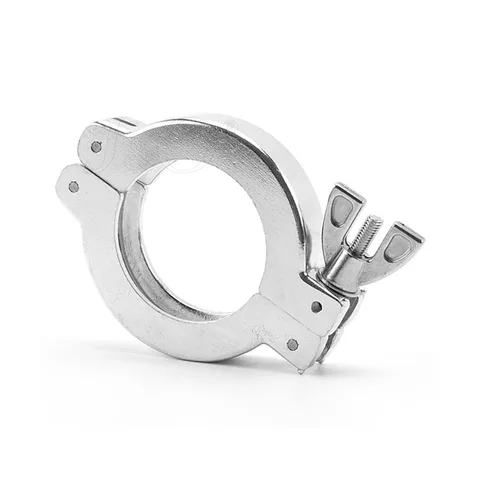

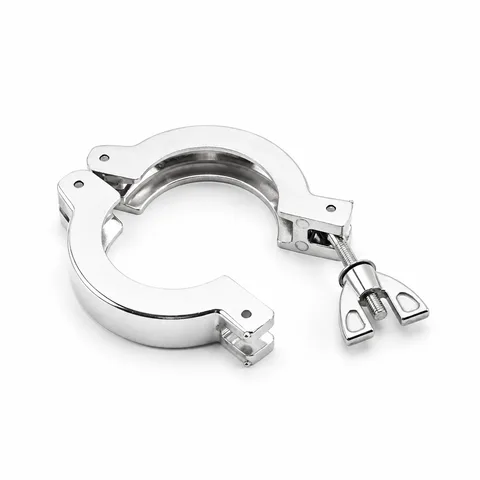

The aluminum KF clamp uses a hinged circular body and a wing-nut closure around mating KF flanges.
Material | Aluminum |
|---|
Product overview
Product structure
This KF clamp uses a locking closure around the mating vacuum flanges. The clamp hardware is distinct from the flanges and centering or sealing components of the joint.
Prepare your enquiry
End connections · Size range · Material · Seal or gasket · Service fluid · Operating conditions · Quantity
Technical specifications
Dimension data and symbol key
Dimension series table
For the structure series and interfaces listed in this table; dimension symbols follow the corresponding diagram.
The table does not label a common unit. Values are retained as printed; compare them with the accompanying drawing.
Size | A | B | C |
|---|---|---|---|
KF-10 | 57 | 62 | 21 |
KF-16 | 57 | 62 | 21 |
KF-25 | 62 | 72 | 31 |
KF-40 | 72 | 91 | 46 |
KF-50 | 94 | 106 | 61 |
