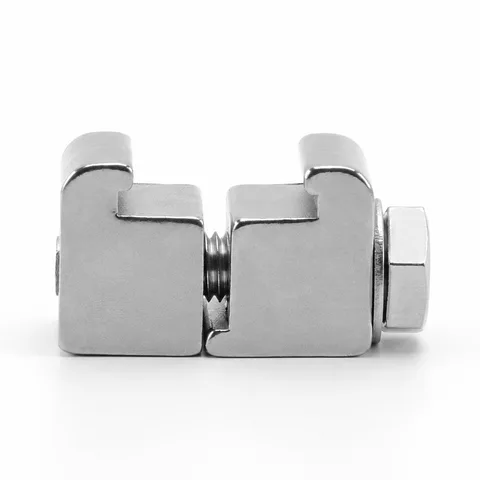

ISO Double-Wall / Double-Claw Series — product view

ISO Double-Wall / Double-Claw Series

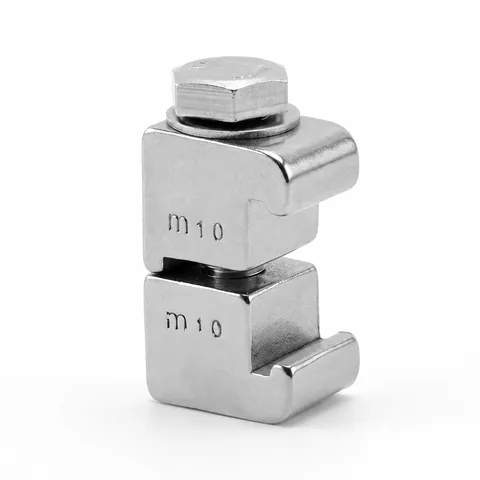

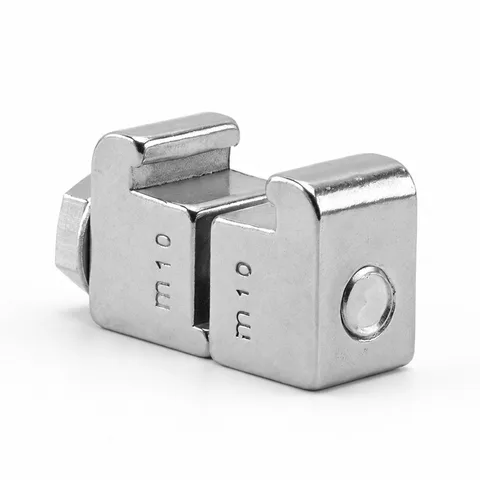

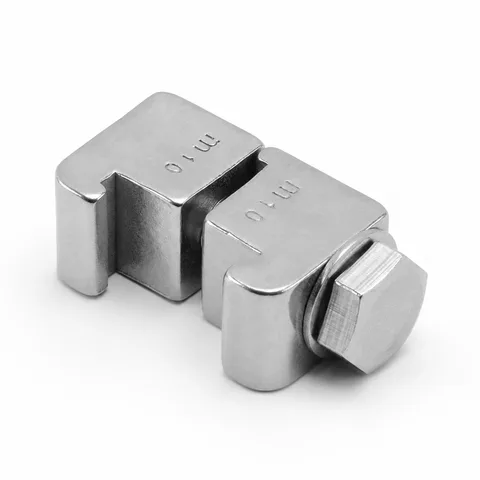

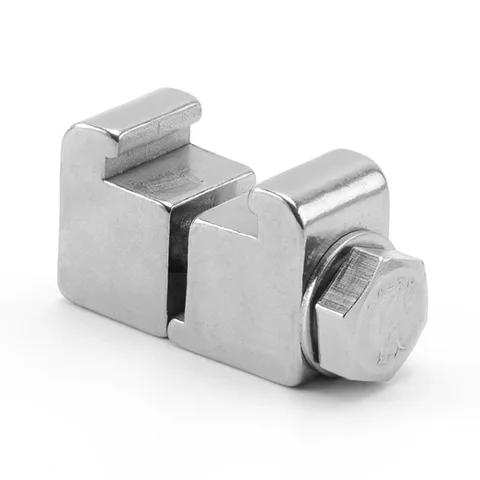

The ISO double-wall / double-claw series has opposed clamping blocks and a central fastening bolt.

Material

SS304/Aluminum

Connection

Clamp

Request a quote View specifications

Vacuum clamping construction

ISO Double-Wall / Double-Claw Series: The ISO double-wall / double-claw series has opposed clamping blocks and a central fastening bolt.

ISO flange fastening

ISO-K connections use clamp fasteners, while ISO-F connections use nuts and bolts. In the illustrated clamp connection, the claws engage behind the flange edges and the threaded fastener draws the faces together. A separate centring ring and O-ring sit between the flange faces.

Need a different size, connection or document?

Discuss your requirements
LET’S TALK ABOUT YOUR PROJECT

Discuss your product requirements

Share the size, connection, quantity and delivery country. Include any specific requirements for this product.

Send an enquiry

Tell us what you need. Fields marked * are required.

For: ISO Double-Wall / Double-Claw Series

Drawings or BOM? Submit this form, then send files by email.
