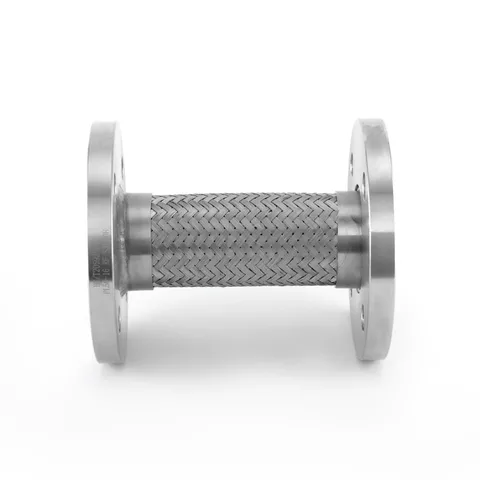

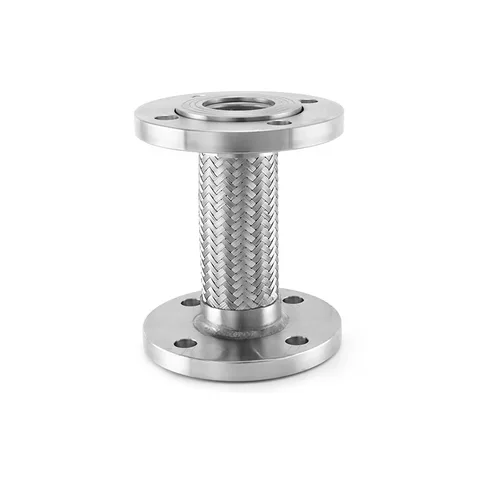

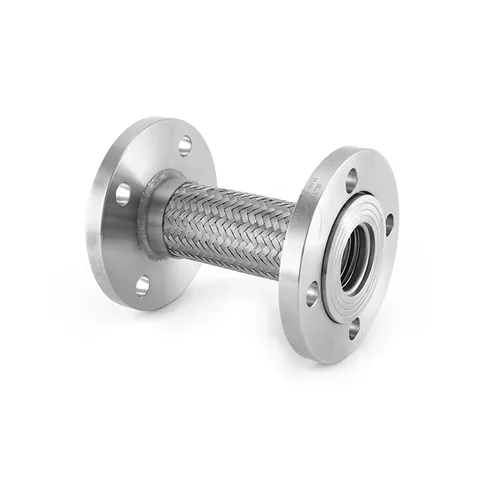

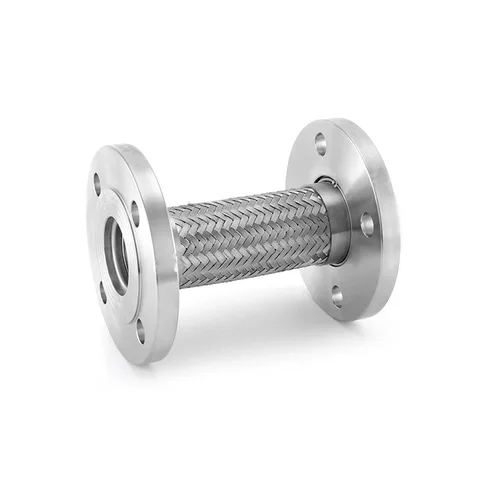

Flange-End Braided Flexible Hose
The flange-end braided hose combines a metal corrugated inner tube and outer braid, with flanges connecting the mating piping.
Material | SS304, SS316L |
|---|---|
Connection | Tri-Clamp |
Specification | 1/2"-8", DN15-DN200 |
Product overview
Product structure
A braided bellows hose with flanged ends. Specify the flange profile, bolt pattern and overall hose length for the required installation.
Selection checks
- End fitting and hose dimensions
- Overall length and routing envelope
- Service medium and required movement
Prepare your enquiry
End connections · Size range · Material · Seal or gasket · Service fluid · Operating conditions · Quantity
Technical specifications
Materials & seals
- Material Options
- SS304, SS316L
- Hose Material Options
- SS304/SS316L
Connections & dimensions
- Connection
- Flange
Need a different size, connection or document?
Discuss your requirements
