13SF Double-Pin Clamp

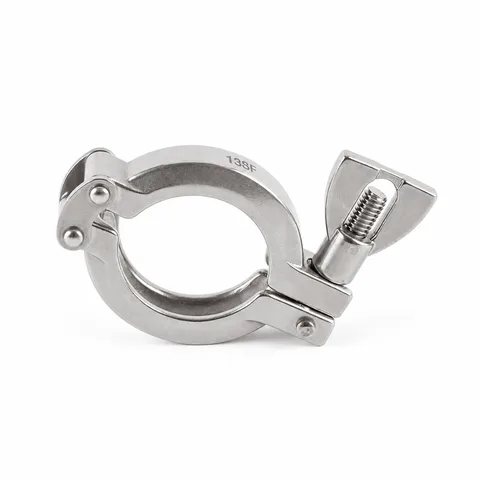

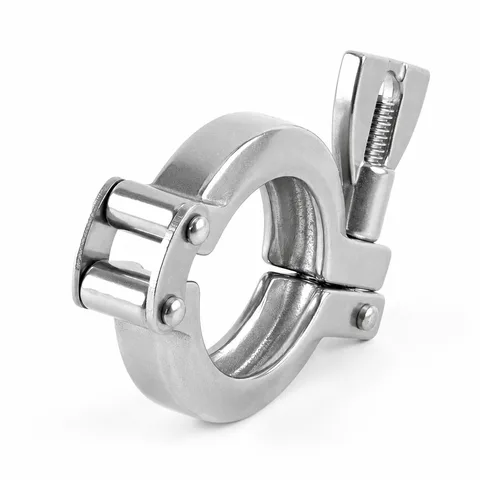

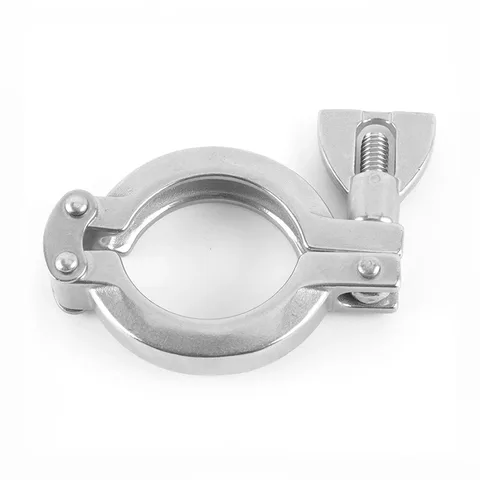

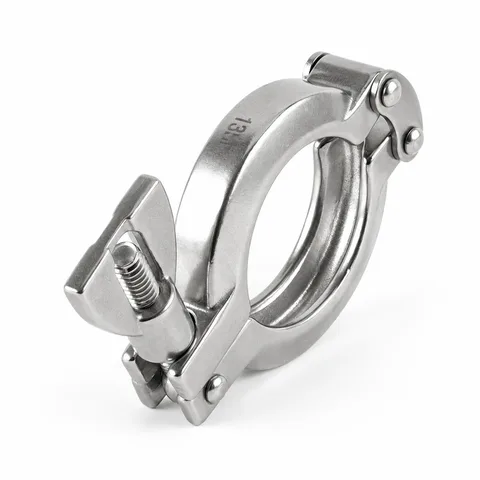

The 13SF double-pin clamp retains its illustrated hinged segments and manual-fastener arrangement.
Material | SS304, SS316L |
|---|---|
Connection | Clamp |
Specification | 1/2"-12" or DN10-DN300 |
Shape | Round |
Product overview
Hygienic Clamp Construction
13SF Double-Pin Clamp: The 13SF double-pin clamp retains its illustrated hinged segments and manual-fastener arrangement.
Technical specifications
Product series
- Clamping interface
- Tri-Clamp (Product series)
- Connection
- Tri Clamp (Connection of this fitting; match the ferrule and seal to the selected dimensional standard.)
Construction & finish
- Manufacturing process
- CNC Lathe Machine (Body surface and manufacture)
- Surface roughness
- Ra≤0.8 (Body surface and manufacture)
13SF Double-Pin Clamp Dimensional Reference
Applies to the 13SF Double-Pin Clamp series dimensional reference (chart covers 1/2"-3/4"–12", while overview highlights 1/2"-12" or DN10-DN300); verify specific end connection standard and mating line dimensions when ordering.
| SIZE | φA | φB |
|---|---|---|
| 1/2"-3/4" | 20 | 28 |
| A37 | 27.5 | 42.9 |
| 1"-1.5" | 45 | 58.6 |
| 2.0" | 59 | 72 |
| 2.5" | 67 | 84 |
| 3.0" | 85 | 98 |
| 4.0" | 114 | 127 |
| 4 1/2" | 123 | 133.2 |
| 5.0" | 135.5 | 148×5.6 |
| 5.5" | 145 | 159 |
| 6.0" | 155.4 | 170.4×5.6 |
| DN150 | 173 | 187 |
| 8.0" | 206 | 220×5.6 |
| DN200 | 223 | 237 |
| 10" | 258 | 272×5.6 |
| 12" | 307 | 323×5.6 |
