13MHH Single-Pin Clamp

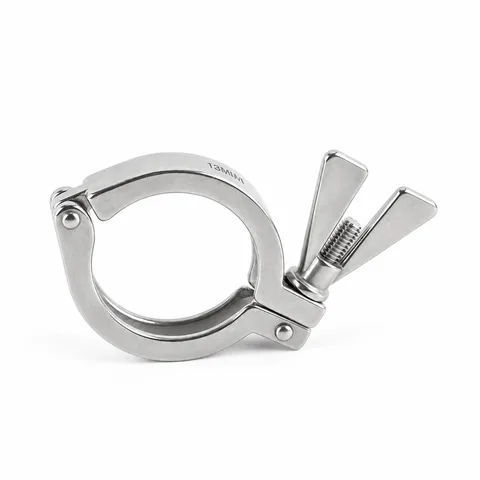

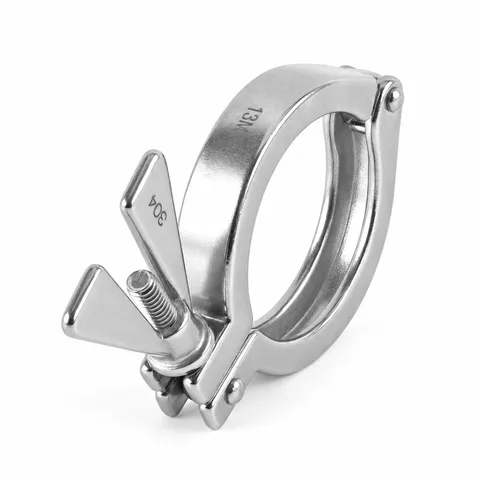

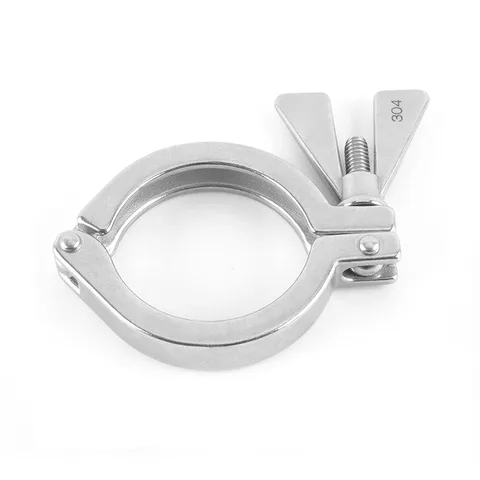

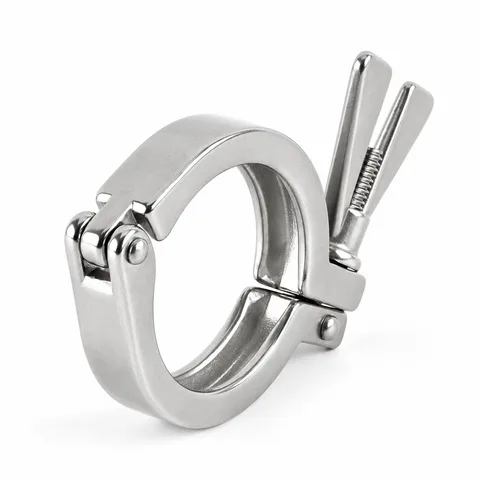

The 13MHH single-pin clamp has a hinged ring and a wing-type manual closure.
Material | SS304, SS316L |
|---|---|
Connection | Clamp |
Specification | 1/2"-12" or DN10-DN300 |
Shape | Round |
Product overview
Hygienic Clamp Construction
13MHH Single-Pin Clamp: The 13MHH single-pin clamp has a hinged ring and a wing-type manual closure.
Technical specifications
Product series
- Clamping interface
- Tri-Clamp (Product series)
- Connection
- Tri Clamp (Connection of this fitting; match the ferrule and seal to the selected dimensional standard.)
Construction & finish
- Manufacturing process
- CNC Lathe Machine (Body surface and manufacture)
- Surface roughness
- Ra≤0.8 (Body surface and manufacture)
Single pin clamp 13 MHH
Applies to the 13MHH Single-Pin Clamp series dimensional reference (chart covers A37–12", while overview highlights 1/2"-12" or DN10-DN300); verify specific end connection standard and mating line dimensions when ordering.
| SIZE | ΦA | ΦB |
|---|---|---|
| A37 | 27.8 | 37 |
| 1-1 1/2" | 44.4 | 53.6 |
| 2.0" | 57.8 | 67 |
| 2 1/2" | 71.4 | 80.6 |
| 3.0" | 84 | 94.2 |
| 3 1/2" | 99 | 109.2 |
| 4.0" | 110 | 122.2 |
| 4 1/2" | 123 | 133.2 |
| 5" | 135.5 | 148X3.5 |
| 5" | 135.5 | 148X5.6 |
| 5.5" | 145 | 159 |
| 6.0" | 155.4 | 170.4 |
| DN150 | 173 | 187 |
| 8.0" | 205 | 220 |
| DN200 | 223 | 237 |
| 10" | 258 | 272 |
| 12" | 307 | 323 |
