Weld-End Bellows Compensator

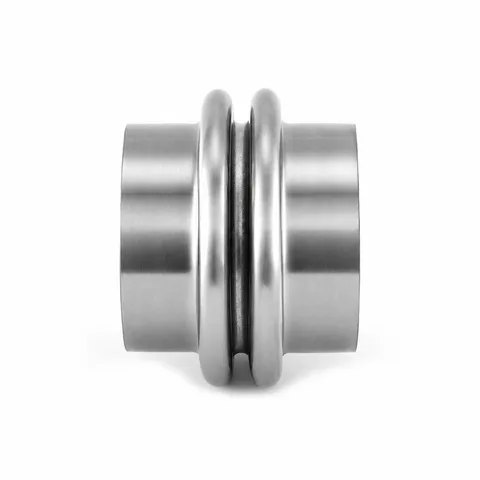

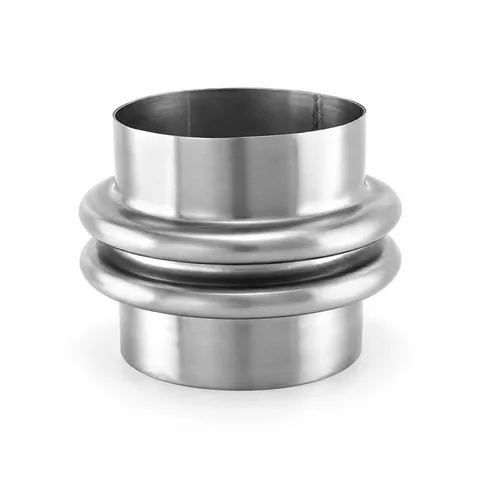

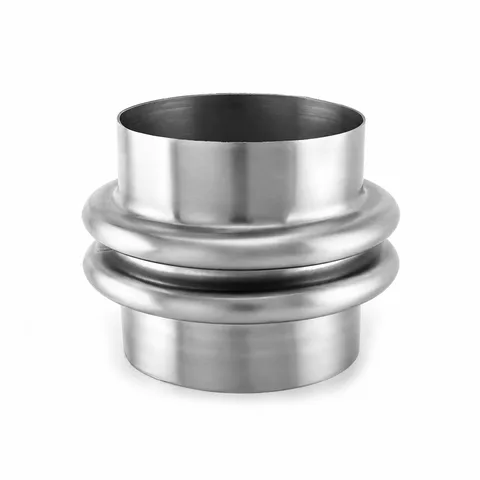

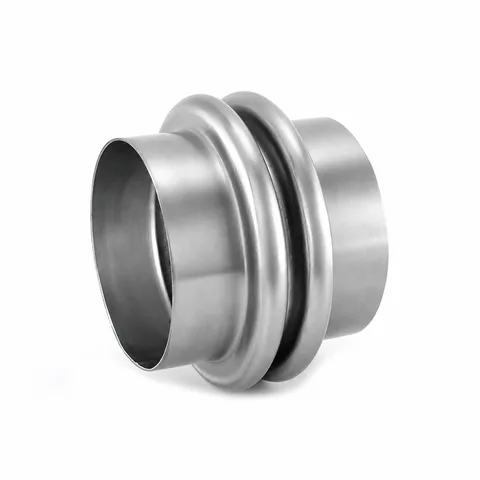

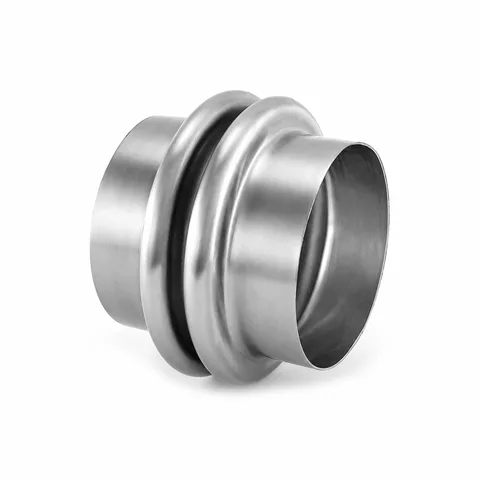

The short weld-end bellows joint places annular convolutions between plain tube ends to form a compact metal piping component.
Material | SS304, SS316L |
|---|---|
Specification | 1/2"-8" |
Connection | Weld ends |
Product overview
Product structure
A short bellows compensator with plain welding ends. Specify the end diameters, installed length and required movement for the pipe assembly.
Selection checks
- End fitting and hose dimensions
- Overall length and routing envelope
- Service medium and required movement
Prepare your enquiry
End connections · Size range · Material · Seal or gasket · Service fluid · Operating conditions · Quantity
Technical specifications
Materials & seals
- Material Options
- SS304, SS316L
- Hose Material Options
- SS304/SS316L
Product series
- Media / applications
- Water, Oil (Product series)
Need a different size, connection or document?
Discuss your requirements
